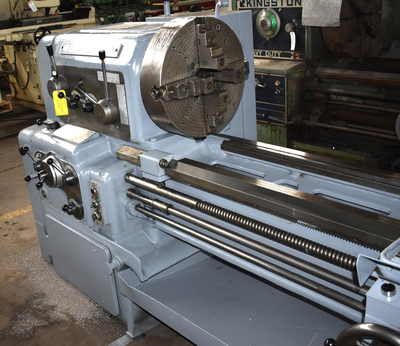

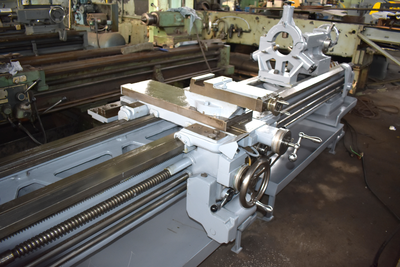

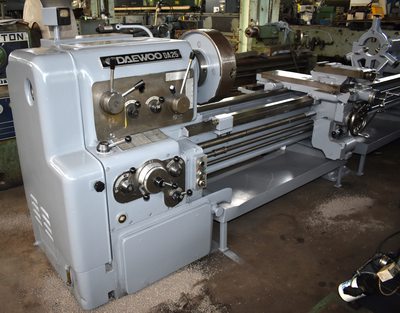

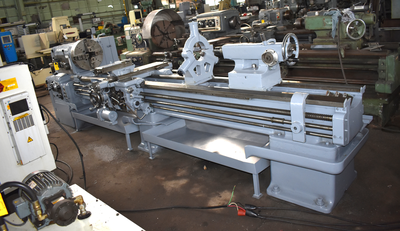

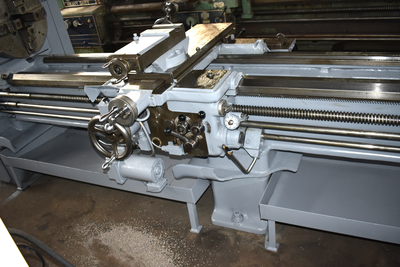

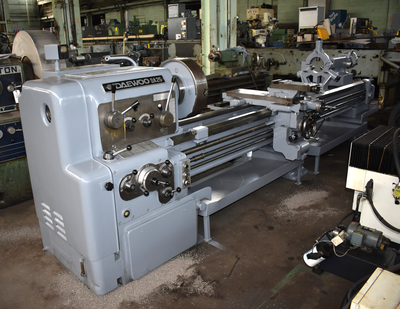

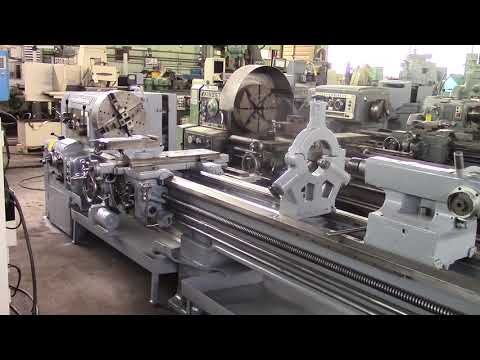

25" x 120" DAEWOO-IKEGAI "DA25" HIGH SPEED PRECISION ENGINE LATHE w/TAPER ATTACHMENT - INCH-METRIC THREADING - 18” 4-JAW CHUCK

Hole Thru Spindle .......... 2.2"

Swing Over Bed Ways, Rated .......... 25"

Swing Over Bed Ways, Actual .......... 24.4"

Swing Over Carriage .......... 15.5"

Distance Between Centers .......... 120"

(20) Spindle Speeds, Range .......... 25 to 2000 RPM

(44) Longitudinal Feeds, Range .......... .0067 to .0957 IPR

(44) Longitudinal Feeds, Range .......... .17 to 2.43 MM/R

(44) Cross Feeds, Range .......... .06 to .83 MM/R

(44) Cross Feeds, Range .......... .0024 tp .0033IPR

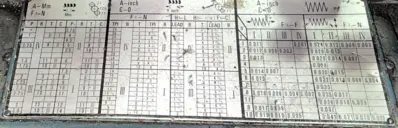

(40) Whitworth Thread Changes, Range .......... 2 to 28 TPI

(55) Metric Thread Changes, Range .......... 1 to 224 MM

(42) Module Thread Change, Range .......... .25 to 56 MM

Lead Screw Pitch .......... 2 THREAD/INCH

Lead Screw Pitch .......... 12 THREAD/MM

Motor Horsepower .......... 15 HP

Electrical System .......... 220-440/3/60

Weight Approximately .......... 10250 LBS

PRICE: F.O.B. OUR WAREHOUSE
Hole Thru Spindle: 2.2"
Swing Over Carriage: 15.5"
Distance Between Centers: 120"
(20) Spindle Speeds, Range: 25 to 2000 RPM
(44) Longitudinal Feeds, Range: 0067 to .0957 IPR
(44) Longitudinal Feeds, Range: 17 to 2.43 MM/R
(44) Cross Feeds, Range: 06 to .83 MM/R
(44) Cross Feeds, Range: 0024 tp .0033IPR
Lead Screw Pitch: 2 THREAD/INCH
Lead Screw Pitch: 12 THREAD/MM
Motor Horsepower: 15 HP
Electrical System: 220-440/3/60
Weight Approximately: 10250 LBS
