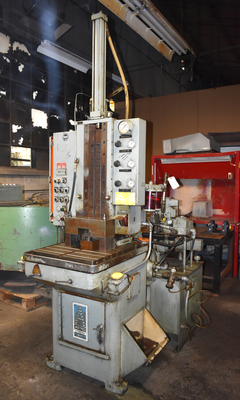

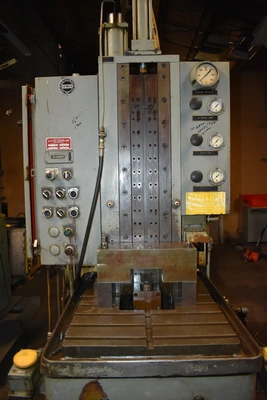

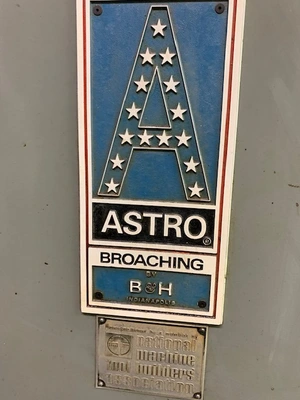

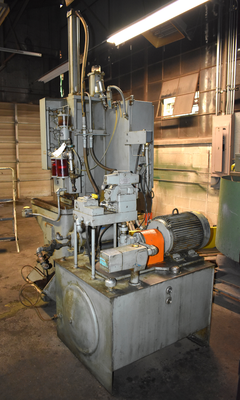

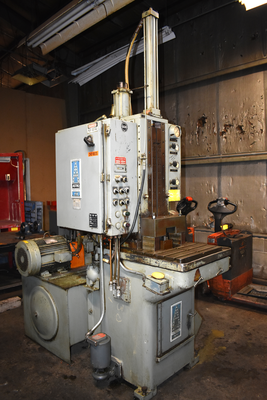

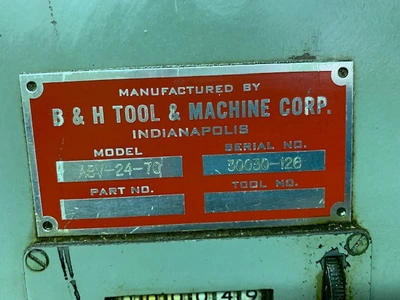

4 TON ASTRO (B&H) "ABV-24-70" VERTICAL HYDRAULIC BROACH w/15 HP VICKERS HYDRAULICS - POWER CLAMPING - 24” STROKE

Tonnage Capacity .......... 4 TONS

Maximum Stroke Length .......... 24"

Ram Travel, Adjustable .......... 2" to 26"

Cutting Speed, Variable .......... 0 to 70 FPM

Return Speed .......... 140 FPM

Slide Width .......... 4"

Slide Length .......... 36"

Oil Reservoir Capacity .......... 80 GALLONS

Coolant Reservoir Capacity .......... 20 GALLONS

Motor Horsepower/RPM 15 HP/1750 RPM

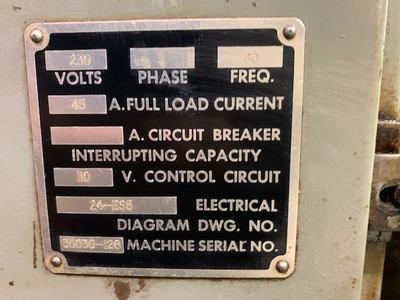

Electrical System 208-230/460/3/60

Overall Dimensions, W x D .......... 3'10" x 5'6"

Overall Height .......... 9'2"

Weight, Approximately .......... 3000 LBS

F.O.B. OUR WAREHOUSE
Tonnage Capacity: 4 TONS
Maximum Stroke Length: 24"
Ram Travel, Adjustable: 2" to 26"
Cutting Speed, Variable: 0 to 70 FPM
Return Speed: 140 FPM
Slide Width: 4"
Slide Length: 36"
Oil Reservoir Capacity: 80 GALLONS
Coolant Reservoir Capacity: 20 GALLONS
Overall Height: 9'2"
Weight, Approximately: 3000 LBS
