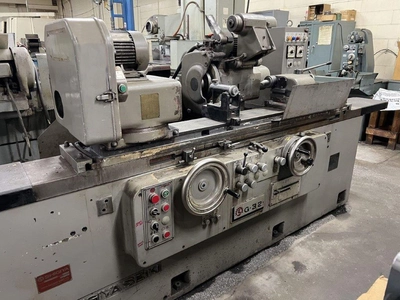

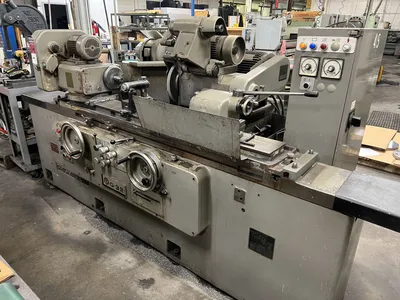

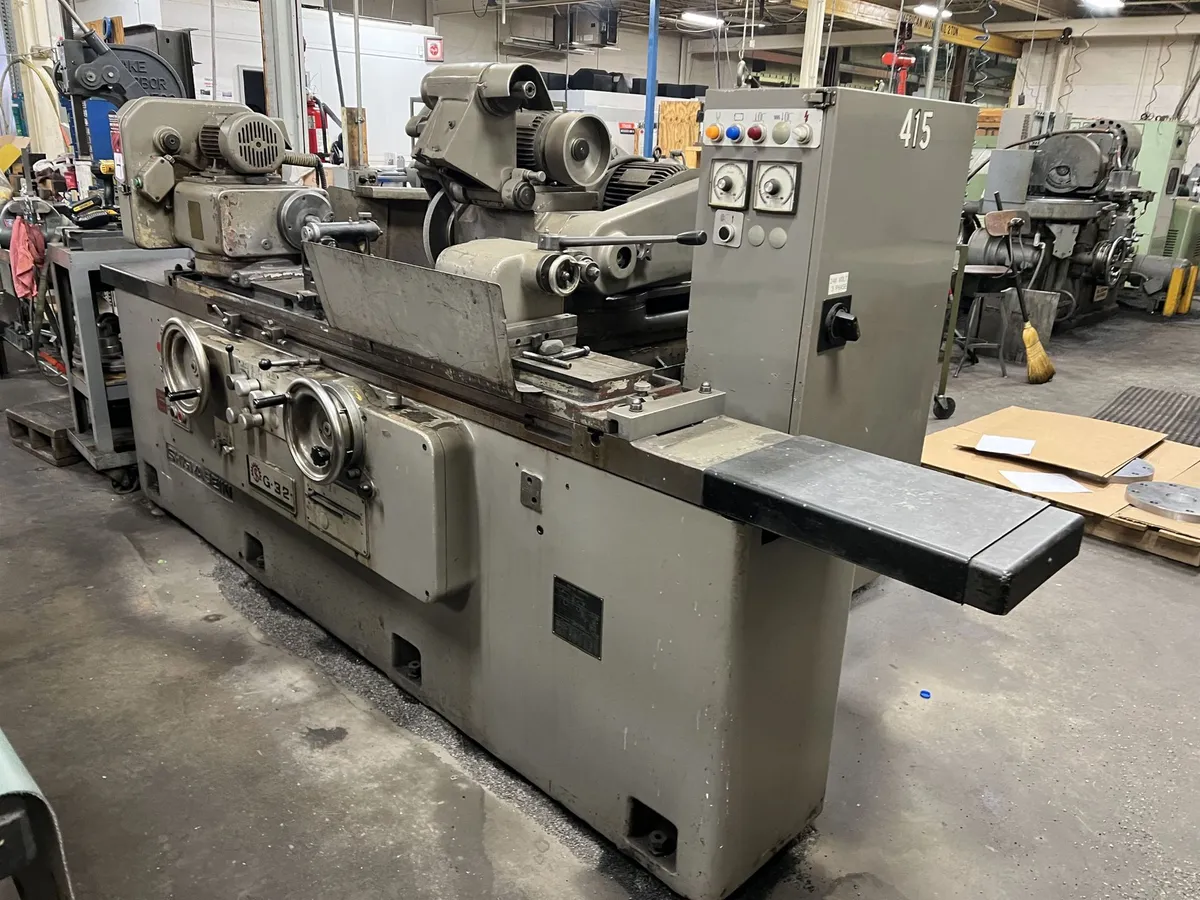

12.6" x 40" SHIGIYA "GUA-32-100" AUTOMATIC HYDRAULIC UNIVERSAL CYLINDRICAL GRINDER w/INTERNAL GRINDING SPINDLE - WHEEL DRESSER

Have one to sell?

sales@mohawkmachinery.com

$17,500.00 USD

ConditionUsed

Quantity

1 available

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (1)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (2)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (3)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (4)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (5)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (6)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (7)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (8)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (9)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (10)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery (11)

SHIGIYA GUA-32-100 Cylindrical Grinders (OD, O.D., Plain, Universal) | Mohawk Machinery

Have one to sell?

Overview

Type:

Cylindrical Grinders (OD, O.D., Plain, Universal)

Manufacturer:

Model:

GUA-32-100

Stock #:

29531

Status:

For Sale

Description

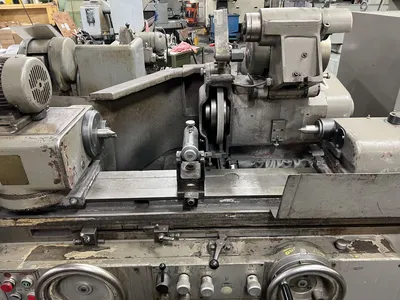

12.6" x 40" SHIGIYA AUTOMATIC INFEED HYDRAULIC

UNIVERSAL CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT

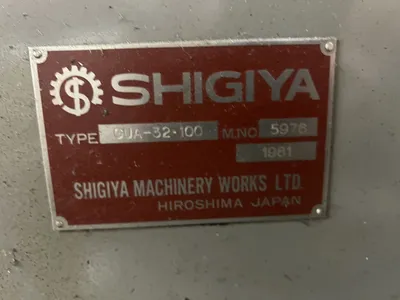

Serial No 5976, Model GUA30-100,

Equipped With

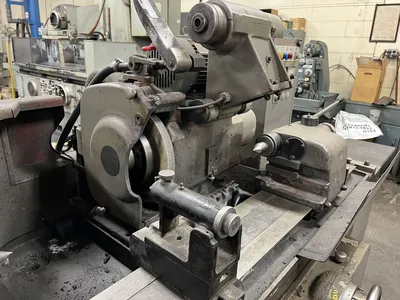

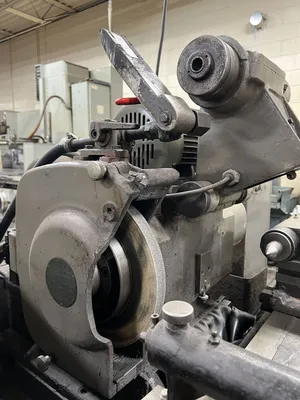

Swing Down Internal Attachment

Automatic Grinding Cycle Including: Rapid Wheel

Approach, Automatic Infeed, Automatic Sizing

Spark-Out And Wheel Rapid Retract, Plunge

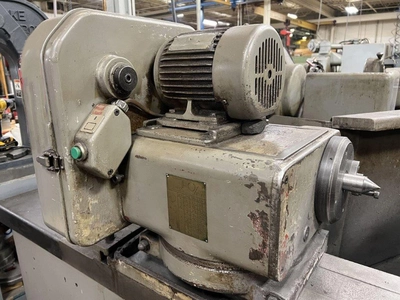

Swivelling Workhead W Live/Dead Spindle

Table Mounted Dresser

Coolant System

Specifications

ImperialMetric

Swing	12.6"	320.04 mm
Centers	40"	1,016 mm
Plain or Angle Head	Plain	Plain
Grinding Wheel Dia.	14"	355.6 mm
Wheel Power	5 hp	3.7 kW
Plunge	Yes	Yes
Dresser	Yes	Yes
Weight	6850	6850

Swing Over Table, Maximum 12.6"

Grinding Diameter, Maximum 11"

Distance Between Centers, Nominal 40"

Max. Workpiece Weight 287 LBS

Grinding Wheel Diameter, Standard 14"

Grinding Wheel Width, Standard 1" to 2"

Grinding Wheel Hole Diameter 5"

Work Table Stroke 46"

Wheelhead Stroke, Maximum 8.66"

Tailstock Spindle Stroke 1.18"

Tailstock Spindle Taper #4MT

Table Swivel Range 10-DEGREES

Workhead Swivel 120 DEGREES

Longitudinal Table Feed, Range .16 to 10 FPM

Workhead Spindle Speeds, Range 20 to 380 RPM

Grinding Wheelhead Spindle Motor 5 HP

Workhead Spindle Motor 0.4 HP

Electrical Requirements 230/460/3/60

Weight, Approximately 6850 LBS

F.O.B. OUR WAREHOUSE
