ALPHA-T14iA FANUC ROBODRILL 4-AXIS CNC DRILLING & TAPPING CENTER w/FANUC 16-iM CNC CONTROL - NIKEN 4th-AXIS ROTARY TABLE - 14-POSITION ATC

Have one to sell?

sales@mohawkmachinery.com

$17,500.00 USD

ConditionUsed

Quantity

1 available

FANUC ALPHA-T14IA Vertical Machining Centers | Mohawk Machinery (1)

FANUC ALPHA-T14IA Vertical Machining Centers | Mohawk Machinery (2)

FANUC ALPHA-T14IA Vertical Machining Centers | Mohawk Machinery (3)

FANUC ALPHA-T14IA Vertical Machining Centers | Mohawk Machinery (4)

FANUC ALPHA-T14IA Vertical Machining Centers | Mohawk Machinery (5)

FANUC ALPHA-T14IA Vertical Machining Centers | Mohawk Machinery (6)

Have one to sell?

Overview

Type:

Vertical Machining Centers

Manufacturer:

Model:

ALPHA-T14IA

Stock #:

29535

Status:

For Sale

Description

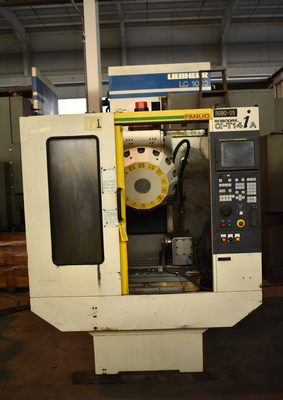

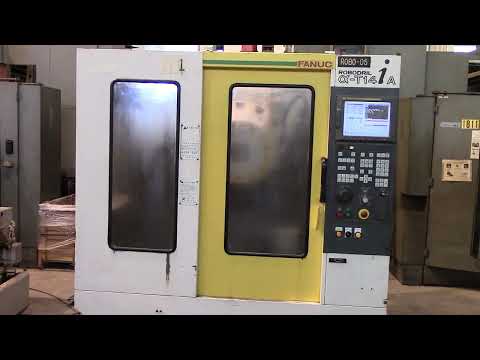

#ALPHA-T14iA FANUC "ROBODRILL" 4-AXIS CNC VERTICAL

DRILLING & TAPPING CENTER

Serial No P001TH837, Model Alpha-T14iA,

Equipped With

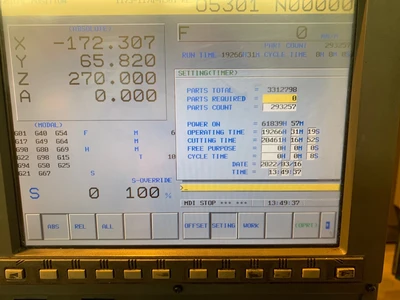

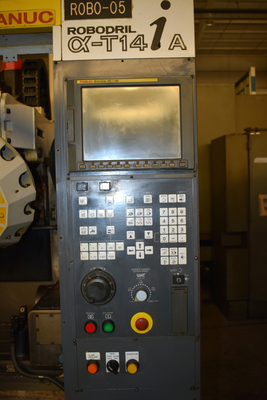

Fanuc 16-iM CNC Control

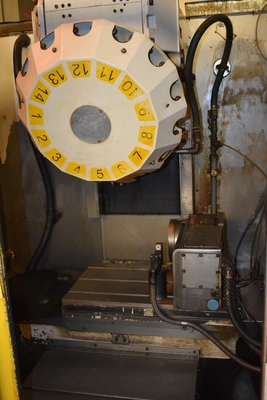

14-Position Automatic Tool Changer

Nikken (Model NSVZ180FA) CNC 4th Axis Rotary Indexing Table

Renishaw Tool Sensing Light

Specifications

ImperialMetric

X	19.68"	499.87 mm
Y	14.96"	379.98 mm
Z	11.81"	299.97 mm
Power	7.3 hp	5.4 kW
RPM	8,000 RPM	8,000 RPM
# ATC	14	14
Taper	BT-30	BT-30
Table-W	14.96"	379.98 mm
Table-L	21.6"	548.64 mm
# Axis	4	4
Weight	3750	3750

Table Dimensions (Overall), W x L 14.96" x 21.6"

Table Longitudinal Travel (X-Axis) 19.68"

Saddle Cross Travel (Y-Axis) 14.96"

Vertical Travel (Z-Axis) 11.81"

Spindle Nose to Table, Maximum 17.71"

Spindle Nose to Table, Minimum 5.9"

Spindle Taper #BT-30

Spindle Speeds Range, Inf. Variable 80 to 8000 RPM

Working Feedrate, X, Y, & Z-Axes 590 IPM

Rapid Traverse Rates, X, Y, & Z-Axis' 1889 IPM

Spindle Motor, Horsepower Rating 5.5 KW

Weight Approximately 3750 LBS

F.O.B. OUR WAREHOUSE
