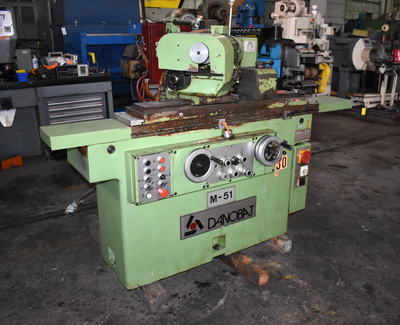

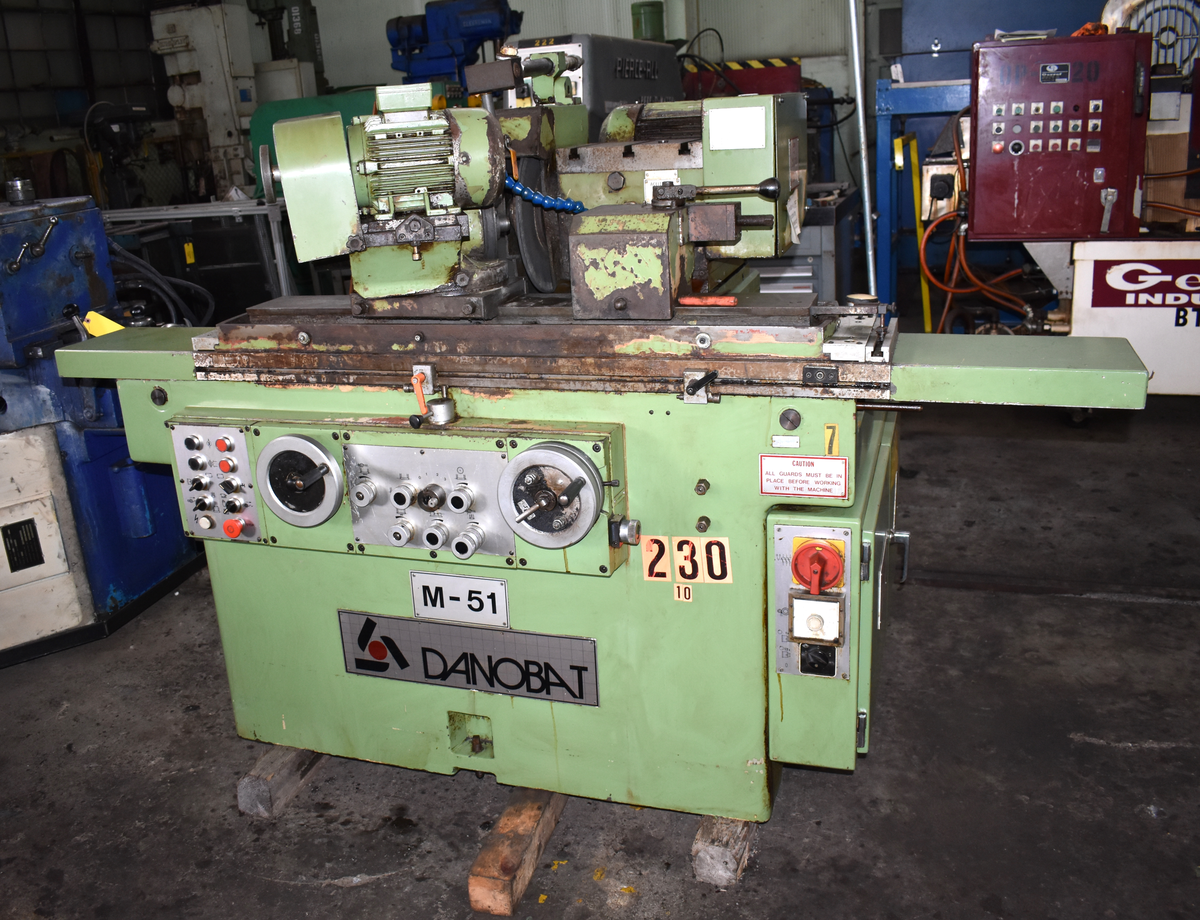

10" x 20" DANOBAT "M51" HIGH-PRECISION HYDRAULIC UNIVERSAL CYLINDRICAL GRINDER - LIVE/DEAD CENTER WORKHEAD

Swing Over Table, Maximum 10.2"

Grinding Diameter w/15" Wheel, Maximum 7.87"

Distance Between Centers, Nominal 20"

Grinding Wheel Diameter, Minimum 11.8"

Grinding Wheel Diameter, Standard 15"

Grinding Wheel Width, Maximum 1.5"

Grinding Wheel Width, Standard 2"

Grinding Wheel Hole Diameter 5"

Grinding Wheel Speed, 13.7" Wheel 1745 RPM

Grinding Wheel Speed, 15.7" Wheel 1530 RPM

Peripherical Speed 32 M/S 1312 F/S

Table Swivel Angle 8-DEGREES

Headstock Swivel Range 360-DEGREES

Grinding Wheelhead Swivel Range 30-DEGREES

Workhead Center Taper #4 MT

Tailstock Center Taper #3 MT

Workhead Spindle Speeds, Range 75 to 750 RPM

Table Longitudinal Feeds, Infinite .3 to 19.7 FPM

Grinding Wheelhead Spindle Motor 5.5 KW

F.O.B. Our Warehouse
