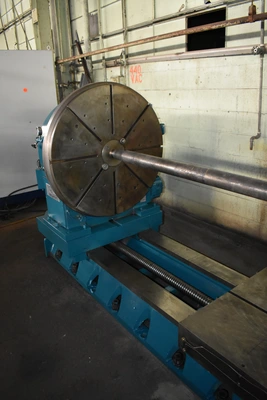

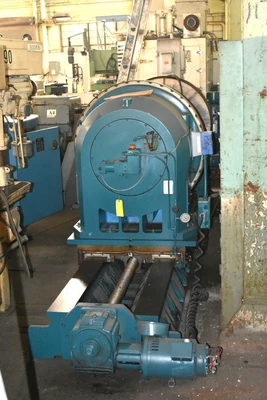

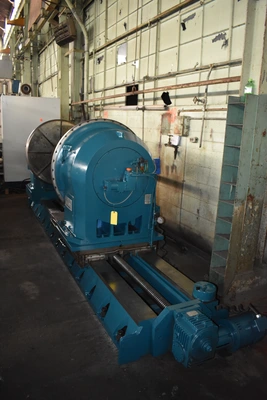

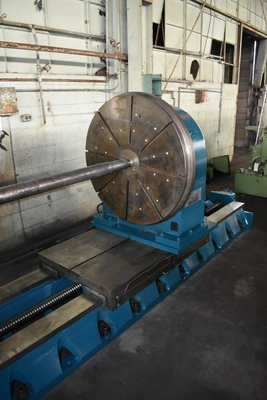

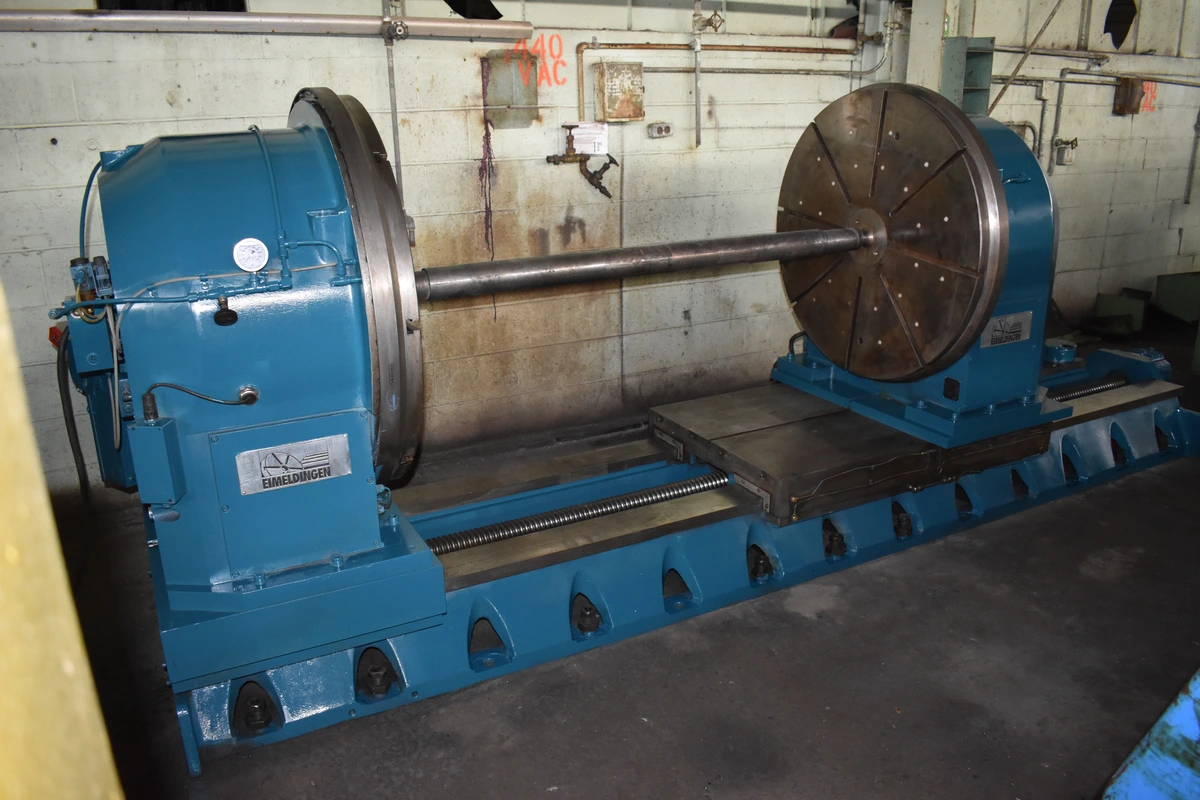

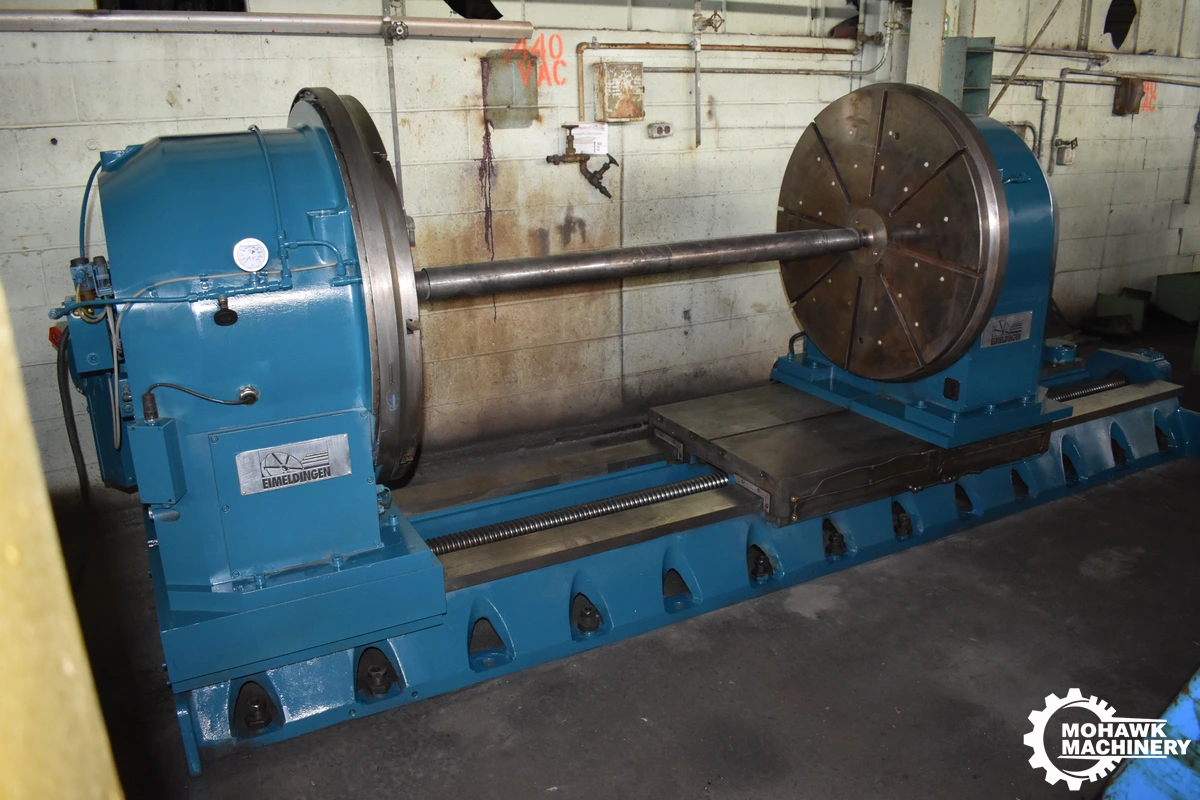

39.5" x 108" EIMELDINGEN RUSACH "5-1010" CNC DUAL MILLING VERTICAL ROTARY TABLES w/TAILSTOCK - MASTER SLIDE - BALL SCREWS

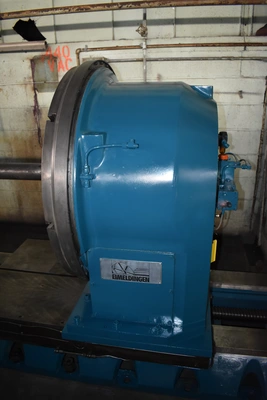

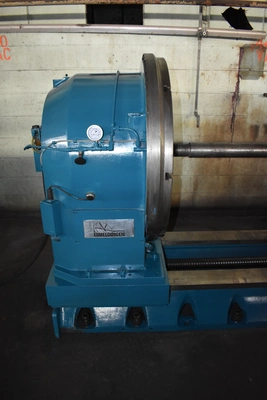

39.5" Eimeldingen "5-1010" Power Rotary Table w/Fanuc Sevo

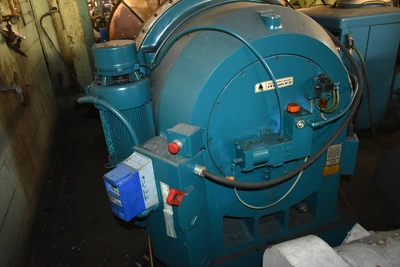

Motor Drive & Active Clamping Mechanism

39.5" Eimeldingen "5-1010" Tailstock

Eimeldingen "PT7-MF158-S50-T59" Heavy-Duty Master Slide

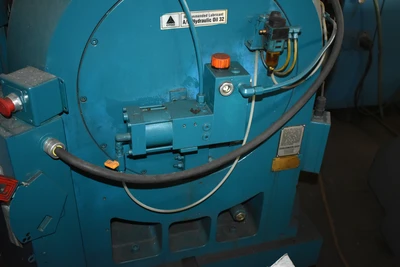

Hydraulic/Pneumatic Clamping Unit

Heidenhain Measuring System

Ball Screw

Emerson Inverter Duty Drive

OVERALL SPECIFICATIONS:

Table Diameters 39.37"

Number Of T-Slots 8

Center Hole 3.94"

Distance Between Centers, Approximately 108"

ROTARY TABLE SPECIFICATIONS:

Table Diameter 39.37" 1000MM

T-Slot Dimensions 18MM

Load Capacity, Uniform 13200 LBS 6000KG

Overall Table Dimensions, Length 24.02" 610MM

Overall Table Dimensions, Width 39.76" 1010MM

Overall Table Dimensions, Height 52.16" 1300MM

Permitted Machining Force 17600 LBS 80000N

Clamping Torque, Standard 190550 LBS 22000NM

Milling Torque, Maximum 164567 LB/IN 19000 NM

Main Gear Ratio 360:1

NOTE: These Tables Are Suitable For Heavy Machining And

Metrology Applications With High Accuracies And Heavy

Load Capabilities. Factory Advises This CNC Rotary Table

System Would Have A Replacement Price Of

Approximately $475,000.00.

F.O.B. OUR WAREHOUSE
