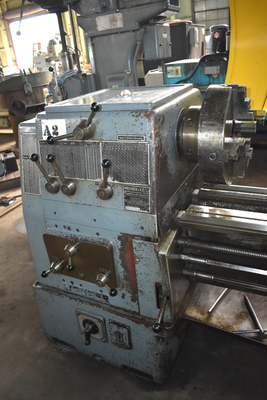

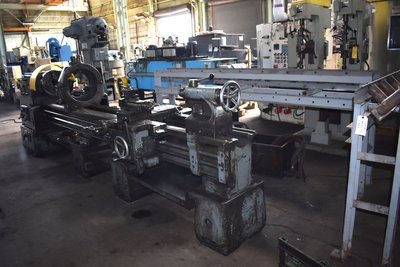

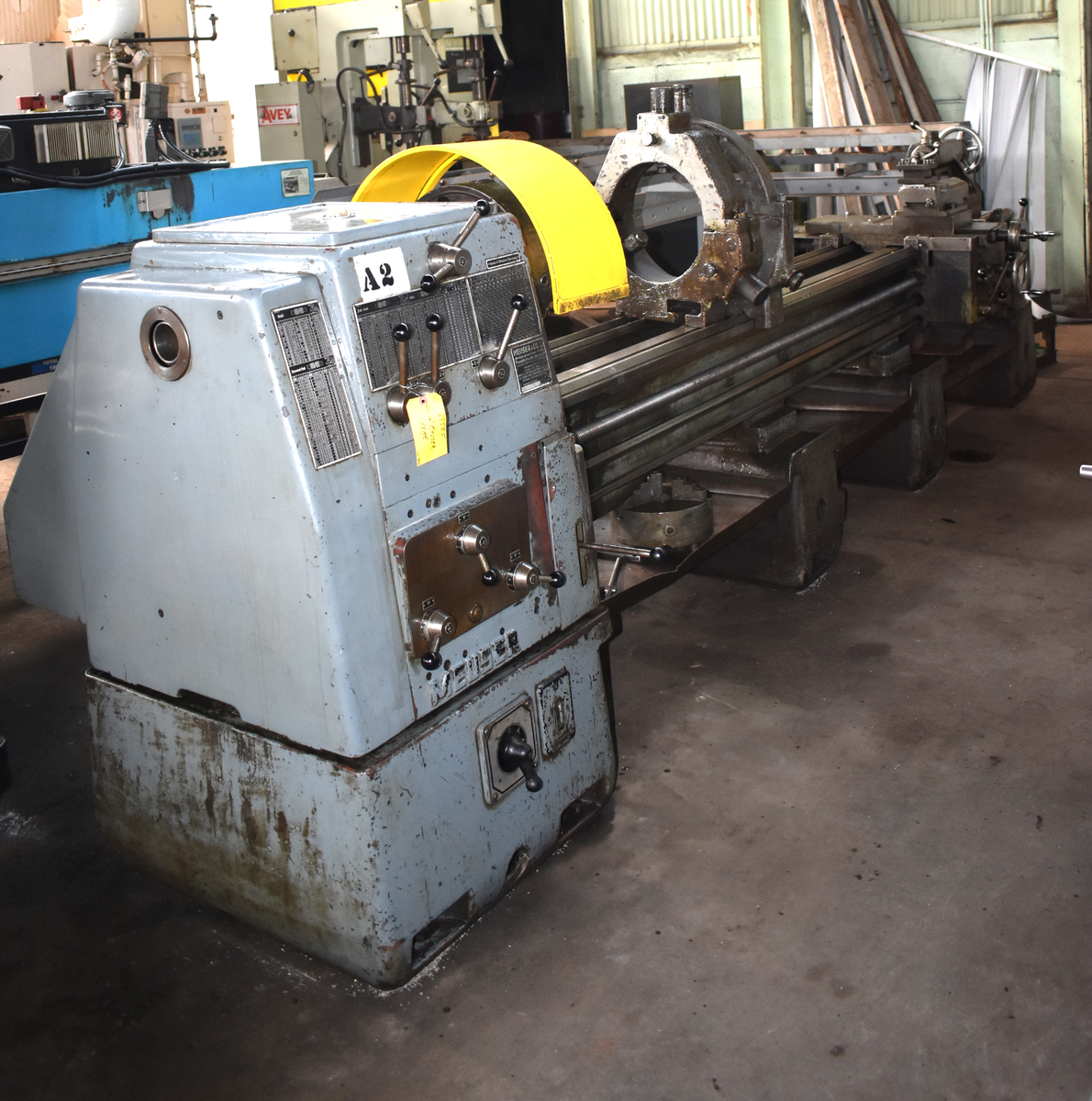

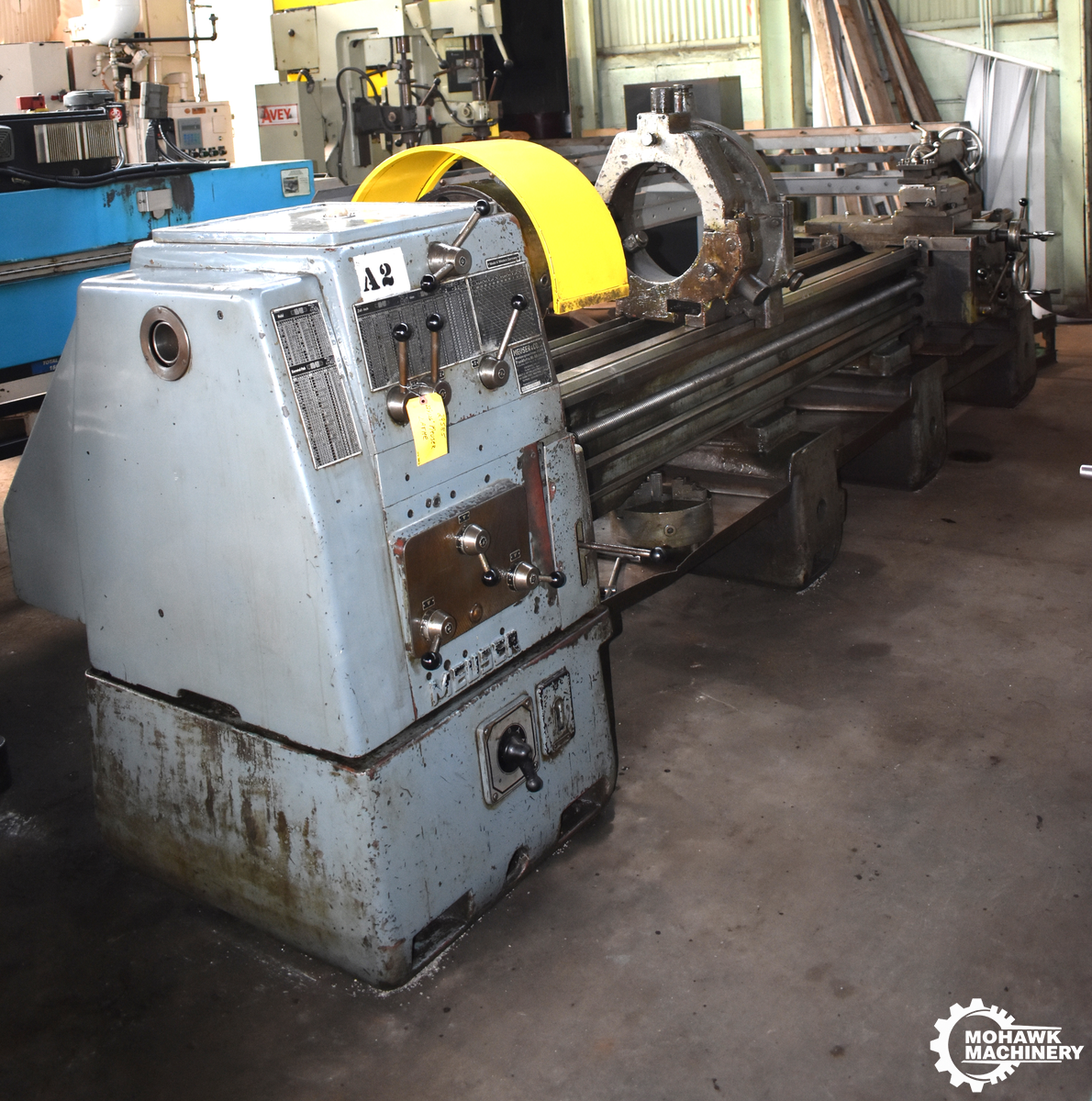

22/32" x 120" MEUSER "M2L" GAP-TYPE ENGINE LATHE w/TAPER ATTACHMENT - INCH/METRIC THREADING

22"/32" x 120" MEUSER "GAP-TYPE" ENGINE LATHE w/TAPER ATTACHMENT
Serial No M2L-37733, Model M2L, Series "GAP-TYPE"

EQUIPPED WITH:

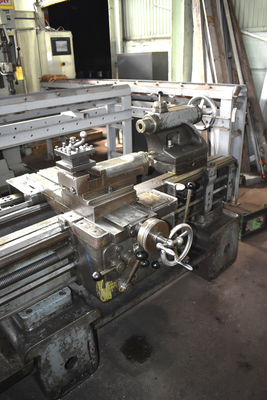

Taper Attachment
15" 4-Jaw Chuck w/Jaws

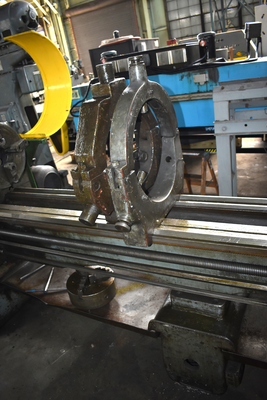

Steady Rest - Tool Post
Hardened & Ground Bed Ways
Inch-Metric Threading
Full Length Coolant Chip Pan

CATALOG SPECIFICATIONS:
Hole Thru Spindle 2.25"
Swing Over Bed Ways, Rated 22"
Swing Thru Gap 32"
Swing Over Cross-Slide 14.75"
Distance Between Centers 120"
Gap Length 14"
Cross-Slide Cross-Feed Travel 13.75"
Top Compound-Rest Travel 6"
Tailstock, Spindle Travel 6.5"
Tailstock, Spindle Taper #4 MT
(12) Spindle Speeds, Range 36-1600 RPM
Carriage Longitudinal Feeds .00138 To .31496 IPM
Cross-Slide Cross Feeds .00035 To .07874 IPM
(85) Thread Changes, Range 1/2 To 152 TPI
(60) Metric Thread Changes, Range .50 To 76 MM
(82) Diametral Pitch Threads, Range 1 To 176
(35) Module Threads, Range .25 To 21
Weight, Approximately 9500 LBS
F.O.B. OUR WAREHOUSE
