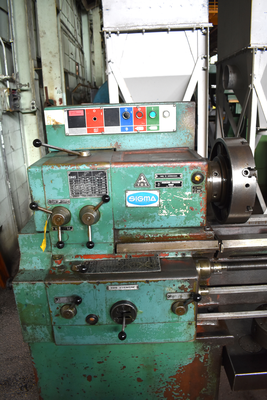

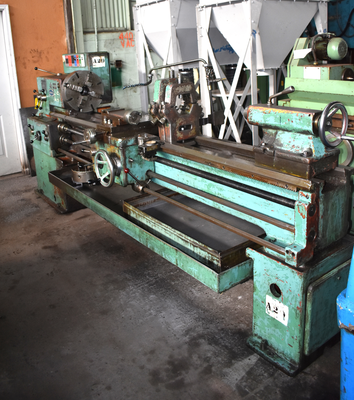

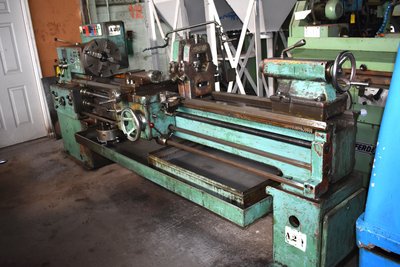

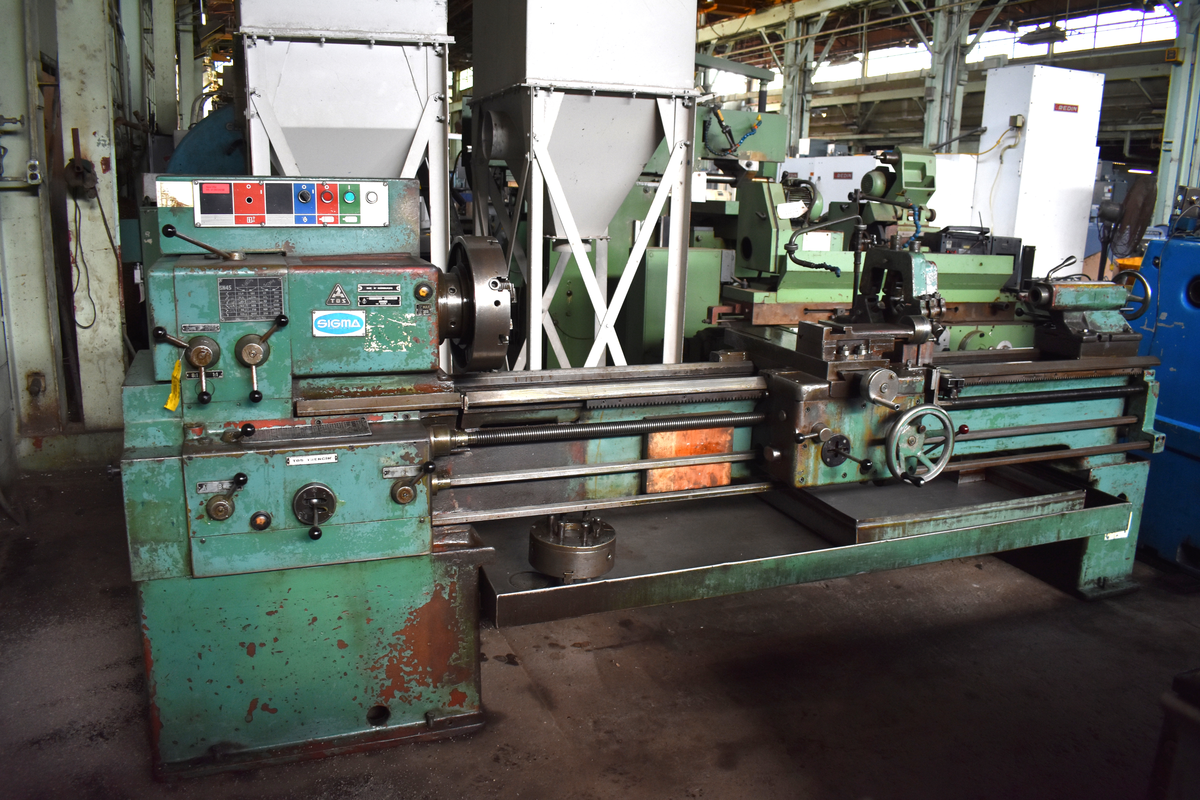

17/25" x 80" TOS-TRENCHIN "SN45B" GAP-TYPE ENGINE LATHE - INCH METRIC THREADING - 15” 4-JAW CHUCK

Hole Thru Spindle 2"

Swing Over Bed Ways, Rated 17"

Swing Over Bed Ways, Actual 17-23/32"

Swing thru Gap 25-19/32"

Swing Over Carriage 10-5/8"

Distance Between Centers 80"

Gap Length 91/16"

Tailstock, Spindle Diameter 2-3/4"

Tailstock, Spindle Travel 7-3/32"

Tailstock, Spindle Taper #5 MT

(24) Spindle Speeds, Range 22 to 2000 RPM

Carriage Longitudinal Feeds .002 to .242 IPR

Carriage Longitudinal Feeds .05 to 6.4 MMPR

Cross-Slide Cross Feeds .025 to 3.2 MMPR

Cross-Slide Cross Feeds .001 to .121 IPR

(35) Whitworth Thread Changes, Range 1 to 80 TPI

(29) Metric Leads, Range .5 to 40 MM

(26) Module Threads, Range .25 to 20 PIM

(31) D.P. Threads 2 to 71 DP

Overall Dimensions, L x W 152" x 40"

Overall Height 53"
