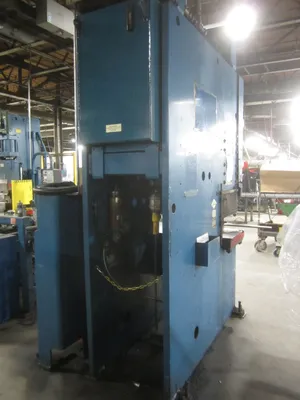

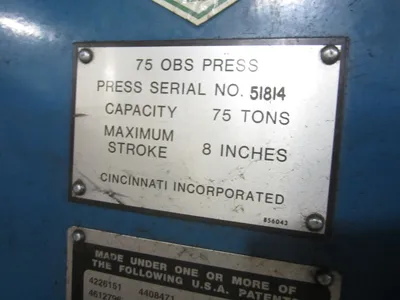

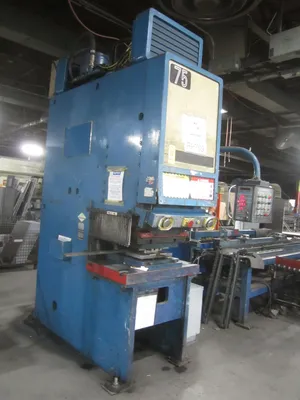

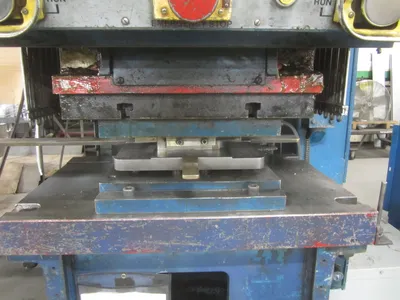

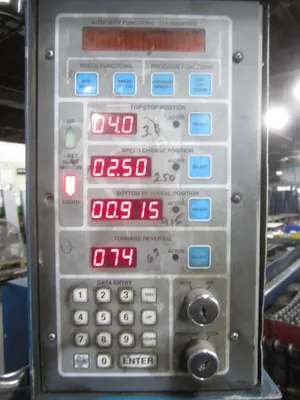

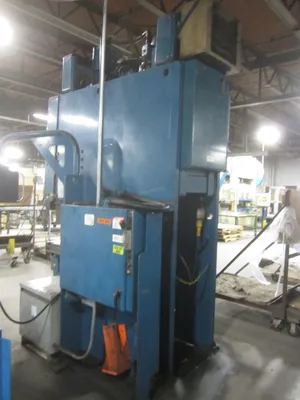

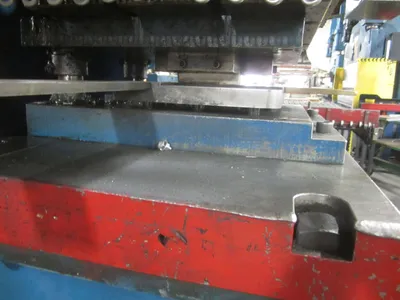

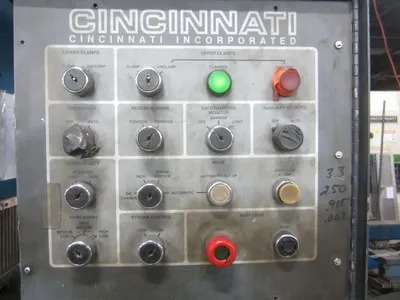

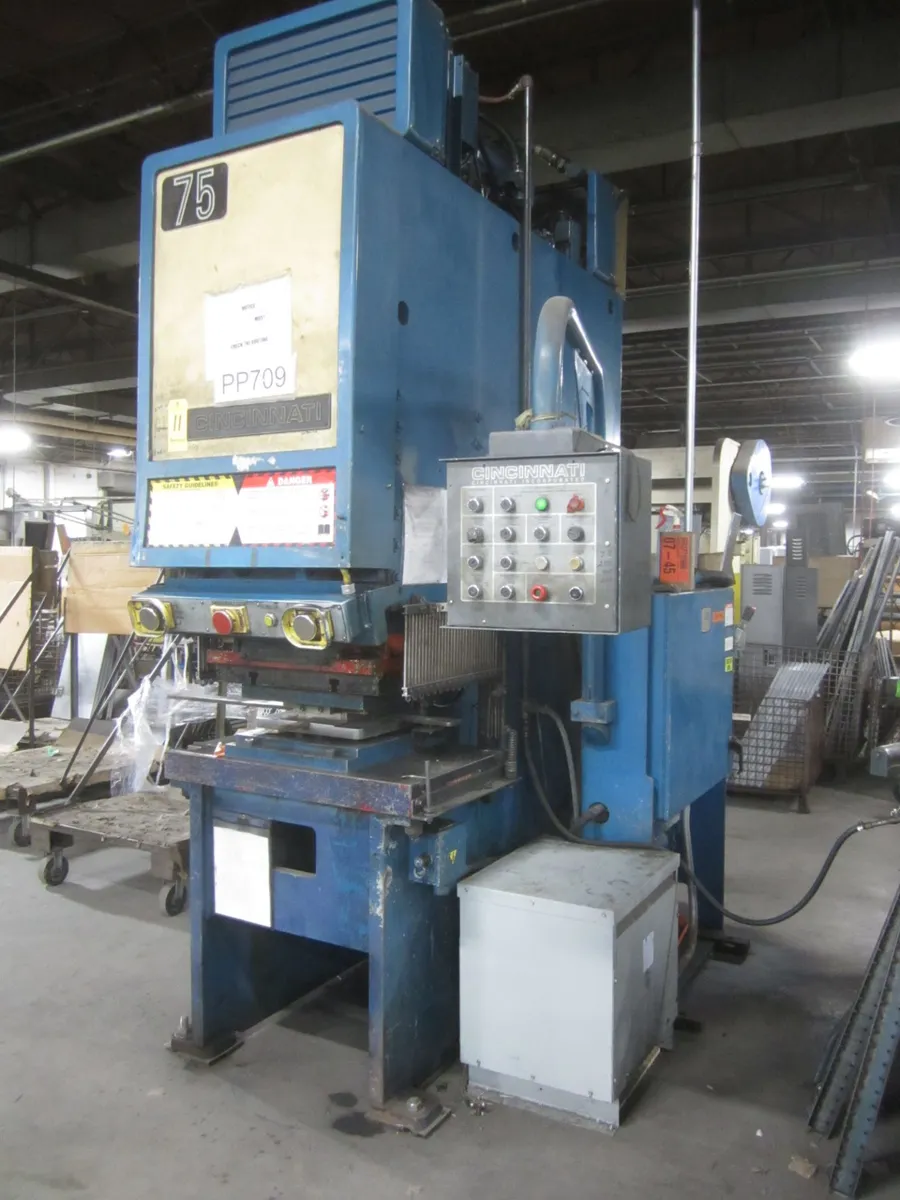

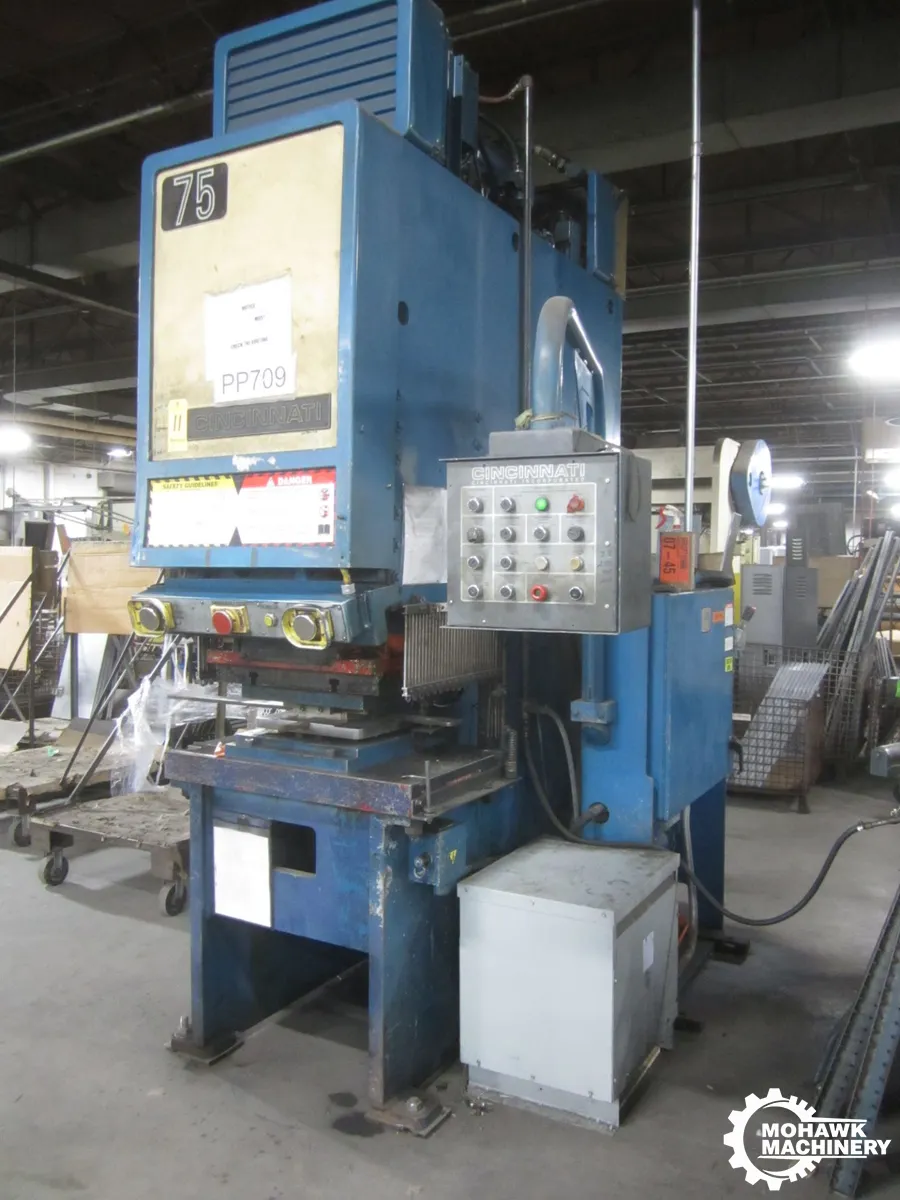

75 TON CINCINNATI-INC "75 OBS" CNC GAP-FRAME HYDRAULIC PRESS w/CINCINNATI MICROPROCESSOR CONTROL - QUICK CHANGE DIE SYSTEM

Tonnage Capacity, Low Speed 75 TON

Tonnage Capacity, Medium Speed 42 TON

Stroke Length, Adjustable .75" to 8"

Gap Length 14"

Open Height, Maximum 14.25"

Closed Height, Minimum 6.25"

Slide Area, L-R x F-B 24" x 18"

Slide Bolster Area, L-R x F-B 24" x 18"

Bed Bolster Area, L-R x F-B 36" x 24"

Distance Between Housings 25"

Slide Speed, Pressing (High) 606 IPM

Slide Speed, Pressing (Medium) 175 IPM

Slide Speed, Pressing (Low) 61 IPM

Slide Speed, Return (High) 695 IPM

Slide Speed, Return (Low) 450 IPM

Hydraulic Motor, Horsepower 20 HP

Weight Approximately 17500 LBS

F.O.B. OUR WAREHOUSE
