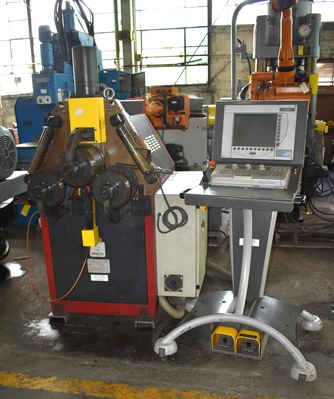

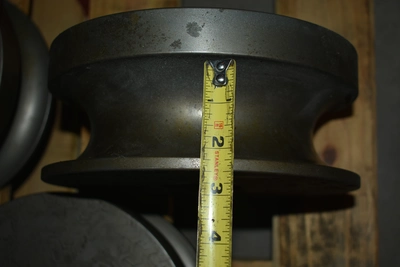

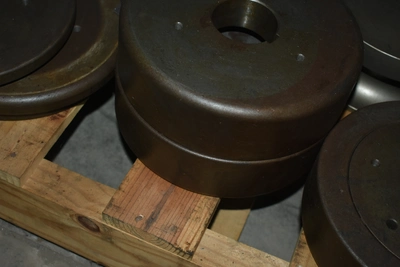

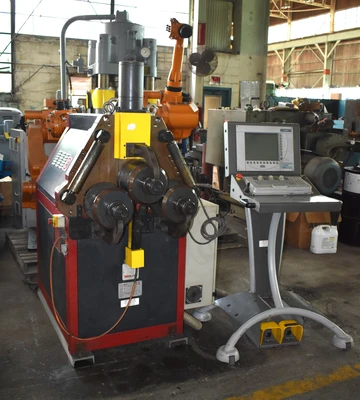

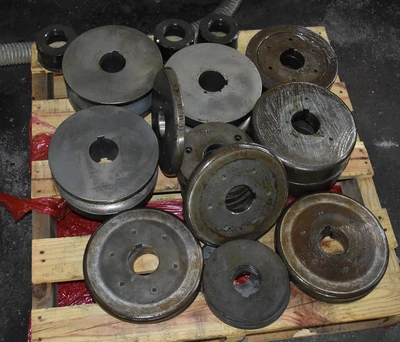

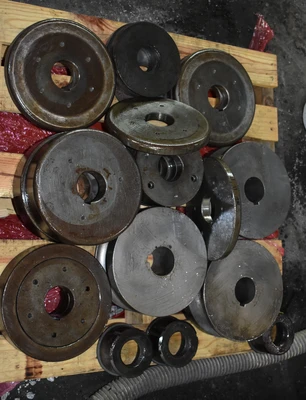

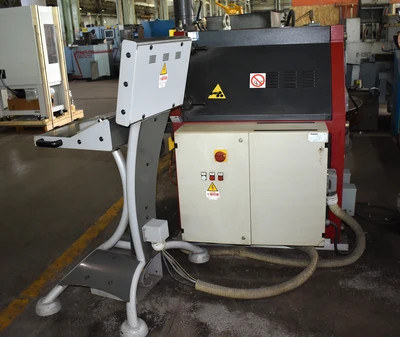

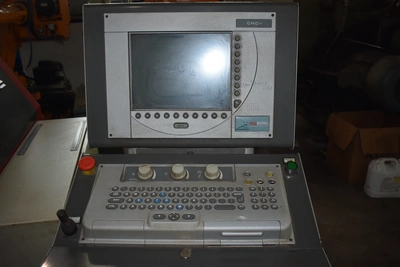

3.15" x 3.15" x .315" TAURING "DELTA 60" HYDRAULIC CNC ANGLE AND PROFILE BENDING ROLL - CNC-1 PRO TOUCHSCREEN CNC CONTROL - 3-DRIVEN ROLLS - INTERCHANGEABLE UNIVERSAL TOOLING

Angles Leg-Out @ 29" Min Radius .......... 3.15" x3.15" x .315"

Angles Leg-In @ 37" Min Radius .......... 3.15" x 3.15" x .315"

Round Tubing @ 45" Min Radius .......... 3.5" x .10"

Solid Round @ 21" Min Radius .......... 2.5"

Square Tube @ 45" Min Radius .......... 3.15" x 3.15" x .140"

Flat Bar Hard @ 37" Min Radius .......... 3.5" x .70"

Flat Bar Easy @ 25" Min Radius .......... 5.15" x 1.4"

T-Channel Hard @ 21" Min Radius .......... 2.8" x 2.8" x .35"

T-Channel Easy @ 21" Min Radius .......... 2.8" x 2.8" x .35"

Pipe Schedule 40 @ 27" Min Radius .......... 2.5"

Rectangular Tube Easy @ 45" Min Radius .......... 4.25" x 2.125" x .14"

Solid Square @ 21" Min Radius .......... 2.125" x 2.125"

Rolling Speed .......... 7.4 RPM

Shaft Working Length .......... 6.3"

Shaft Diameters .......... 2.36"

Overall Dimensions, L x W x H .......... 45" x 49" x 67"

Weight, Approximately .......... 2500 LBS

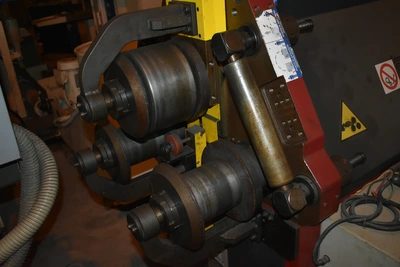

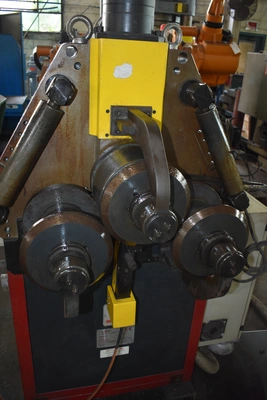

NOTE: This State Of The Art CNC Pyramid Style Three Gear Driven Roll Bender

Has Lower Roll Centers That Can Be Positioned In Four Different Positions.

All Three Shafts Are Hardened, Ground High Strength Steel, Which Are Mounted

On Taper Roller Bearings For High Radial Or Axial Loads. The Top Roll Is

Equipped With A Friction Mechanical Device For Rim Speed Compensation.

Replacement Price On This Roll Is $129,600.00.

F.O.B. OUR WAREHOUSE
Rolling Speed: 7.4 RPM
Shaft Working Length: 6.3"
Shaft Diameters: 2.36"
Weight, Approximately: 2500 LBS
