Overview

Type:

Horizontal Mills - (incl: Vertical "Attachment")

Manufacturer:

Model:

20

Stock #:

29704

Status:

For Sale

Description

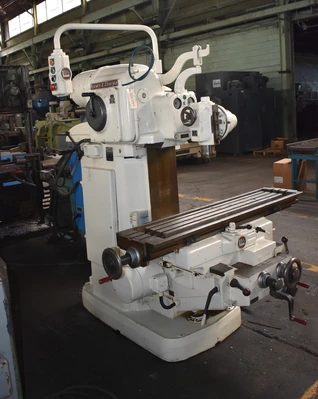

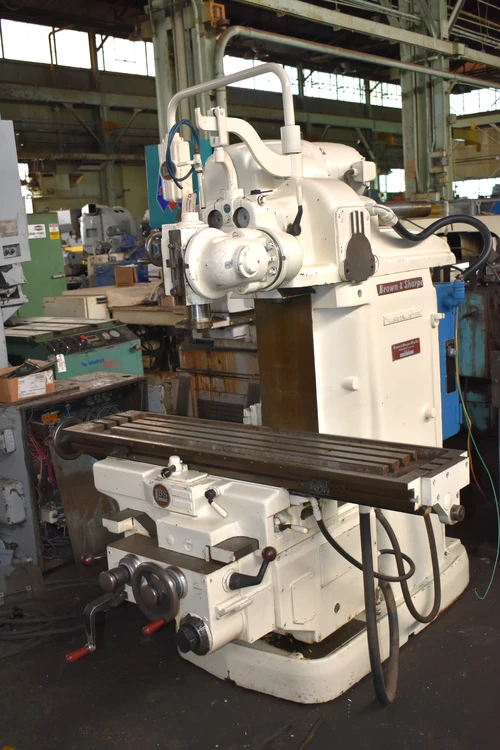

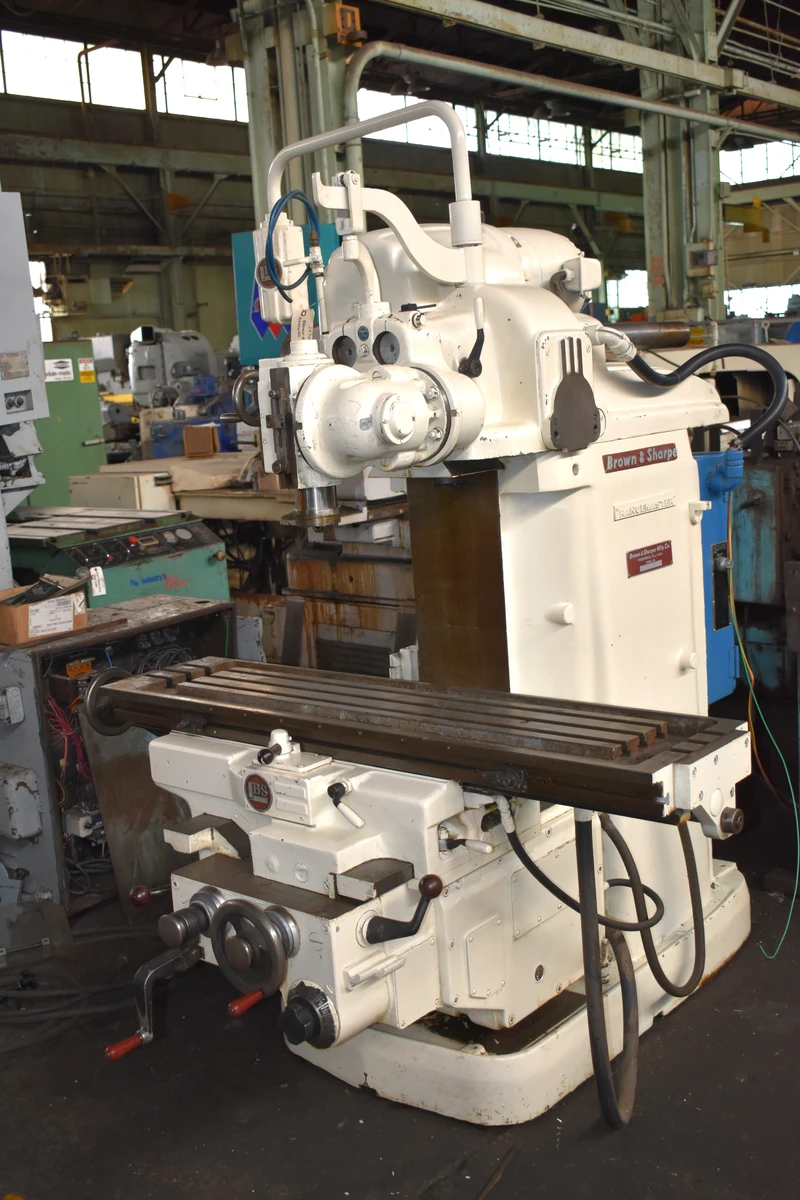

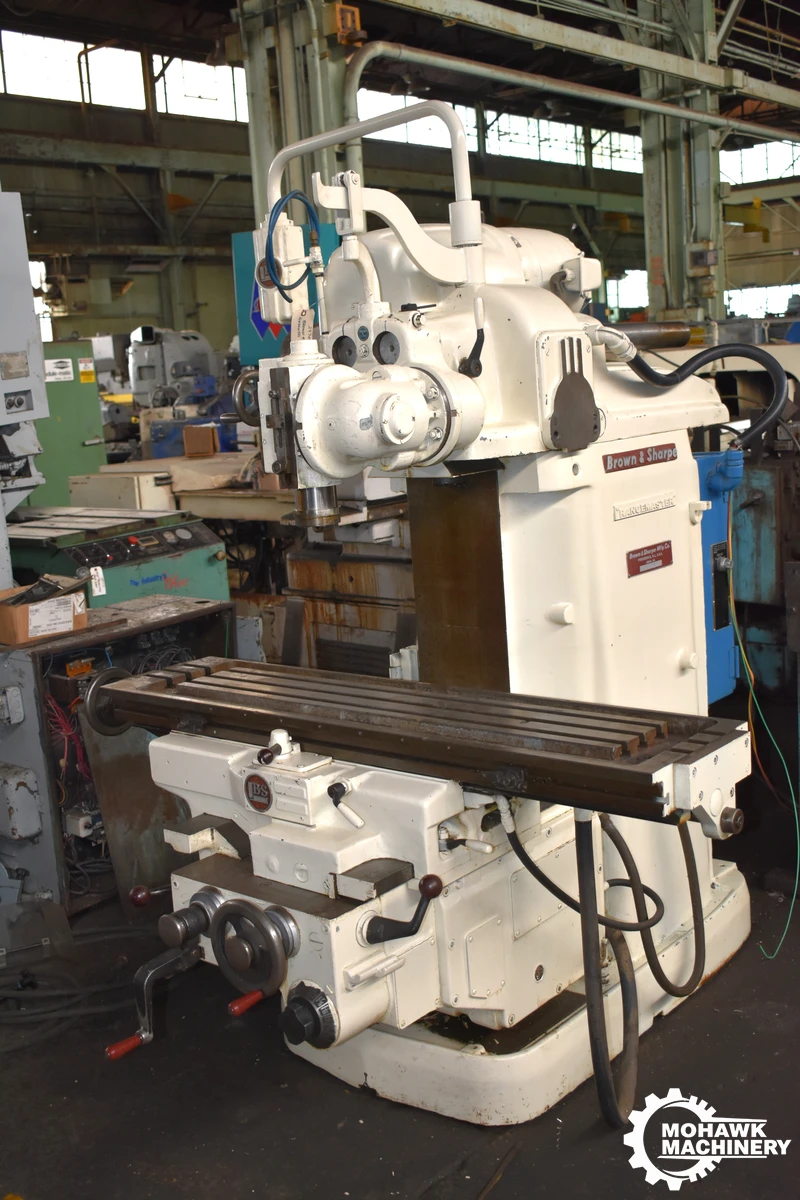

#20 BROWN & SHARPE "RANGEMASTER"

UNIVERSAL SLIDING-HEAD HORIZONTAL MILL

w/UNIVERSAL VERTICAL HEAD ATTACHMENT

Serial No. 507-23-53, Model "RANGEMASTER"

Equipped With

Universal Vertical Head Milling Attachment

w/Swing-Away Parking

Motor On Knee - Dual Round Overarm

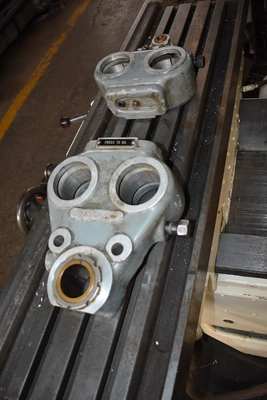

(2) Arbor Supports

Rapid Table Traverse (Longitudinal, Transverse, & Vertical)

Specifications

ImperialMetric

Table Size-W	13"	330.2 mm
Table Size-L	54.375"	1,381.1 mm
Travel-Long	28"	711.2 mm
Travel-Cross	12"	304.8 mm
Travel-Vert	21.25"	539.75 mm
Power	5 hp	3.7 kW
RPM	1,530 RPM	1,530 RPM
Taper	#40 NSTD	#40 NSTD
Dimensions	13 x 54.375	13 x 54.375
Weight	5950 lbs	5950 lbs

Table Dimensions (Overall), L x W 13" x 54.375"

Table Working Surface, W x L 13" x 54.375"

Longitudinal Table Travel (X-Axis) 28"

Cross Saddle Travel (Z-Axis) 12"

Vertical Knee Travel (Y-Axis) 21.25"

Vertical Spindle Head Travel (Y-Axis) 22.875"

Spindle Taper #40 NSTD

Spindle Speeds, Range 40 to 1530 RPM

Universal Head Speeds, Range 80 to 3060 RPM

Longitudinal & Cross Feeds 1/2 to 20 1/4 IPM

Spindle Motor, Horsepower 5 HP

Feed Motor, Horsepower 1 HP

Electrical System 220-440/3/60

Weight, Approximately 5,950 lbs

F.O.B. OUR WAREHOUSE
