12" x 25" KENT "KGS-306AHD" FULLY-AUTOMATIC HYDRAULIC HORIZONTAL-SPINDLE SURFACE GRINDER w/ELECTRO-MAGNETIC CHUCK - INCREMENTAL POWER DOWN FEED

Have one to sell?

sales@mohawkmachinery.com

$9,950.00 USD

ConditionUsed

Quantity

1 available

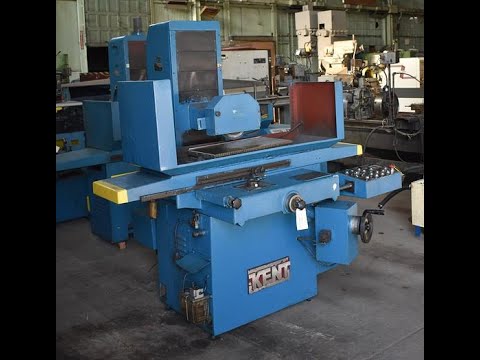

KENT KGS-306AHD Surface & Way Grinders | Mohawk Machinery (1)

KENT KGS-306AHD Surface & Way Grinders | Mohawk Machinery (2)

KENT KGS-306AHD Surface & Way Grinders | Mohawk Machinery (3)

KENT KGS-306AHD Surface & Way Grinders | Mohawk Machinery (4)

KENT KGS-306AHD Surface & Way Grinders | Mohawk Machinery (5)

KENT KGS-306AHD Surface & Way Grinders | Mohawk Machinery (6)

KENT KGS-306AHD Surface & Way Grinders | Mohawk Machinery (7)

Have one to sell?

Overview

Type:

Surface & Way Grinders

Manufacturer:

Model:

KGS-306AHD

Stock #:

29706

Status:

For Sale

Description

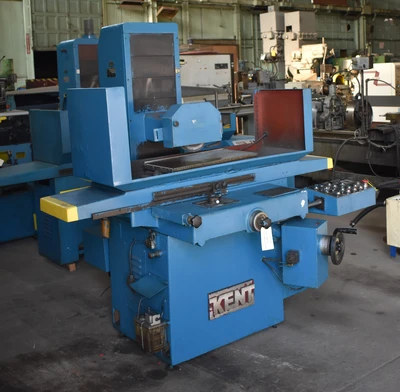

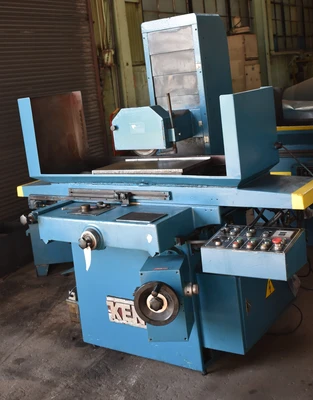

12" x 25" KENT FULLY-AUTOMATIC HYDRAULIC-FEED

HORIZONTAL-SPINDLE SURFACE GRINDER

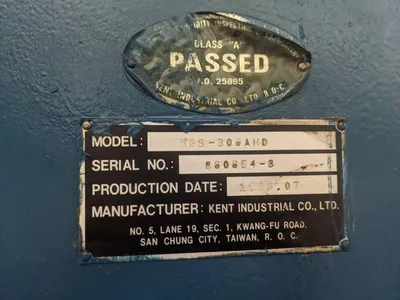

Serial No 860654-8, Model KGS306AHD,

Equipped With

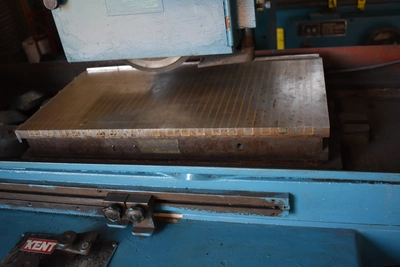

12" x 24" Electro-Magnetic Chuck

Incremental Power Down Feed

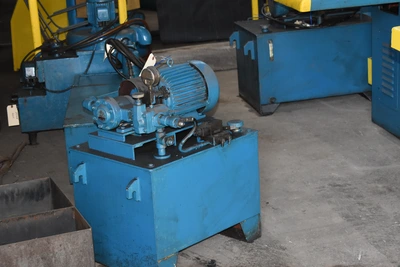

Coolant System (Tank & Pump)

Specifications

ImperialMetric

Table-W	12.06"	306.32 mm
Table-L	25.56"	649.22 mm
Horz/Vert	Horz	Horz
Power	3 hp	2.2 kW
Grinding Wheel Width	1.25"	31.75 mm
Grinding Wheel Dia.	12"	304.8 mm
Weight	3650	3650

Surface Ground Maximum, W x L 12.06" x 25.56"

Grinding Width Capacity, Maximum 12.06"

Grinding Length Capacity, Maximum 25.56"

Spindle Center to Table, Maximum 21.62"

Grinding Wheel Diameter, Standard 12"

Grinding Wheel Width, Standard 1.25"

Grinding Wheel Hole Diameter 5"

Hydraulic System Motor 3 HP

Weight, Approximately 3650 LBS

F.O.B. OUR WAREHOUSE
