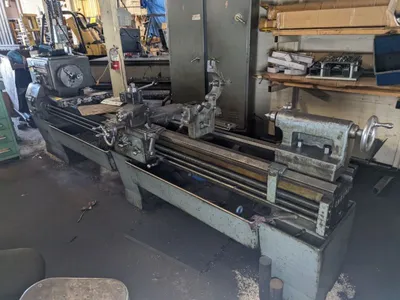

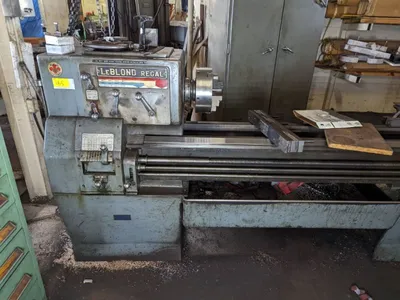

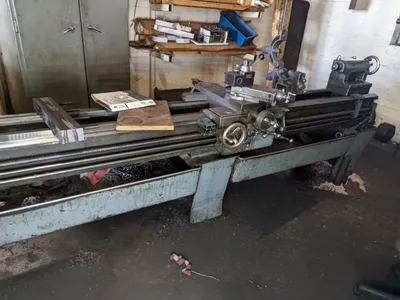

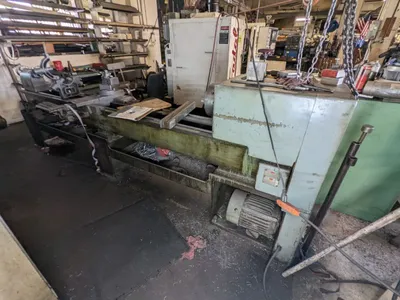

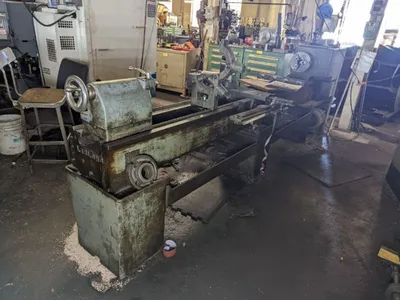

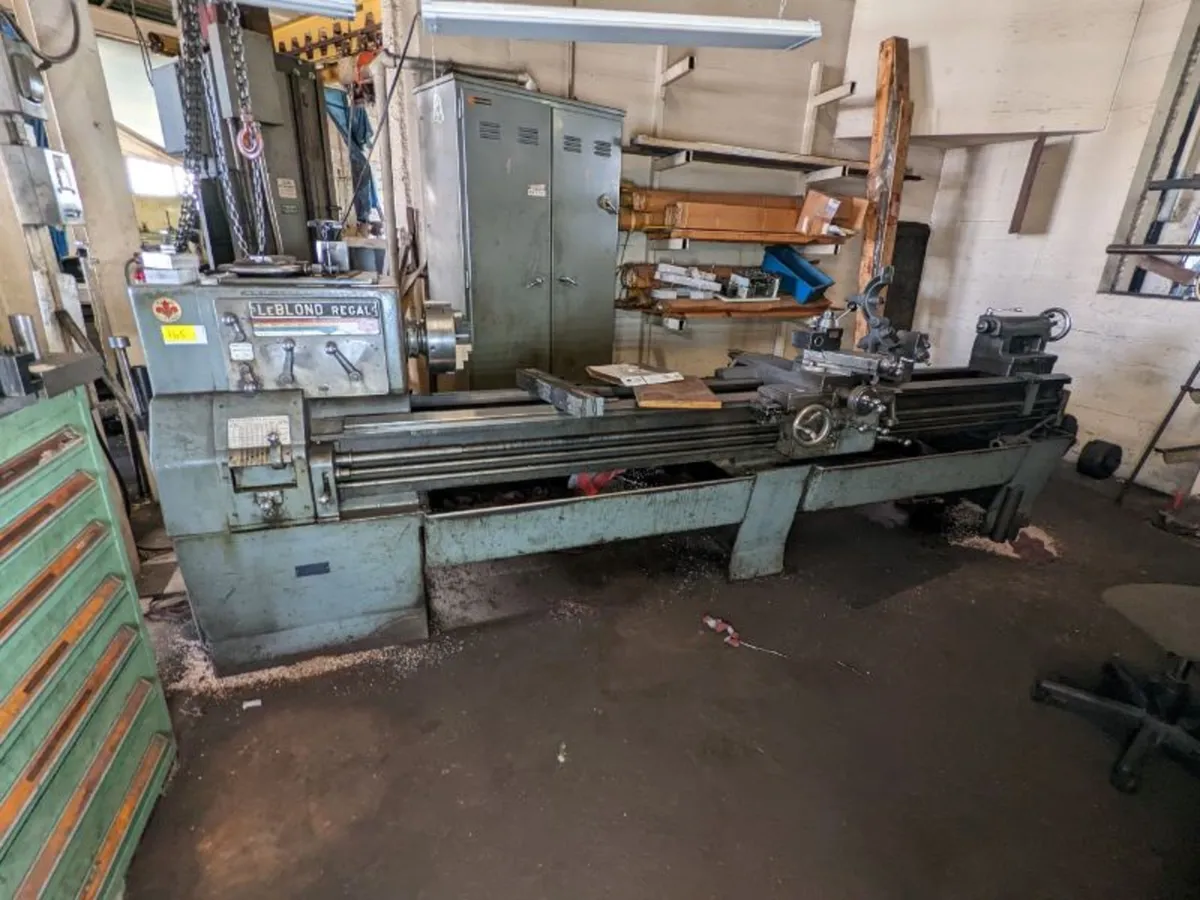

19/19.5" x 102" LEBLOND "19 REGAL" ENGINE LATHE w/TAPER ATTACHMENT - (2) CHUCKS - FACEPLATE - STEADY REST

Hole Thru Spindle .......... 1.8"

Swing Over Bed Ways, Rated .......... 19"

Swing Over Bed Ways, Actual .......... 19.5"

Swing Over Cross-Slide .......... 12.3"

Distance Between Centers .......... 102"

Cross-Slide Cross-Feed Travel .......... 11.25"

Compound-Rest Travel .......... 4.375"

Tailstock, Spindle Diameter .......... 2.44"

Tailstock, Spindle Travel .......... 7"

Tailstock, Spindle Taper .......... #4 MT

(12) Spindle Speeds, Range .......... 25 to 1000 RPM

(48) Carriage Longitudinal Feeds .......... .0023 to .132 IPR

(48) Thread Changes, Range .......... 2 to 112 TPI

Main Motor, Horsepower/RPM .......... HP/1730 RPM

Electrical System .......... 220-440/3/60

Floor Space Required, L x D .......... 15' x 4'2"

Weight, Approximately .......... 4500 LBS

F.O.B. OUR WAREHOUSE
Hole Thru Spindle: 1.8"
Swing Over Cross-Slide: 12.3"
Distance Between Centers: 102"
Cross-Slide Cross-Feed Travel: 11.25"
Compound-Rest Travel: 4.375"
Tailstock, Spindle Diameter: 2.44"
Tailstock, Spindle Travel: 7"
Tailstock, Spindle Taper: #4 MT
(12) Spindle Speeds, Range: 25 to 1000 RPM
(48) Carriage Longitudinal Feeds: 0023 to .132 IPR
(48) Thread Changes, Range: 2 to 112 TPI
Main Motor, Horsepower/RPM: HP/1730 RPM
Electrical System: 220-440/3/60
Weight, Approximately: 4500 LBS
