410S-15 KEARNEY & TRECKER "410S-15" PLAIN HORIZONTAL MILL - w/(2) ARBOR SUPPORTS - (2) ARBORS
Have one to sell?
$12,500.00 USD
ConditionUsed
1 available

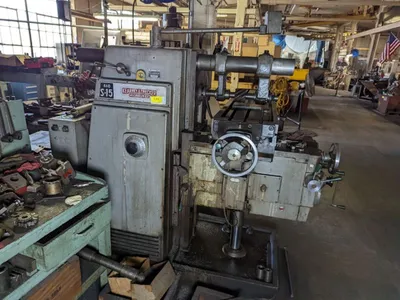

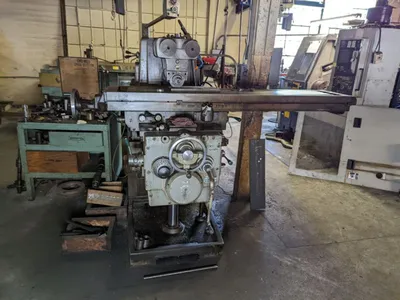

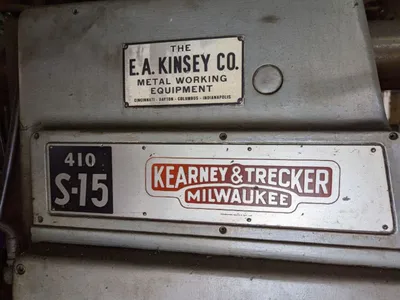

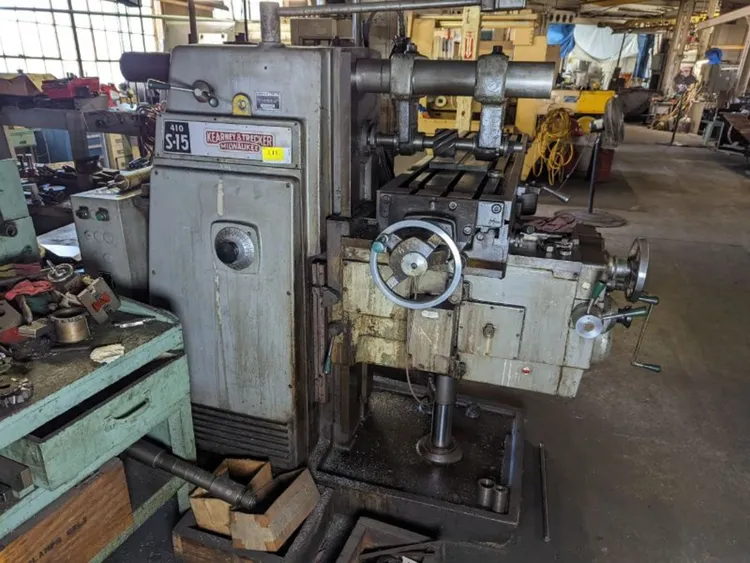

#410S15 KEARNEY & TRECKER PLAIN HORIZONTAL MILL
New 1968, Serial No 80-1011-01, Model 410S15,
Knee Motor
Dual Round Overarm

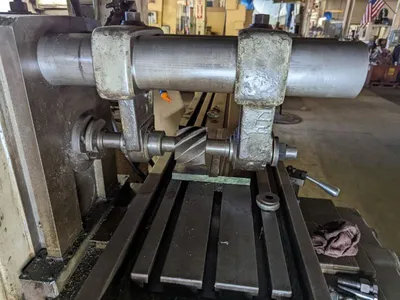

(2) Arbor Supports
(2) Arbors
Table Dimensions (Overall), W x L 15" x 76"
Table Working Surface, W x L 15" x 76"
Table Longitudinal Travel (X-Axis) 42"
Saddle In-Out Cross Travel (Z-Axis) 14"
Knee Vertical Travel (Y-Axis) 19"
Spindle Taper #50 NSTD
(24) Spindle Speeds, Range 25 to 2000 RPM
(32) Longitudinal and Cross Feeds .375 to 90 IPM
Vertical Feeds, Range .1875 to 45 IPM
Power Rapid Traverse, Long & Cross 150 IPM
Power Rapid Traverse, Vertical 75 IPM
Spindle Motor, Horsepower/RPM 10 HP
Feed Motor, Horsepower 3 HP
Weight, Approximately 9350 LBS
F.O.B. OUR WAREHOUSE
