3/4” X 30” ELDORADO "MEGA M75-30T" SINGLE-SPINDLE DEEP-HOLE GUN DRILL w/POWER TABLE - F18-1101 MEGA-FLO HIGH PRESSURE COOLANT SYSTEM - FLO-MINDER COOLANT MONITORING SYSTEM

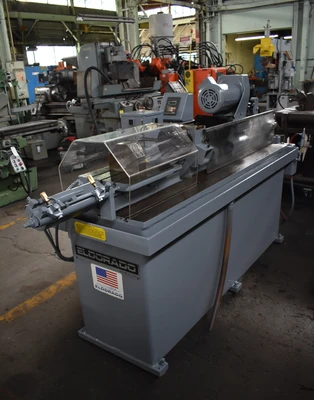

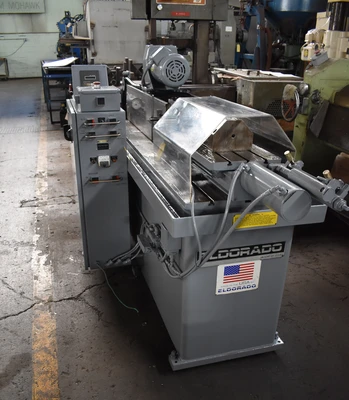

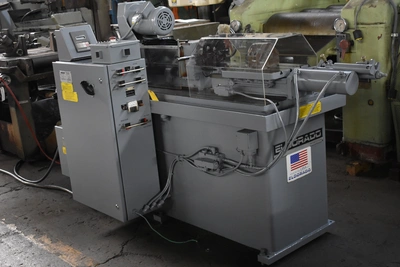

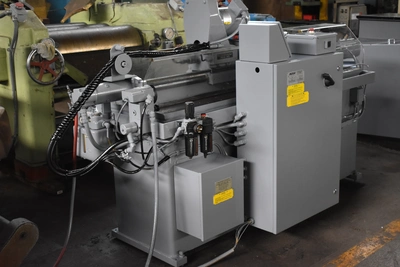

#M75-30T ELDORADO "MEGA 75" DEEP HOLE GUN DRILL
Serial No M75-1803, Model M75-30T

EQUIPPED WITH:
Single Spindle Design w/12" x 14" Power Table Attachment

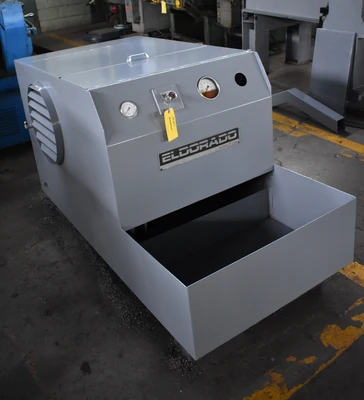

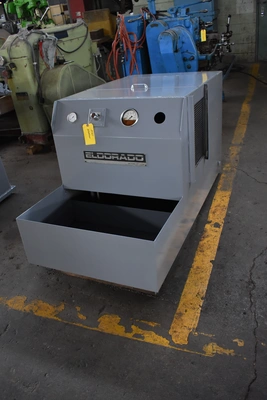

#F18-1101 Mega-Flo High-Pressure Coolant System (S/N 1537)
Mega "Flo-Minder" Coolant Monitoring System
Bijur Mist Lubrication System
8" 6-Jaw Chuck w/Jaws

CATALOGUE SPECIFICATIONS:
Diameter Capacity, Maximum 3/4"
Diameter Capacity, Minimum .0550"
Stroke Length, Maximum 30"
Drilling Depth, Maximum 30"
Spindle Center to Table Top 8-1/4"
Table Height From Floor Line 32-1/2"
Spindle Speeds, Infinite Range 1455 to 11740 RPM
Feed Range, Infinitely Variable .100 to 99.9 IPM
Spindle Motor Horsepower 3 HP/3450 RPM
Coolant System Capacity 90 GALLONS
Coolant Pressure to 1500 PSI
Coolant Flow Rate to 18 GPM
Electrical System 208-230/460/3/60
F.O.B. OUR WAREHOUSE
