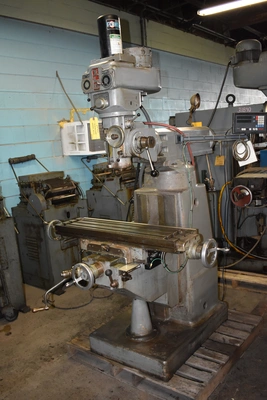

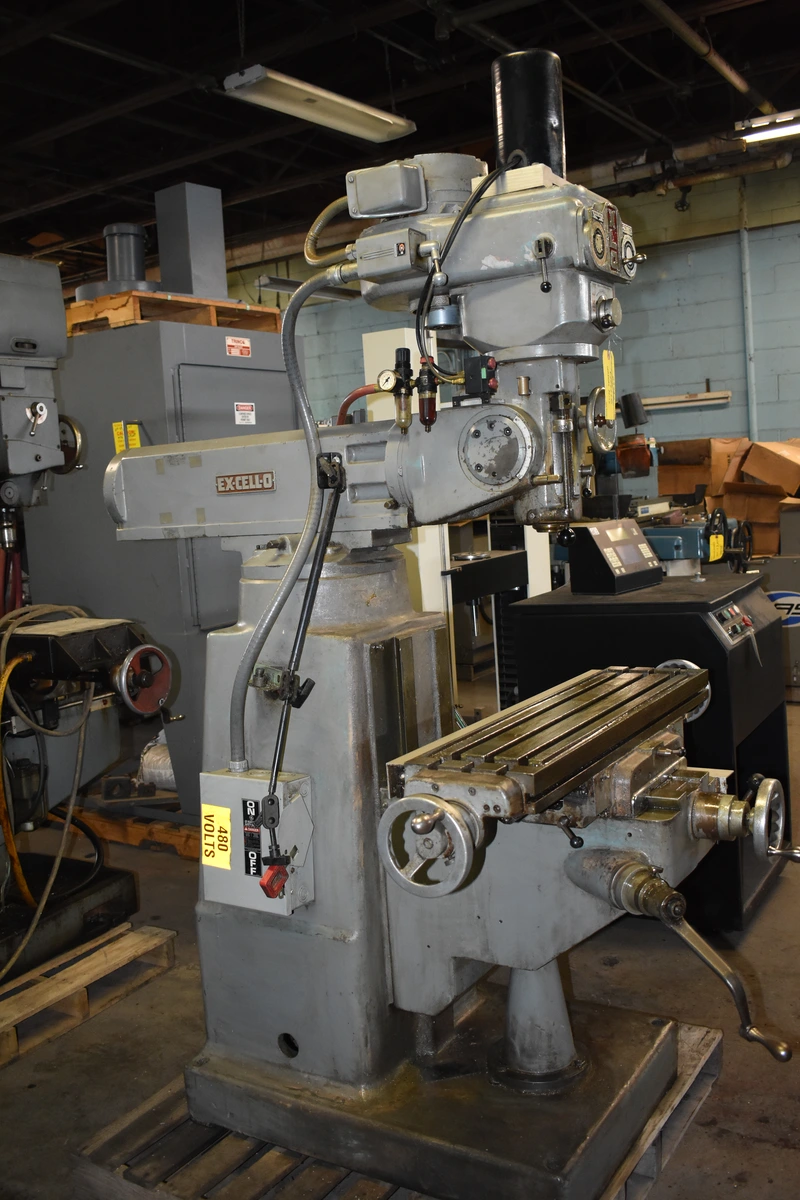

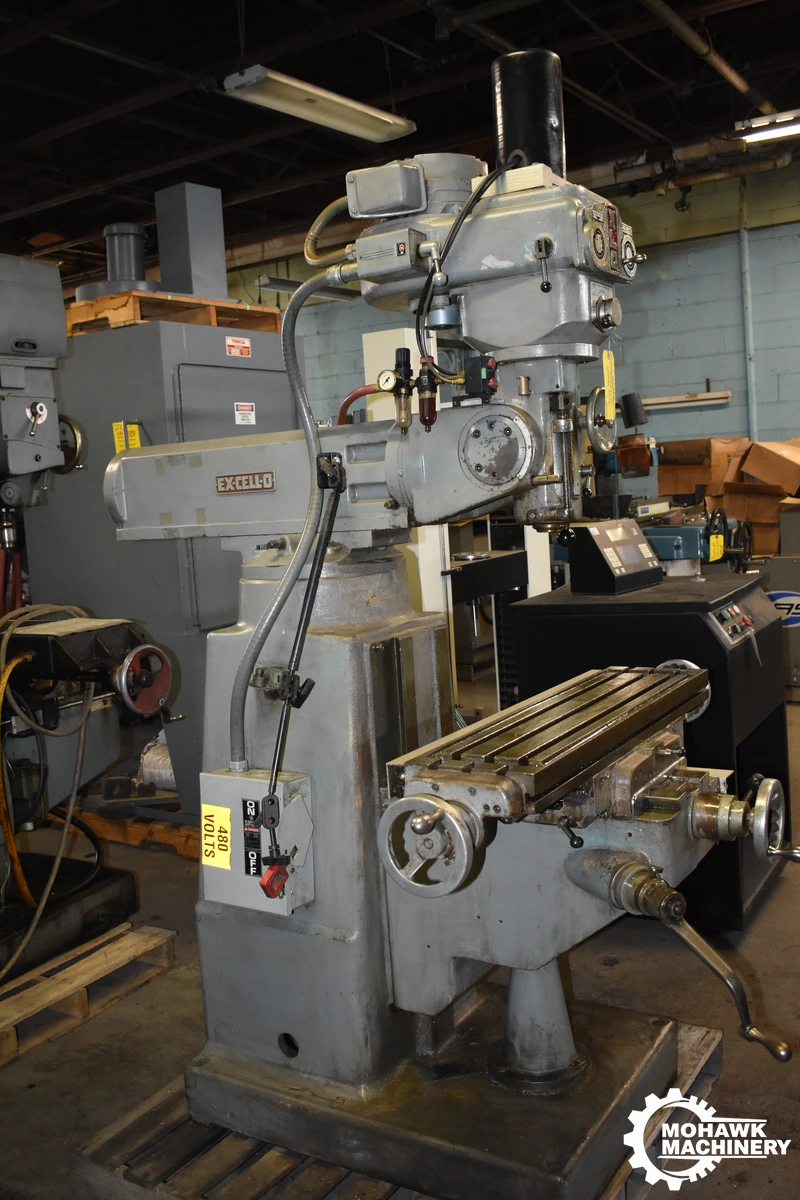

602 EXCELLO RAM TURRET VERTICAL MILL w/NEWELL DIGITAL READOUTS - POWER DRAW BAR
Have one to sell?
ConditionUsed
1 available
$3,450.00 USD
602 EXCELLO RAM TURRET VERTICAL MILL
Serial No 602-2961, Model 602,
602 EXCELLO RAM TURRET VERTICAL MILL
Serial No 602-2961, Model 602,
EQUIPPED WITH:
Newall "Topaz" Digital Readouts
Power Down-Feed to Quill
360 Degree Turret Rotation
Power Draw Bar
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 9" x 36"
Table Longitudinal Travel (X-Axis) 25"
Table Cross Travel (Y-Axis) 13"
Knee Vertical Travel (Z-Axis) 16"
Ram Travel, In/Out 16"
Quill Travel 6"
Spindle Taper #R-8
Spindle-Head Swivel, Forward/Back 45-DEGREES
Spindle-Head Swivel, Right/Left 90-DEGREES
Spindle Speeds, Range 100 to 3800 RPM
(3) Quill Feeds, Range .0015 to .006
Electrical System 220-440/3/60
Weight, Approximately 2500 LBS
F.O.B. OUR WAREHOUSE
602 EXCELLO RAM TURRET VERTICAL MILL
Serial No 602-2961, Model 602,
Imperial
| Table-W | 9" |
| Table-L | 36" |
| Travel-Long | 25" |
| Travel-Cross | 13" |
| RPM | 3,800 RPM |
| Taper | R-8 |
| Dimensions | 9" x 36" |
| Weight | 2500 lbs |
602 EXCELLO RAM TURRET VERTICAL MILL
Serial No 602-2961, Model 602,
EQUIPPED WITH:
Newall "Topaz" Digital Readouts
Power Down-Feed to Quill
360 Degree Turret Rotation
Power Draw Bar
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 9" x 36"
Table Longitudinal Travel (X-Axis) 25"
Table Cross Travel (Y-Axis) 13"
Knee Vertical Travel (Z-Axis) 16"
Ram Travel, In/Out 16"
Quill Travel 6"
Spindle Taper #R-8
Spindle-Head Swivel, Forward/Back 45-DEGREES
Spindle-Head Swivel, Right/Left 90-DEGREES
Spindle Speeds, Range 100 to 3800 RPM
(3) Quill Feeds, Range .0015 to .006
Electrical System 220-440/3/60
Weight, Approximately 2500 LBS
F.O.B. OUR WAREHOUSE
