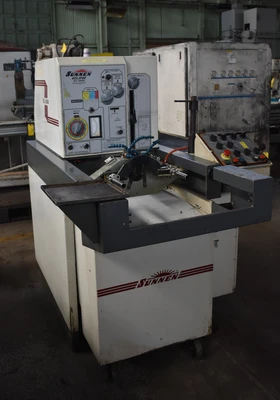

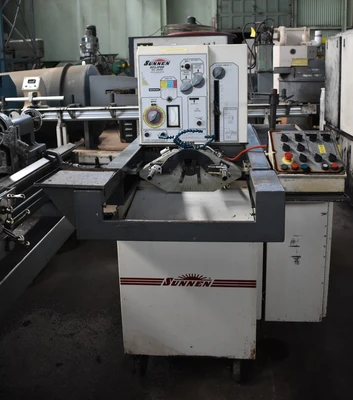

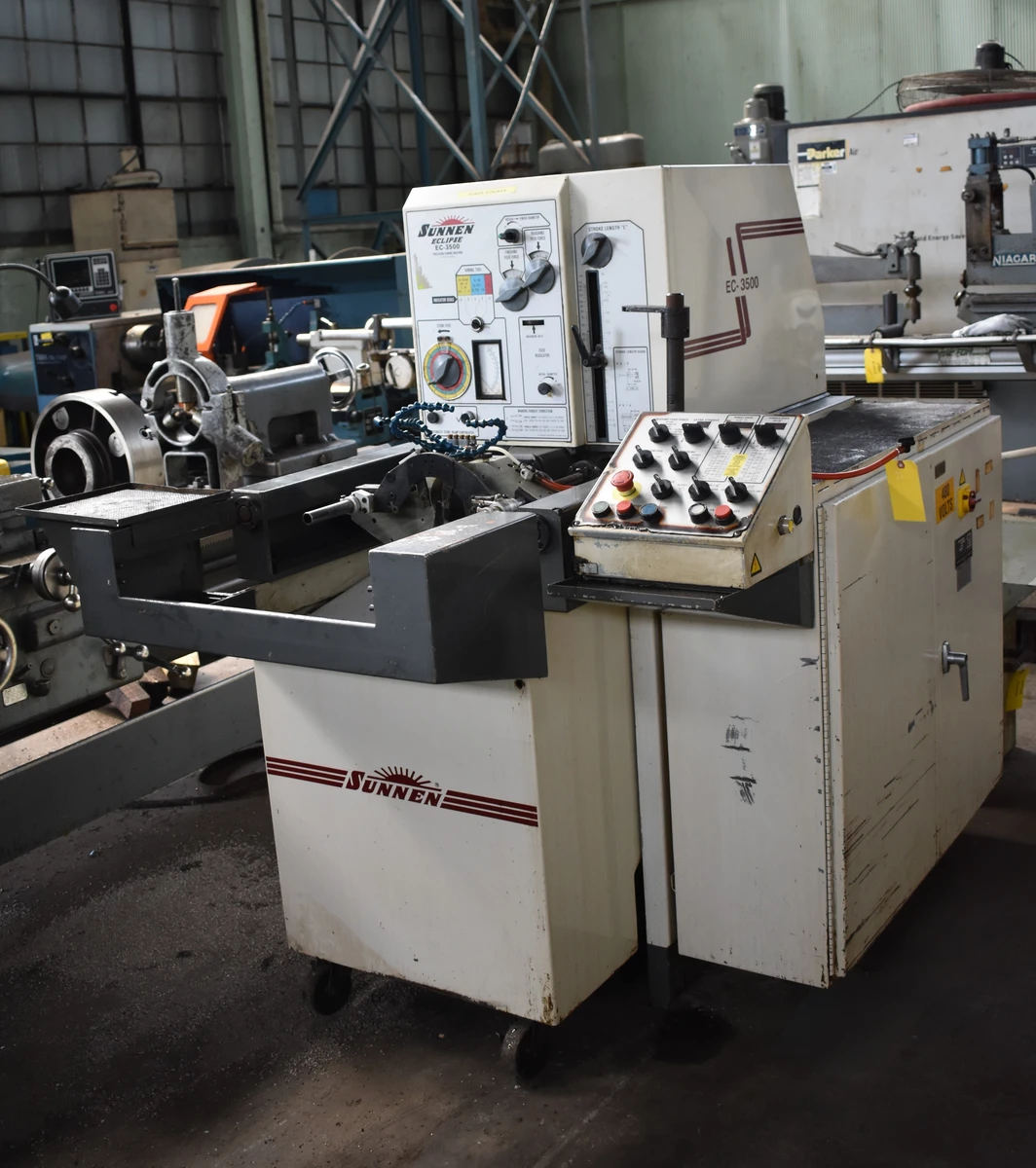

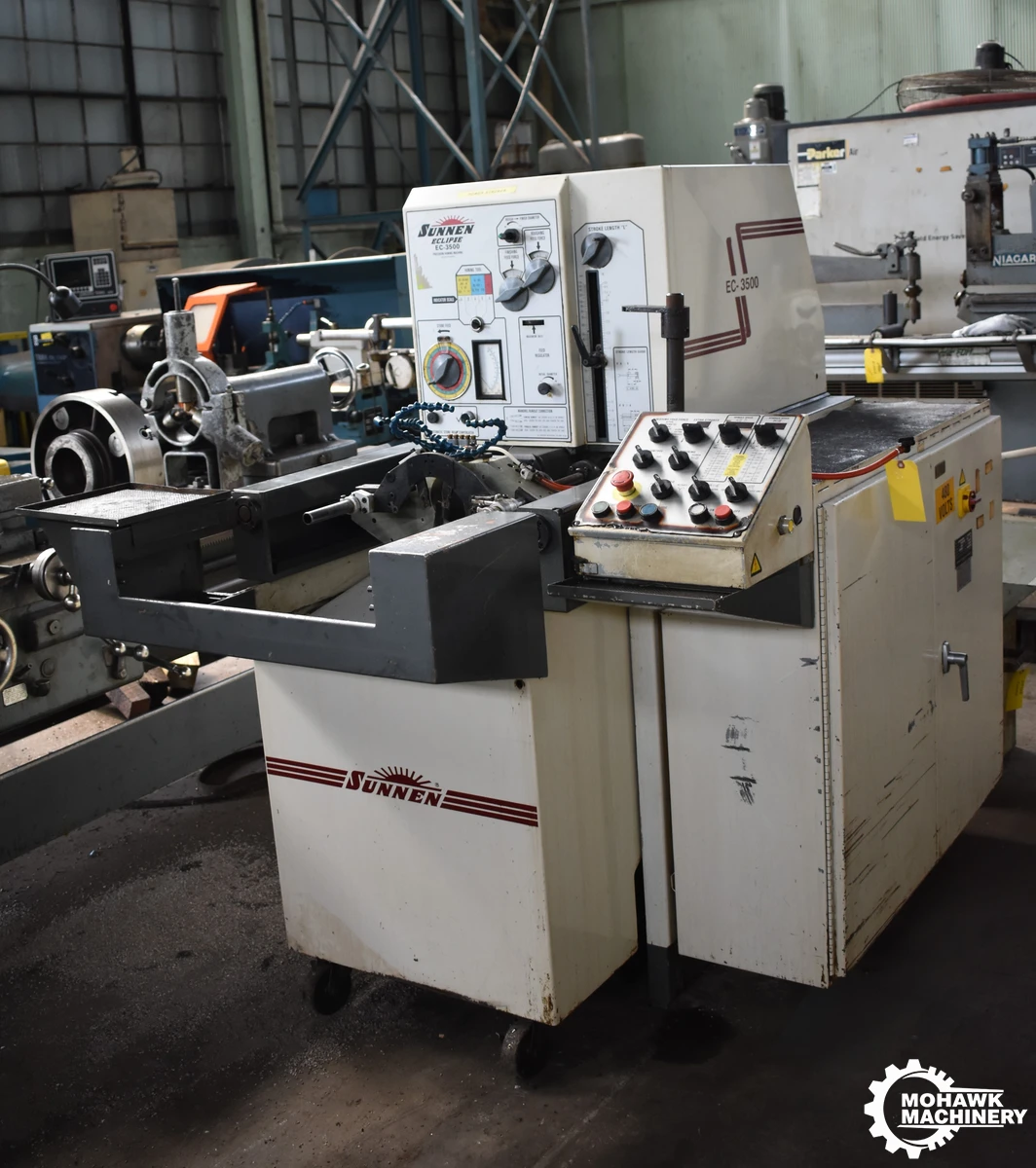

EC-3500-E SUNNEN "ECLIPSE" HORIZONTAL POWER-STROKING HYDRAULIC HONE w/AUTOMATIC SIZE CONTROL - AUTOMATIC STONEWEAR COMPENSATION

EC-3500-E SUNNEN "ECLIPSE" HORIZONTAL HYDRAULIC HONE
Serial No 3S1-1080, Model EC-3500-E

EQUIPPED WITH:
Automatic Size Control
Power Stroking - Manual Stroking
Automatic Stonewear Compensation
Coolant System

CATALOG SPECIFICATIONS:
Diameter Capacity Min, Manual Stroke .......... .060"
Diameter Capacity Max, Manual Stroke .......... 6.5"
Diameter Capacity Min, Power Stroke .......... .060"
Diameter Capacity Max, Power Stroke .......... 4"
Diameter Capacity Min, Auto Sizing .......... .125"
Diameter Capacity Max, Auto Sixing .......... 2"
Stroke Length, Maximum .......... 6.70"
Stroke Length, Minimum .......... .236"
Spindle Speeds, Range .......... 200 to 3000 RPM
Stroke Rates, Range .......... 60 to 500 SPM
Spindle Drive Motor, Horsepower .......... 5.5 HP
Pump Motor, Horsepower .......... 0.25 HP
Stroker Motor, Horsepower .......... 1.5 HP
Floor Space Required, W x D .......... 3'8" x 5'4"
Overall Height .......... 6'3"
Weight, Approximately .......... 1600 LBS
F.O.B. OUR WAREHOUSE
Stroke Length, Maximum: 6.70"
Stroke Length, Minimum: 236"
Spindle Speeds, Range: 200 to 3000 RPM
Stroke Rates, Range: 60 to 500 SPM
Spindle Drive Motor, Horsepower: 5.5 HP
Pump Motor, Horsepower: 0.25 HP
Stroker Motor, Horsepower: 1.5 HP
Overall Height: 6'3"
Weight, Approximately: 1600 LBS

NOTE: THIS MACHINE NEEDS A COMPLETE CONTROL RETROFIT. WE ARE SELLING AS IS.
