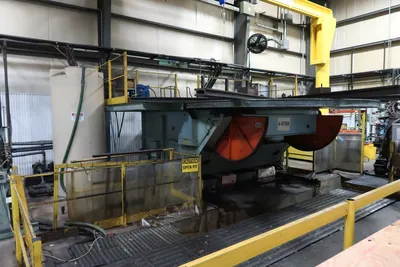

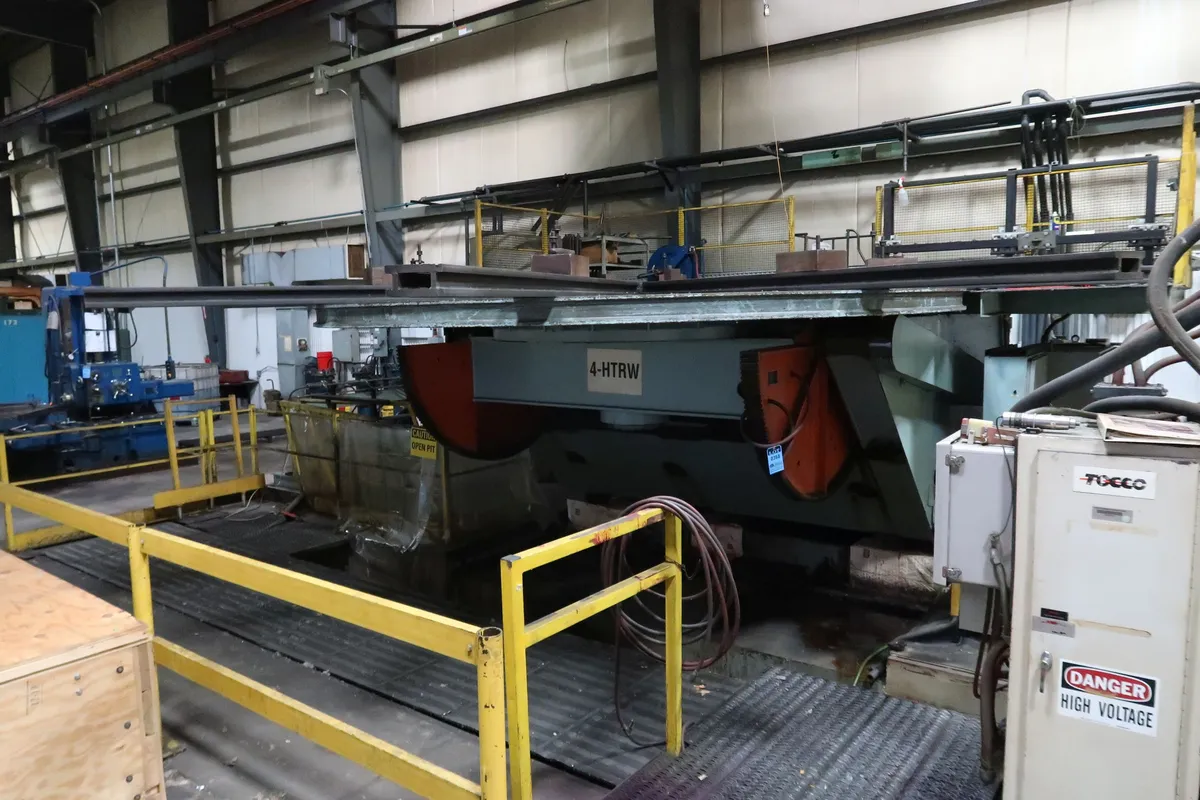

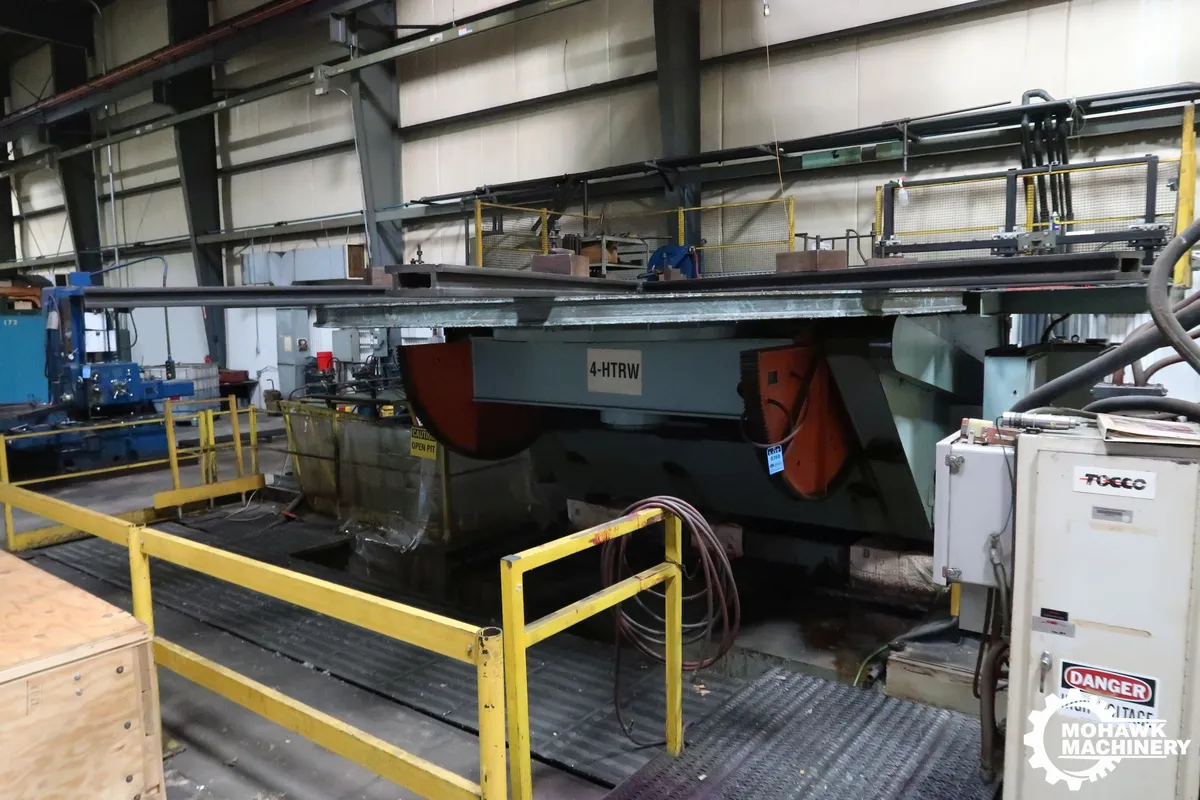

74,000 LB ARONSON "GE850" GEARED ELEVATION FLOOR-MOUNTED VARIABLE SPEED WELDING POSITIONER w/168” DIAMETER TABLE

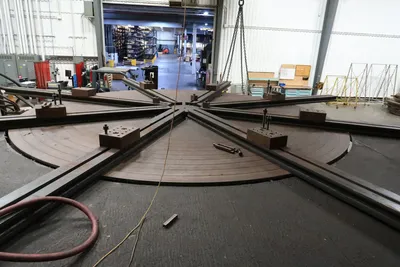

Table Dimensions, Diameter 168"

Table Weight at 6" Eccentricity 74000

Table Weight at 12" Eccentricity 74000 LBS

Table Weight at 18" Eccentricity 58000 LBS

Table Weight at 24" Eccentricity 48600 LBS

Table Weight at 30" Eccentricity 41500 LBS

Table Weight at 36" Eccentricity 36200 LBS

Table Weight at 42" Eccentricity 32100 LBS

Table Weight at 48" Eccentricity 28850 LBS

Table Weight at 54" Eccentricity 26150 LBS

Table Weight at 60" Eccentricity 24000 LBS

Table Rotation Speed, Variable .008 to 0.4 RPM

Table Elevation Speed, Constant 17 IPM

Rotational Torque, Maximum 1020000 LBS

Tilt Torque, Maximum 1800000 LBS

Table Rotation, Degrees 360-DEGREES

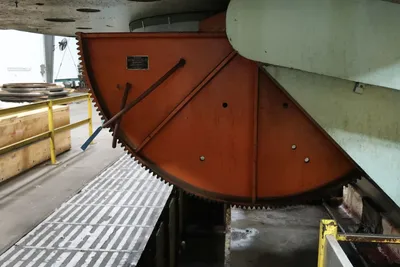

Table Tilt Forward, Degrees 135-DEGREES

Table Elevation, Travel 54"

Table Rotation Motor, Horsepower 20 HP

Table Tilt Motor, Horsepower 15 HP

Table Elevation Motor, Horsepower 25 HP

PRICE FOB OUR WAREHOUSE
