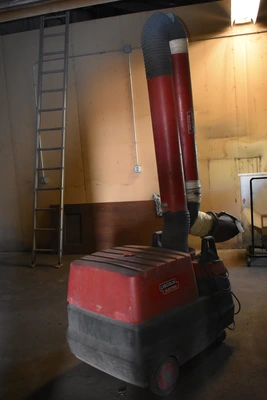

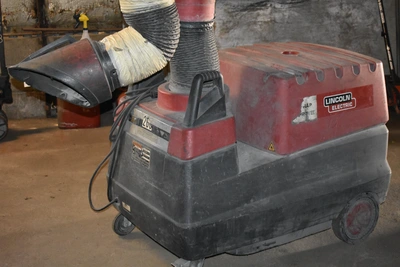

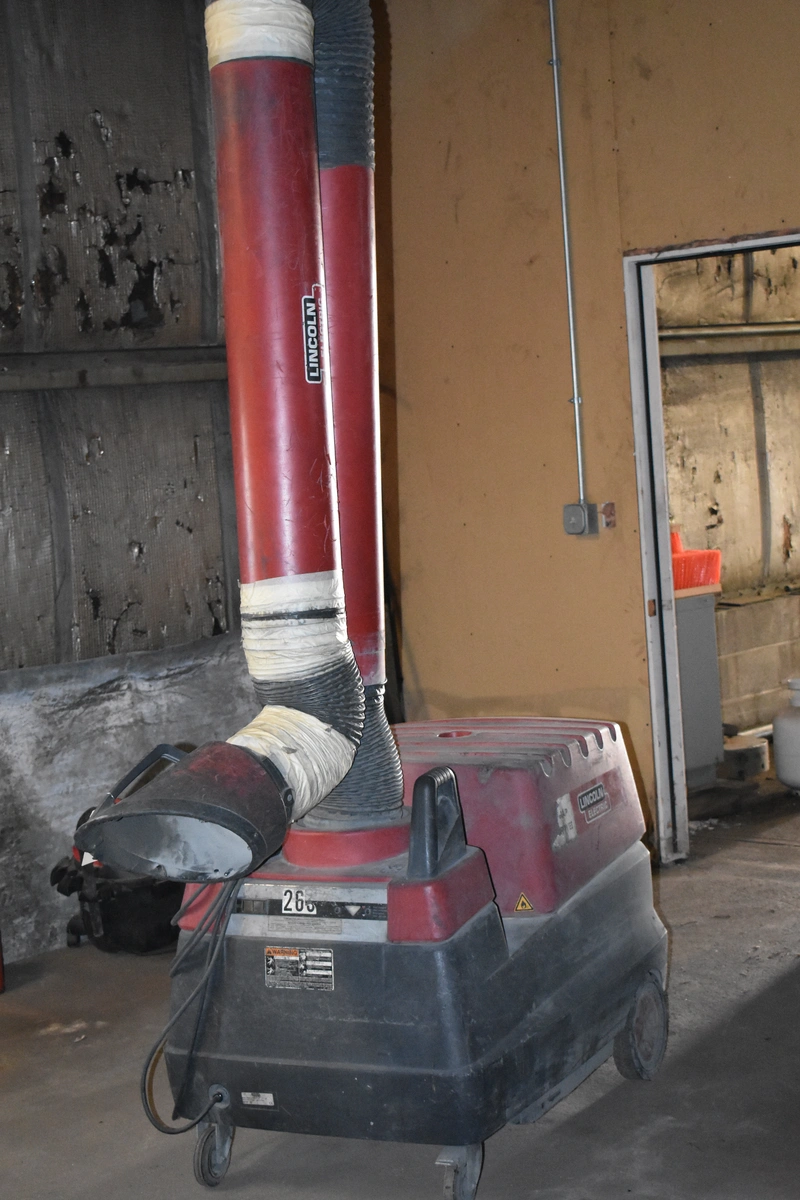

735 CFM LINCOLN ELECTRIC “MOBILFLEX 200-M CPL" PORTABLE WELDING FUME EXTRACTOR w/13’ EXTRACTION ARM - SINGLE PHASE ELECTRICS

200-M CPL LINCOLN ELECTRIC "MOBILFLEX" PORTABLE
WELDING FUME EXTRACTOR w/EXTRACTION ARM
New 2010, Serial No M2571030001, Model 200-M CPL

EQUIPPED WITH:
13' Extraction Arm
Disposable Filters
Front Casters & Rear Wheel

CATALOG SPECIFICATIONS:
Volume Capacity 735 CFM
Disposable Filter Surface Area 538 FT2
Arm Diameter 8"
Arm Length 13'
Arm Rotation Arc 360-DEGREES
Motor Horsepower 1 HP
Electrical System 115/1/60
Overall Dimensions, W x D 48" x 40"
Weight Approximately 250 LBS

NOTE: This Is A Low Vacuum System Designed For Welding Fume Extraction
And Filtration, Reducing Dust And Dirt In The Work Environment. The Size
And Mobility Of This Unit Makes It Ideal For Smaller Manufacturing Facilities,
Schools Or Training Rooms, Fabrication Areas And Other Applications
That Require Light-To-Medium Duty Welding Fume Extraction In
Variable Locations.
F.O.B. OUR WAREHOUSE
