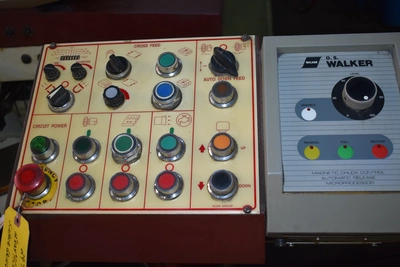

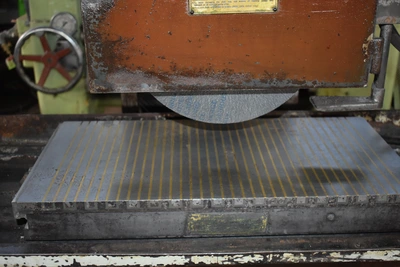

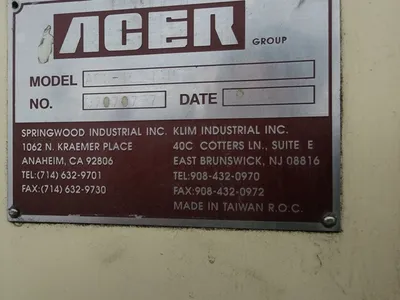

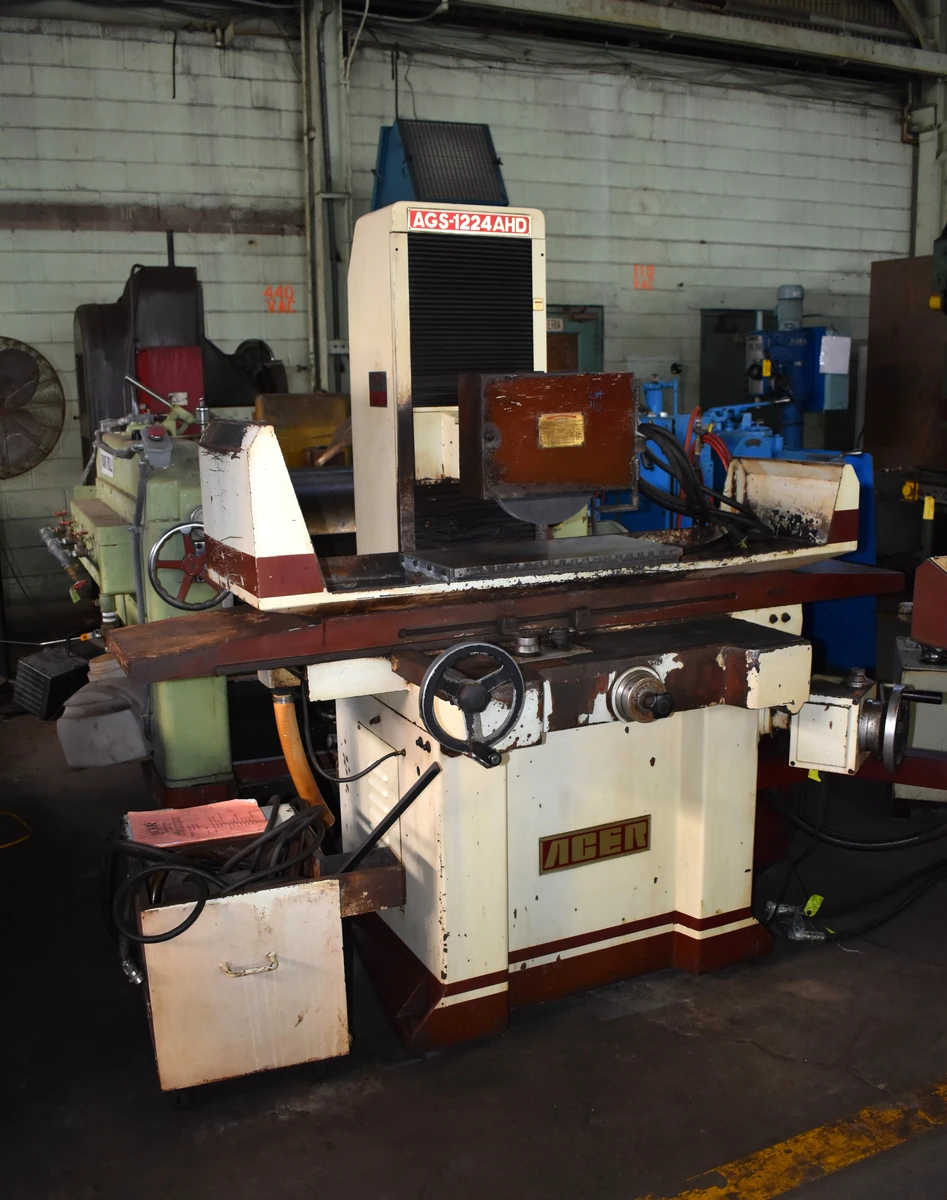

12" X 24" ACER "AGS-1224AHD" AUTOMATIC HORIZONTAL-SPINDLE HYDRAULIC SURFACE GRINDER w/WALKER ELECTRO-MAGNETIC CHUCK - AUTOMATIC POWER DOWN FEED

Table Working Surface W x L .......... 12" x 24"

Grinding Width Capacity Maximum .......... 12"

Grinding Length Capacity Maximum .......... 24"

Height Spindle Center to Table Maximum .......... 23-1/2"

Table Load Capacity .......... 1200 LBS

Table Longitudinal, Power .......... 24-1/2"

Table Cross Travel .......... 14"

Grinding Wheel Diameter Standard .......... 14"

Grinding Wheel Width Standard .......... 1.25"

Grinding Wheel Hole Diameter .......... 5"

Grinding Spindle Speed .......... 1750 RPM

Table Longitudinal Feeds Range .......... 16 to 80 FPM

Crossfeed Travel Feeds Automatic .......... 0 to 1"

Spindle Auto Downfeed Range .......... .0001 to .01 IPR

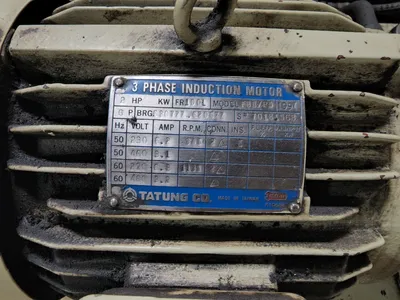

Spindle Horsepower .......... 5 HP

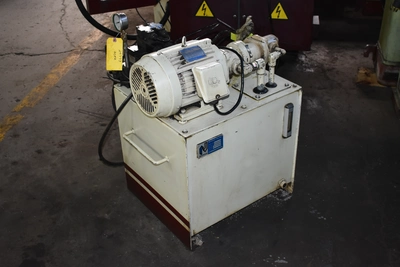

Hydraulic Motor Horsepower .......... 2 HP

Floor Space Required .......... 5'6" x 6'

Weight, Approximately .......... 4840 LBS

F.O.B. OUR WAREHOUSE
