50 TON MINSTER "S2-50-48-24" STRAIGHT-SIDE DOUBLE CRANK PRESS w/CIECO PLC CONTROLS - AIR COUNTERBALANCE

Have one to sell?

sales@mohawkmachinery.com

$14,500.00 USD

ConditionUsed

Quantity

1 available

MINSTER S2-50-48-24 Straight-Side Presses | Mohawk Machinery (1)

MINSTER S2-50-48-24 Straight-Side Presses | Mohawk Machinery (2)

MINSTER S2-50-48-24 Straight-Side Presses | Mohawk Machinery (3)

MINSTER S2-50-48-24 Straight-Side Presses | Mohawk Machinery (4)

MINSTER S2-50-48-24 Straight-Side Presses | Mohawk Machinery (5)

MINSTER S2-50-48-24 Straight-Side Presses | Mohawk Machinery (6)

MINSTER S2-50-48-24 Straight-Side Presses | Mohawk Machinery (7)

MINSTER S2-50-48-24 Straight-Side Presses | Mohawk Machinery (8)

MINSTER S2-50-48-24 Straight-Side Presses | Mohawk Machinery

Have one to sell?

Overview

Type:

Straight-Side Presses

Manufacturer:

Model:

S2-50-48-24

Stock #:

29775

Status:

For Sale

Description

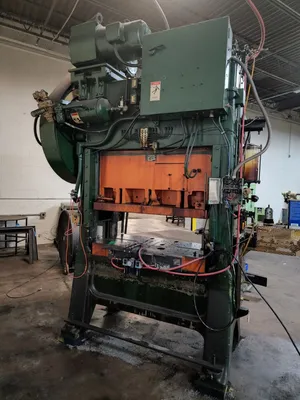

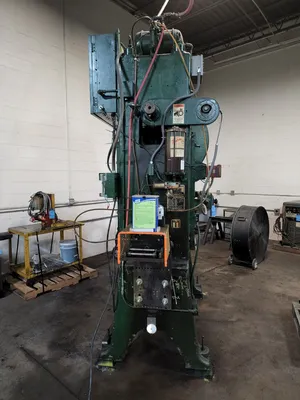

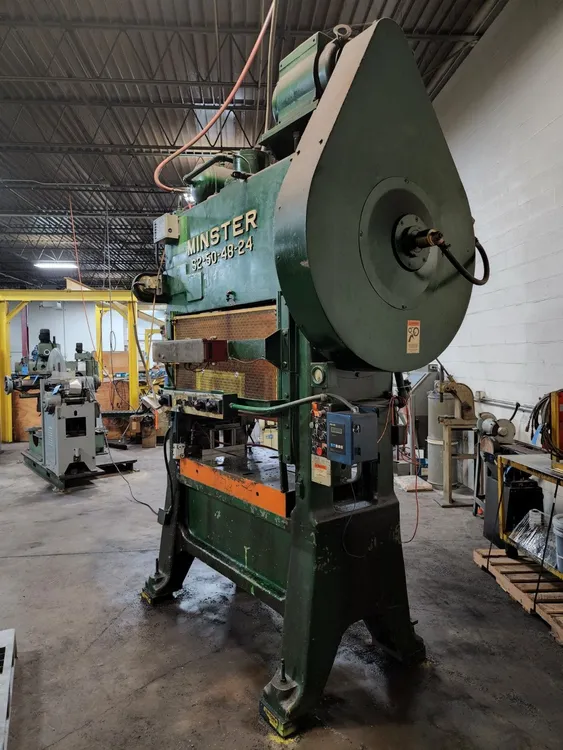

50 TON MINSTER STRAIGHT-SIDE DOUBLE CRANK PRESS

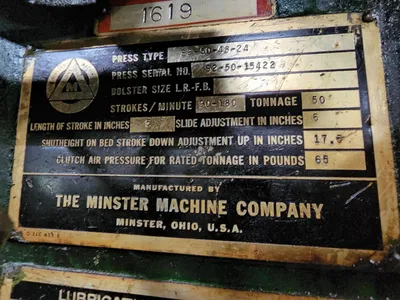

Serial No S2-50-15422, Model S2-50-48-24

Equipped With

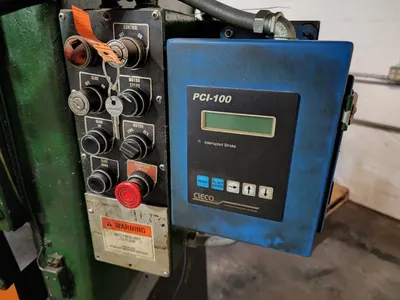

DC1-100 Cieco PLC Controls

AIR Clutch & Brake

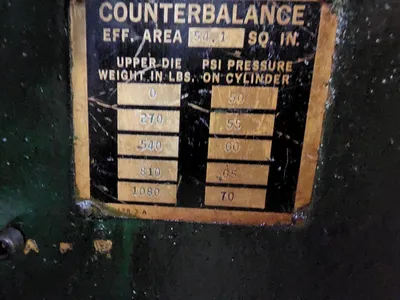

Air Counterbalance

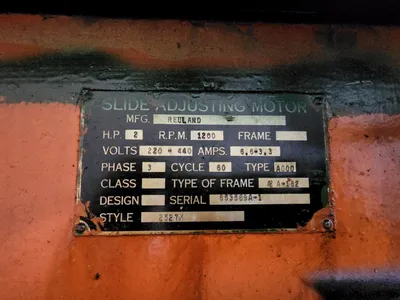

Power Ram Adjustment

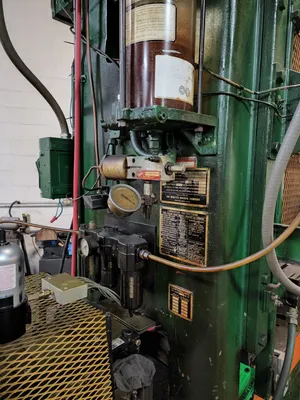

Trabon Lubrication System

Specifications

ImperialMetric

Tonnage	50 T	45.359 t
Stroke	5"	127 mm
Shut Height	17"	431.8 mm
SPM	180 strokes/min.	180 strokes/min.
Vari Speed (Yes/No)	Yes	Yes
Bed W	24"	609.6 mm
Bed L	48"	1,219.2 mm
Crank (Single/Double)	Double	Double
Air Clutch (Yes/No)	Yes	Yes
Dimensions	Not available	Not available
Weight	15000	15000

Tonnage Capacity, (Nominal) 50 TON

Stroke Length 5"

Shut Height to Bed, (SDAU) 17"

Shut Height to Bolster, (SDAU) 13.5"

Ram Adjustment, (Power) 6"

Slide Area, L-R x F-B 48" x 24"

Bed Area, L-R x F-B 48" x 24"

Bolster Thickness 3.5"

Bed Opening, L-R x F-B 42" x 15"

Distance Between Uprights 10.5"

Strokes Per Minute, Variable 90 to 180 SPM

Weight, Approximately 15000 LBS

F.O.B. OUR WAREHOUSE
