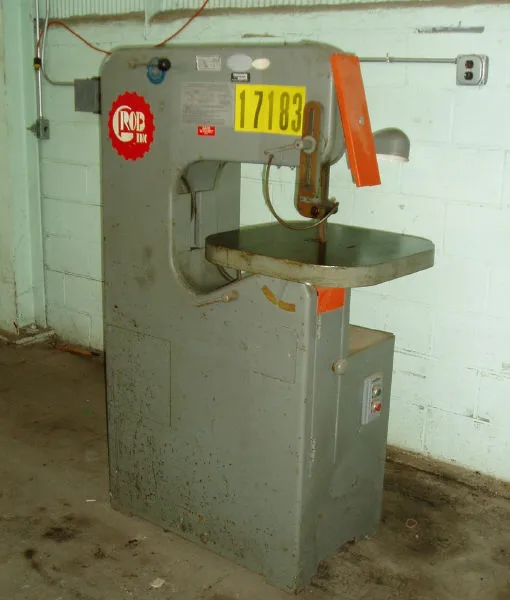

FAB-18 GROB VERTICAL LAPPER & DIE-FILER

FAB-18 GROB LAPPER & DIE-FILER
Serial No 6819, Model FAB-18

CATALOGUE SPECIFICATIONS:
Throat Depth 18"
Opening Filed, Minimum 1/4" x 5/16"
Work Height Capacity, Maximum 7"
File Chain Heavy Duty 20 Files 5" x 1/2"
File Chain Light Duty 33 Files 3" x 1/4"
(5) File Speeds, Range 36 to 175 FPM
Main Motor, Horsepower/RPM 0.5 HP/1725 RPM
Electrical System 220-440/3/60
Overall Dimensions, W x D 2'4" x 3'4"
Overall Height 5'6"
Weight, Approximately 510 LBS

NOTE: This Machine May Be Quickly Set Up With
Different Shaped Files For External As Well As
Internal Filing & Lapping. The File Chains Are
Of A Simple Self-Locking Design.
F.O.B. OUR WAREHOUSE
