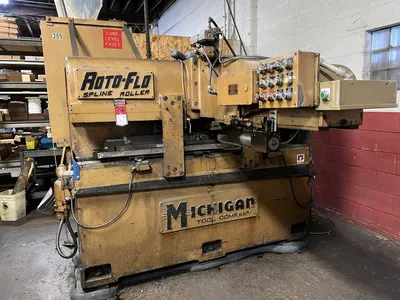

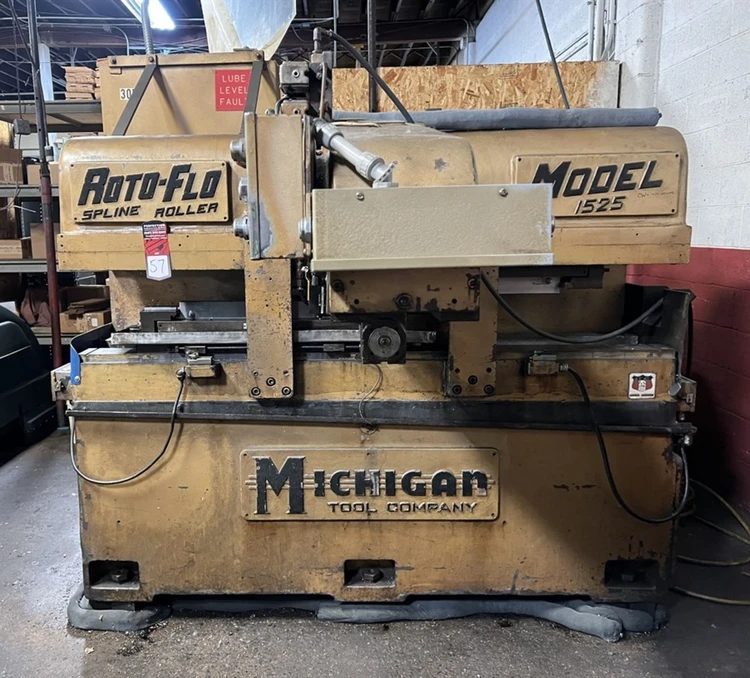

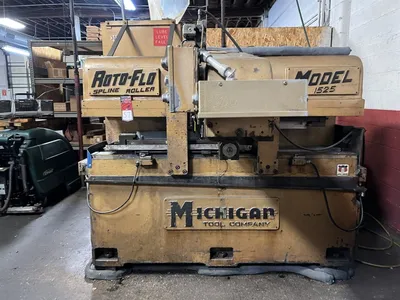

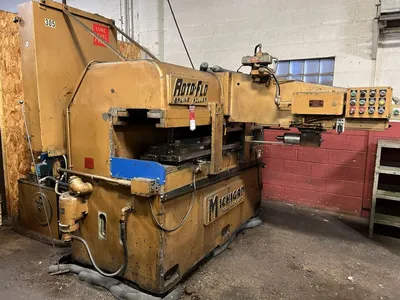

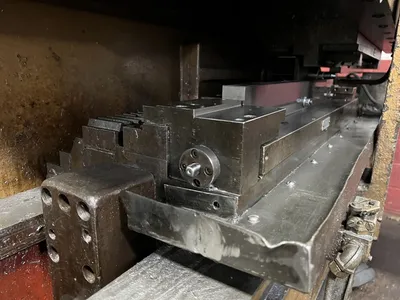

3.625" x 24" MICHIGAN ANDERSON 1525 "ROTO-FLO" HYDRAULIC SPLINE ROLLER -w/HYDRAULC OVERARM SUPPORT - 3.625" RACK WIDTH - 24" RACK LENGTH - 30" STROKE

1525 MICHIGAN/ANDERSON-TOOL "ROTO-FLO"
SPLINE ROLLER
Serial No 2920, Model 1225, Series Roto-Flo

EQUIPPED WITH:
Hydraulic Operated Overarm Support Assembly
Tailstock

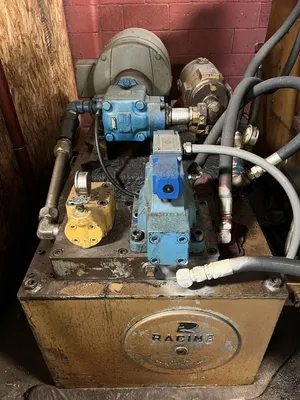

Racine External Hydraulic Unit
Centralized Lube System
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Rack Length, Maximum .......... 24"
Stroke Length, Maximum .......... 30"
Rack Face Width, Maximum .......... 3.625"
Pitch Diameter, Range .......... 20/40
Pitch Diameter, Range .......... 32/64
Hydraulic Motor Horsepower .......... 20 HP/1175 RPM
Electrical System .......... 208-220-440/3/60
Overall Dimension, L x W .......... 80" x 74"
Overall Height .......... 72"
Weight Approximately .......... 18500 LBS

NOTE: The Roto-Flo Process Is One In Which The Metal
Periphery Of A Part Is Displaced From Its Undisturbed
Condition (Such As A Straight Shaft) By Cold Working
Until It Assumes The Desired Shape. The Entire Forming
Process Takes Place In A Matter Of Seconds As One
Continuous Operation.
F.O.B. OUR WAREHOUSE
Rack Length, Maximum: 24"
Stroke Length, Maximum: 30"
Rack Face Width, Maximum: 3.625"
Pitch Diameter, Range: 20/40
Pitch Diameter, Range: 32/64
Hydraulic Motor Horsepower: 20 HP/1175 RPM
Electrical System: 208-220-440/3/60
Overall Height: 5'10"
Weight Approximately: 18500 LBS
