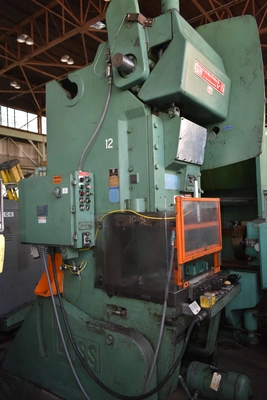

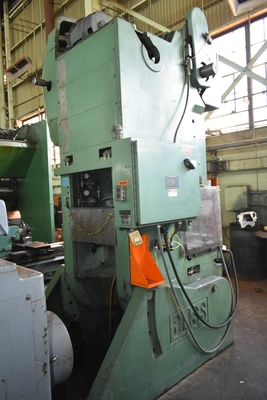

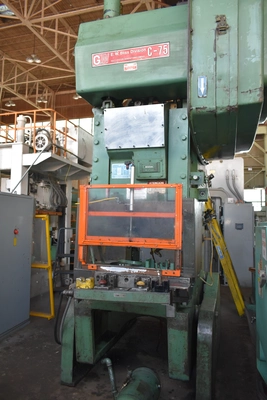

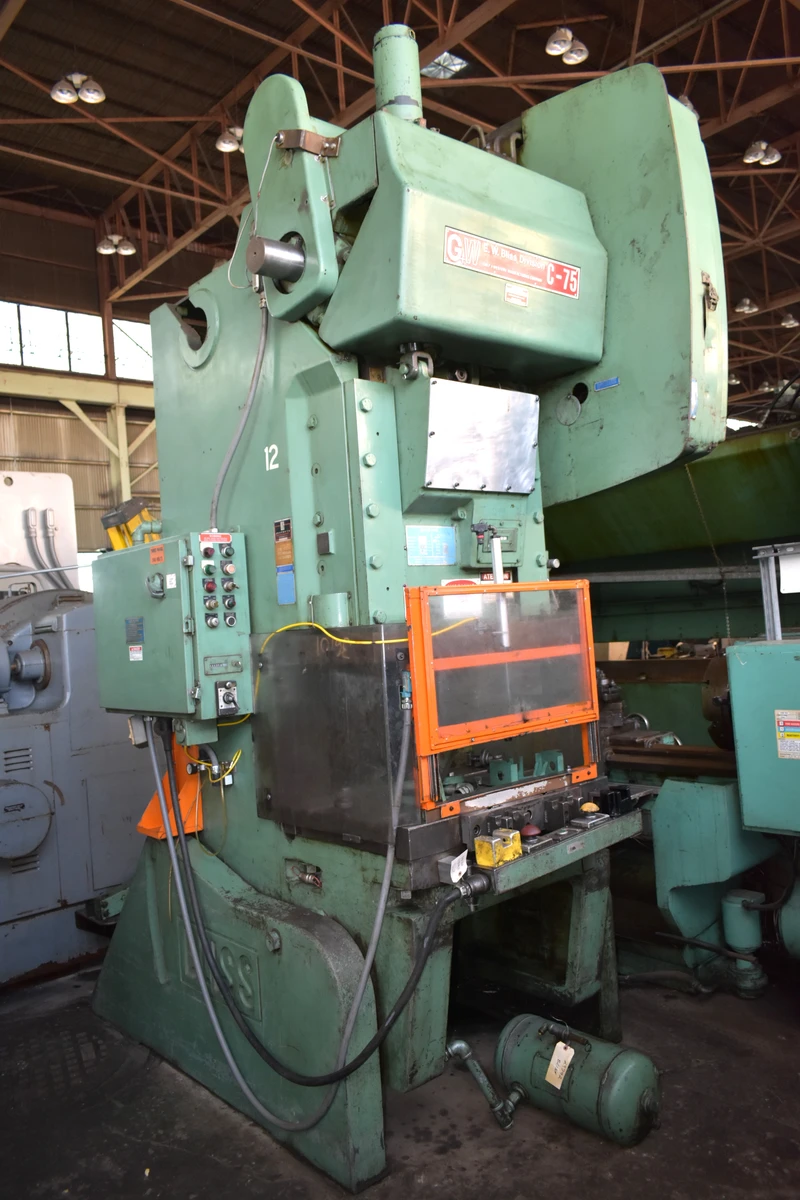

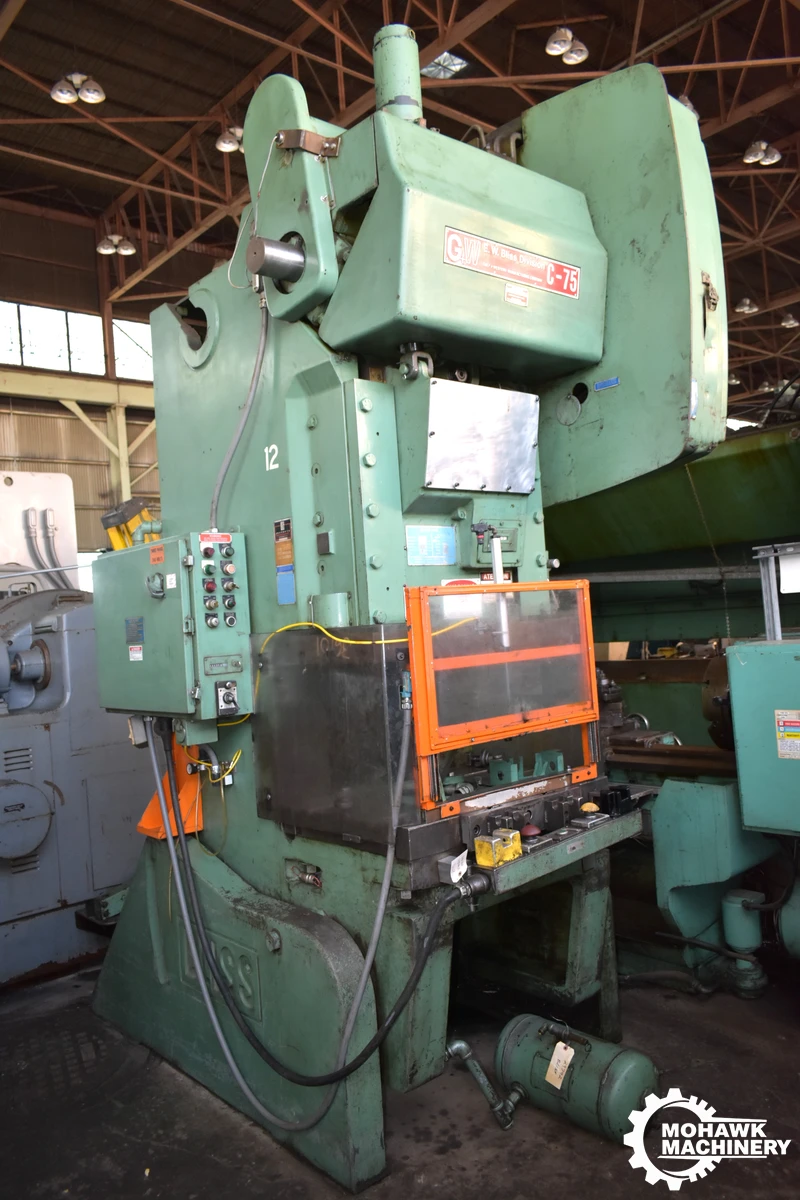

75 TON BLISS "C75"FLYWHEEL-TYPE O.B.I. PRESS w/AIR CLUTCH & BRAKE - 36" X 24" BOLSTER - 5" STROKE - 90 SPM
Have one to sell?
ConditionUsed
1 available
$24,500.00 USD
75 TON BLISS (EW) O.B.I. PRESS
Serial No H67851, Model C75
75 TON BLISS (EW) O.B.I. PRESS
Serial No H67851, Model C75
EQUIPPED WITH:
AIR Clutch & Brake
Slide Adjustment
Push Button Operators Control
Automatic Lubrication System
CATALOG SPECIFICATIONS:
Tonnage Capacity 75 TON
Stroke Length 5"
Shut Height, (SDAU) 16"
Ram Adjustment 3.5"
Slide Area, L-R x F-B 24" x 18"
Bolster Area, L-R x F-B 36" x 24"
Bolster Thickness 3.5"
Strokes per Minute 90 SPM
Motor, Horsepower/RPM 7.5 HP/1800 RPM
Electrical System 208-220-440/3/60
Overall Dimensions, W x D 70" x 72"
Overall Height 135"
Weight, Approximately 19500 LBS
F.O.B. OUR WAREHOUSE
75 TON BLISS (EW) O.B.I. PRESS
Serial No H67851, Model C75
Imperial
| Tonnage | 75 T |
| Stroke | 5" |
| Shut Height | 16" |
| Bed W | 36" |
| Bed L | 24" |
| SPM | 90 strokes/min. |
| Air Clutch (Yes/No) | 'Yes' |
| Type (BG, Double Action, FW) | '' |
| Crank (Single/Double) | '' |
| Dimensions | 70 x 72 |
| Weight | 19500 |
75 TON BLISS (EW) O.B.I. PRESS
Serial No H67851, Model C75
EQUIPPED WITH:
AIR Clutch & Brake
Slide Adjustment
Push Button Operators Control
Automatic Lubrication System
CATALOG SPECIFICATIONS:
Tonnage Capacity 75 TON
Stroke Length 5"
Shut Height, (SDAU) 16"
Ram Adjustment 3.5"
Slide Area, L-R x F-B 24" x 18"
Bolster Area, L-R x F-B 36" x 24"
Bolster Thickness 3.5"
Strokes per Minute 90 SPM
Motor, Horsepower/RPM 7.5 HP/1800 RPM
Electrical System 208-220-440/3/60
Overall Dimensions, W x D 70" x 72"
Overall Height 135"
Weight, Approximately 19500 LBS
F.O.B. OUR WAREHOUSE
