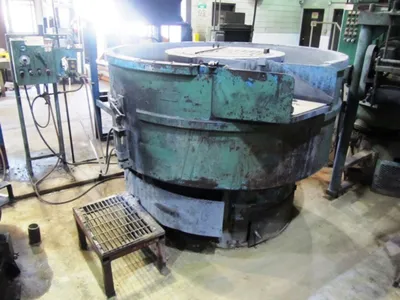

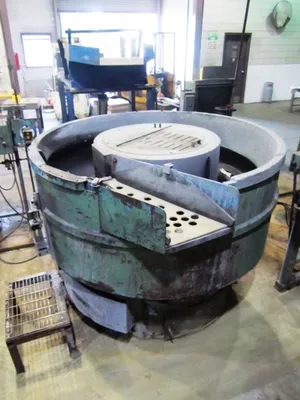

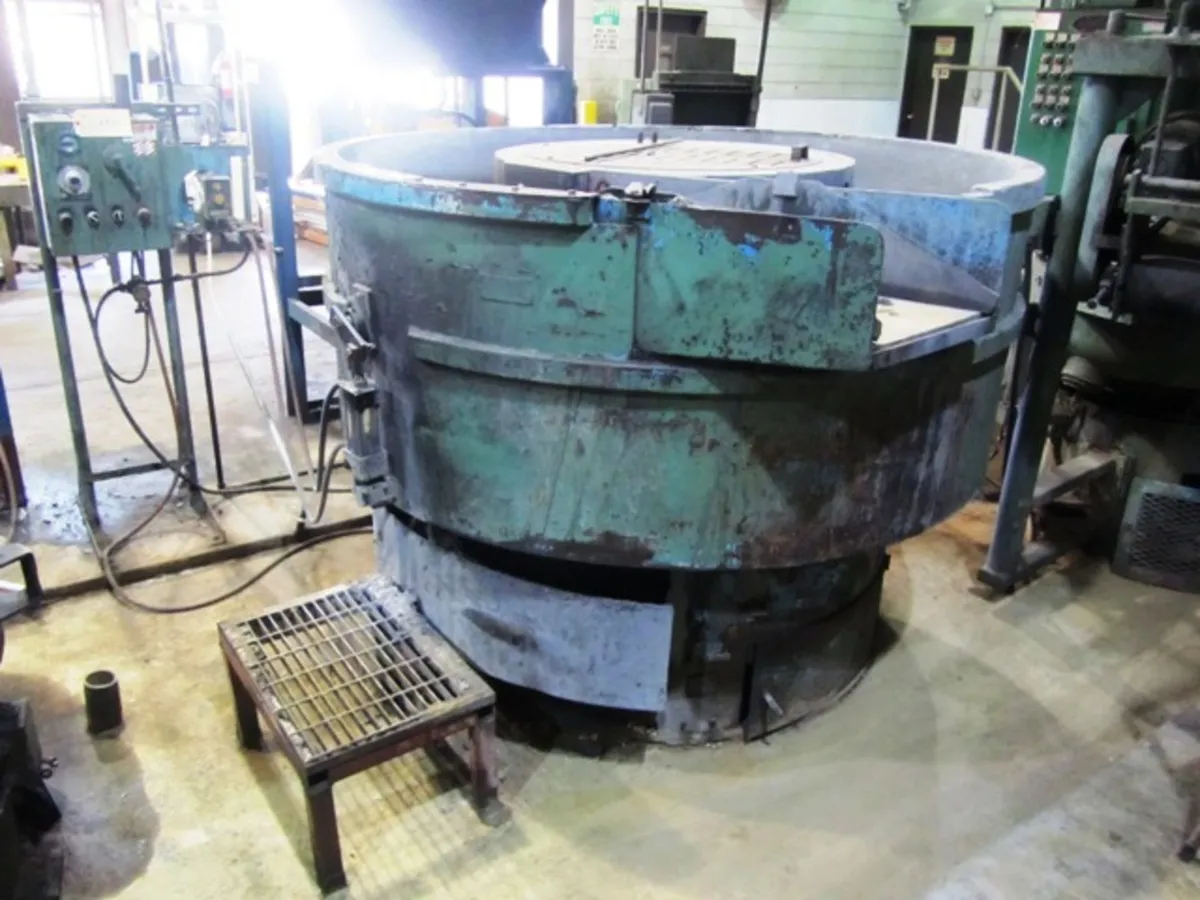

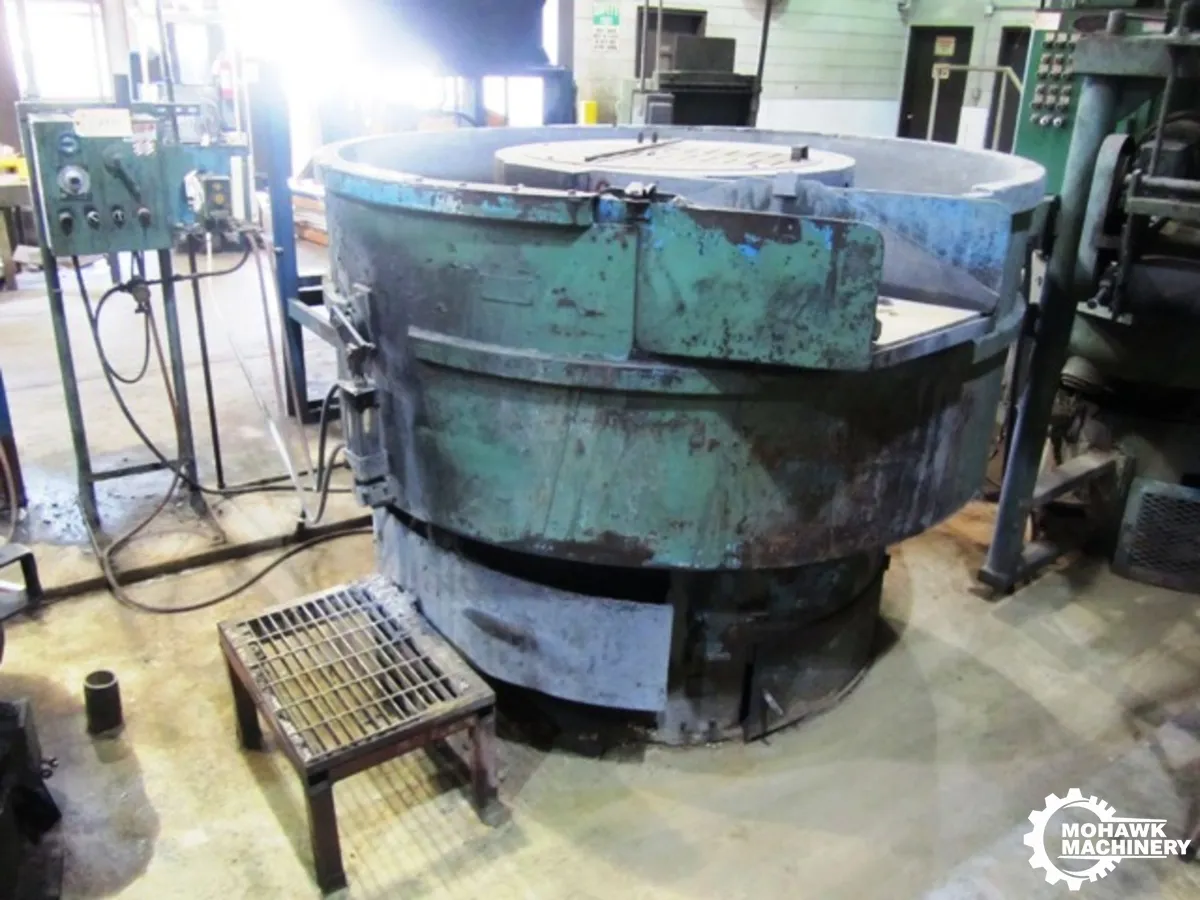

20 CU FT ROTO-FINISH "ST-20BCPT" SPIRATRON VIBRATORY BURNISHER FINISHER w/PNEUMATIC GATE - 10 HP MOTOR

20 CU.FT. ROTO-FINISH "ST20BCPT "SPIRATRON"
VIBRATORY BURNISHING MACHINE
Model ST20BCPT, Series "Spiratron",

EQUIPPED WITH:
Pneumatic Gate
Polyurethane Chamber Lining

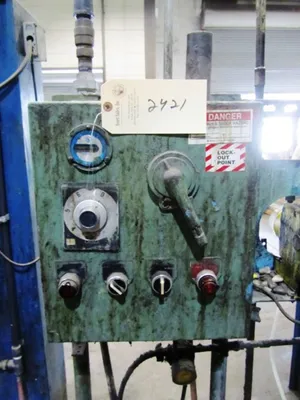

Electrical Control Panel w/Variable Speed & Timer
(3) 6" Diameter Drains

CATALOG SPECIFICATIONS:
Operating Capacity Cubic Feet, Maximum .......... 20 CU FT
Tub Dimensions, Diameter (Outside) .......... 78"
Process Channel Width .......... 17"
Lining Thickness .......... .750"
Main Motor, Horsepower .......... 10 HP
Electrical System .......... 230-460/3/60
Overall Height .......... 60"
Weight, Approximately .......... 8000 LBS
F.O.B. OUR WAREHOUSE
Tub Dimensions, Diameter (Outside): 78"
Process Channel Width: 17"
Lining Thickness: 750"
Main Motor, Horsepower: 10 HP
Electrical System: 230-460/3/60
Overall Height: 60"
Weight, Approximately: 8000 LBS
