30" SCHERR-TUMICO "22-2500" CNC OPTICAL COMPARATOR w/MICRO VU Q16 CONTROLS - SURFACE & PROFILE ILLUMINATION - (2) LENSES
Have one to sell?
$6,950.00 USD
ConditionUsed
1 available

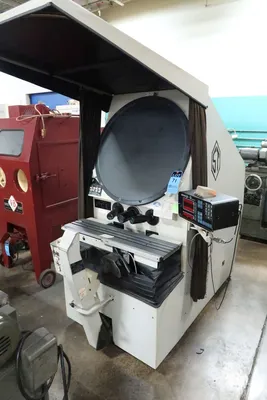

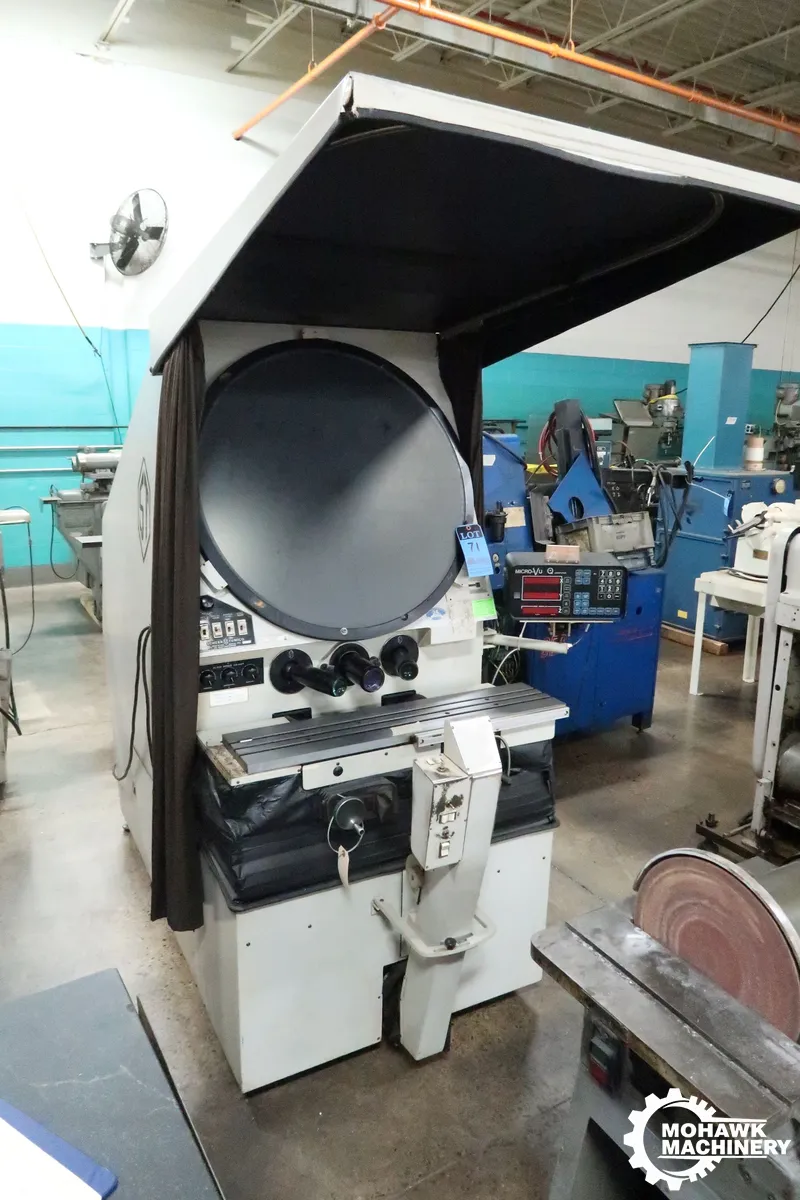

30" SCHERR-TUMICO #22-2500 CNC OPTICAL COMPARATOR
Serial No D841204, Model 22-2500

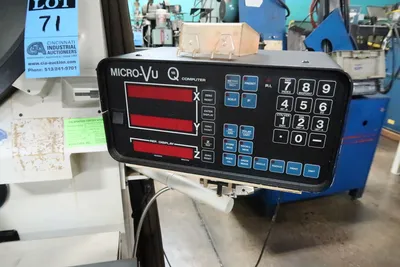

Micro Vu Q16 CNC Controls w/Digital Readouts

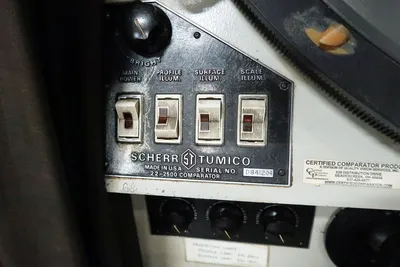

Surface Illumination - Profile Illumination
Scale Illumination
Power Horizontal & Rotary Adjustments (Variable Speed)
Power Vertical Table Elevation (Variable Speed)

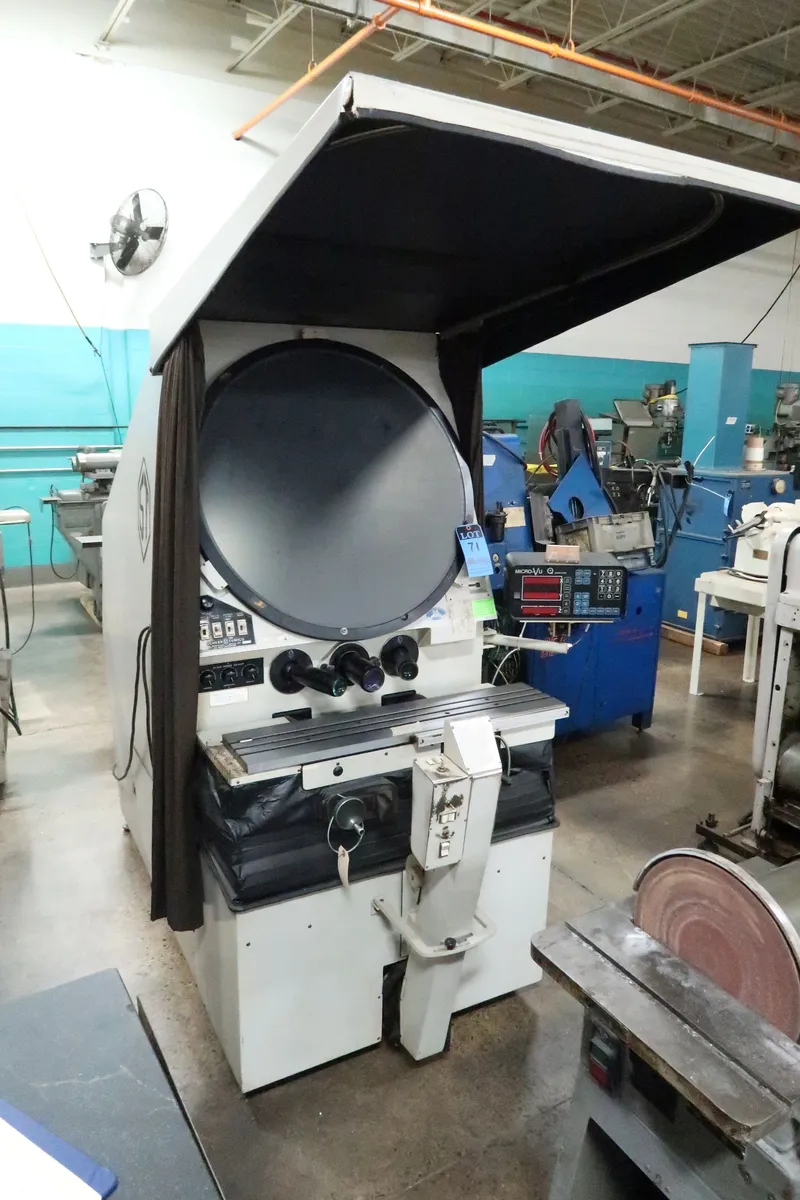

Light Screen w/Curtain - Telecentric Stop - 10X & 20X Lenses

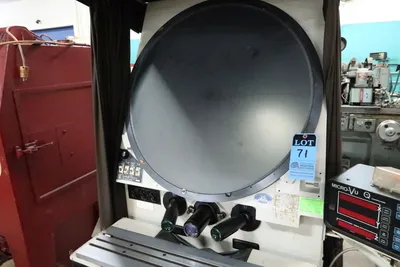

Screen Diameter 30"

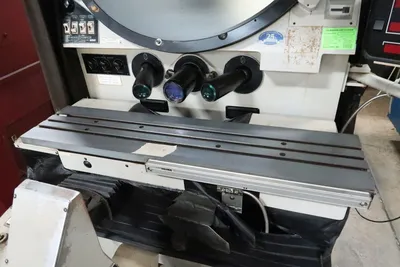

Table Dimensions, W x L 8" X 35"
Measuring Range, Horizontal 12"
Measuring Range, Vertical 9"
Work Load Capacity, Maximum 500 LBS
Focal Travel Measuring Range 3"
Focal Plane to Front Mirror Housing 6"
Measuring Range, Angular 360-DEGREES
Electrical System 115 VOLT
Floor Space Required 3' X 8'
Weight, Approximately 1700 LBS
F.O.B. OUR WAREHOUSE
