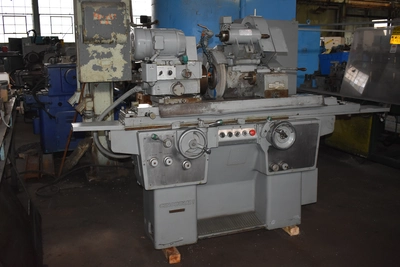

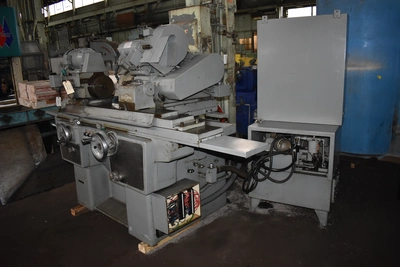

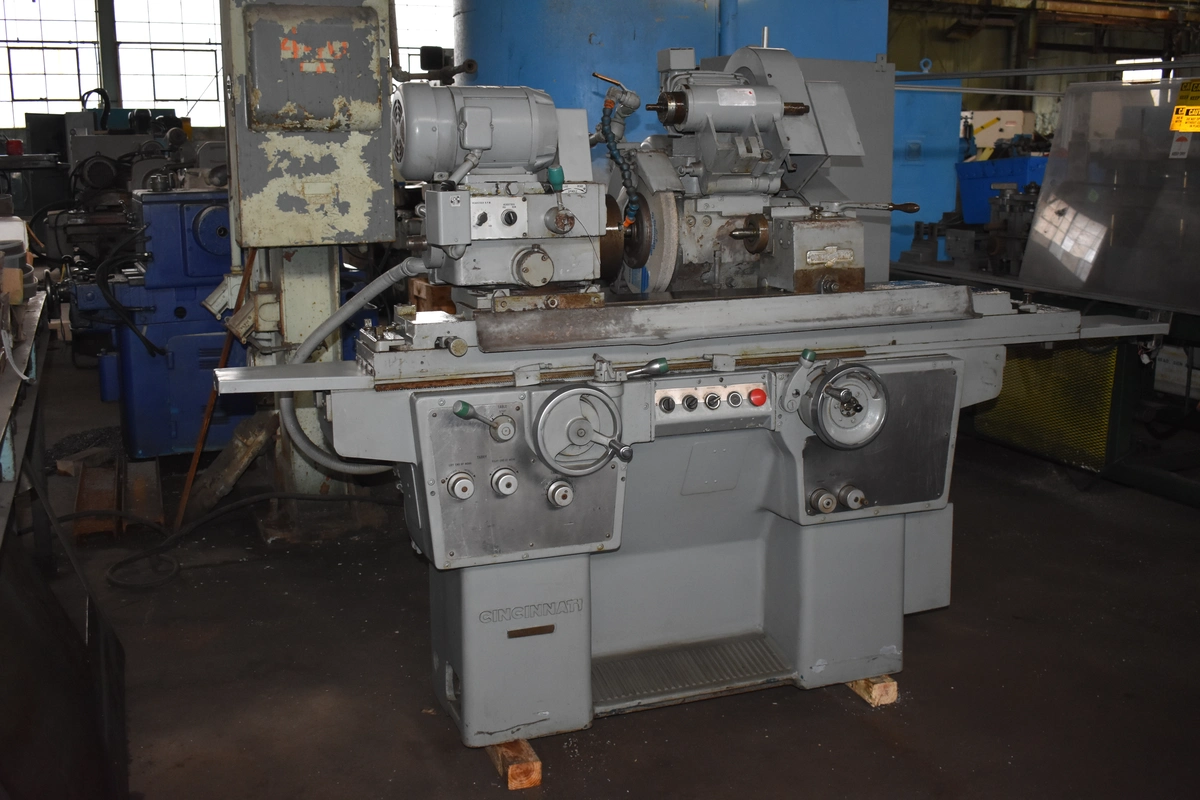

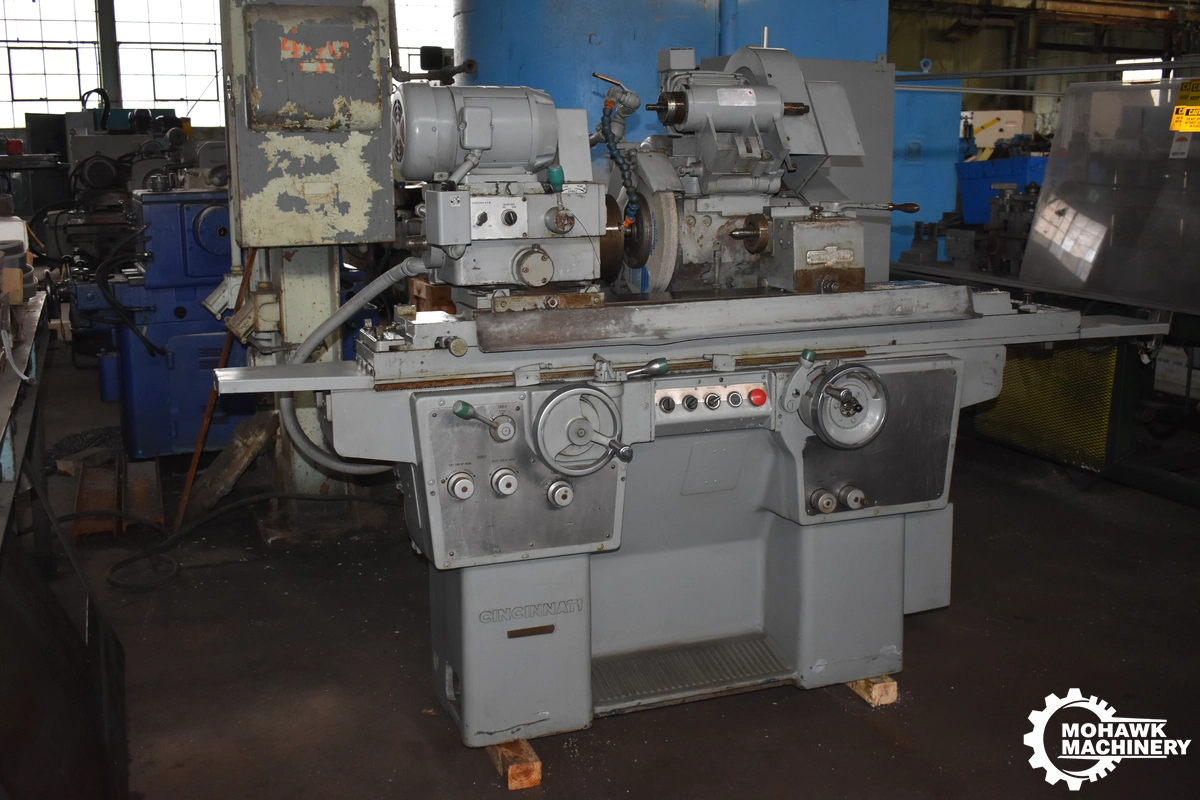

10" x 24" CINCINNATI-MILACRON "DH" UNIVERSAL CYLINDRICAL GRINDER w/SWING-DOWN INTERNAL GRINDING SPINDLE ATTACHMENT

Swing Over Table, Maximum .......... 10.9375"

Distance Between Centers, Nominal .......... 24"

Grinding Wheel Diameter, Standard .......... 14"

Grinding Wheel Width, Standard .......... 1"

Grinding Wheel Hole Diameter .......... 5"

Table Swivel Angle Toward Wheelhead .......... 8-DEGREES

Table Swivel Angle Away Wheelhead .......... 3-DEGREES

Lower Grinding Wheelhead Swivel Range .......... 110-DEGREES

Upper Grinding Wheelhead Swivel Range .......... 90-DEGREES

Workhead and Tailstock Center Tapers .......... #7 JARNO

Grinding Wheel Speed, Maximum .......... 2060 RPM

Workhead Spindle Speeds, Range .......... 50 to 600 RPM

Table Longitudinal Feeds, Range .......... 3 to 220 IPM

Grinding Wheelhead Spindle Motor .......... 3 HP/1740 RPM

Internal Grinding Attachment Motor .......... 2 HP

Workhead Motor, Horsepower .......... 1 HP

Weight, Approximately .......... 5700 LBS

F.O.B. OUR WAREHOUSE
Swing Over Table, Maximum: 10.9375"
Distance Between Centers, Nominal: 24"
Grinding Wheel Diameter, Standard: 14"
Grinding Wheel Width, Standard: 1"
Grinding Wheel Hole Diameter: 5"
Grinding Wheel Speed, Maximum: 2060 RPM
Workhead Spindle Speeds, Range: 50 to 600 RPM
Table Longitudinal Feeds, Range: 3 to 220 IPM
Grinding Wheelhead Spindle Motor: 3 HP/1740 RPM
Internal Grinding Attachment Motor: 2 HP
Workhead Motor, Horsepower: 1 HP
Weight, Approximately: 5700 LBS
