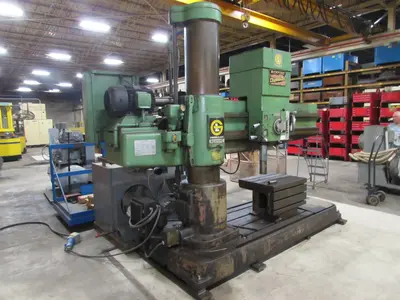

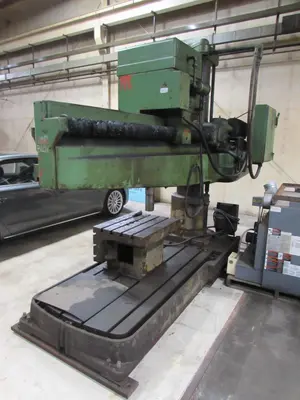

6'15" GIDDINGS & LEWIS/BICKFORD "CHIPMASTER 962" RADIAL DRILL w/TAPPING - #5 MT

Arm Length .......... 6'

Column Diameter .......... 15"

Horizontal Head Travel on Arm .......... 60.38"

Vertical Arm Travel on Column .......... 36"

Vertical Spindle Travel in Head .......... 14"

Spindle-Radius, Minimum .......... 25"

Spindle-Radius, Maximum .......... 83"

Spindle-Nose to Base, Minimum .......... 18"

Spindle-Nose to Base, Maximum .......... 67"

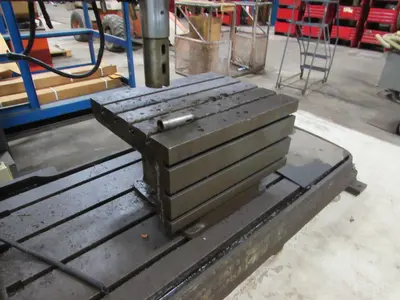

Base Working Surface, W x L .......... 42" x 83"

Spindle Nose Diameter .......... 3.94"

Spindle Taper .......... #5 MT

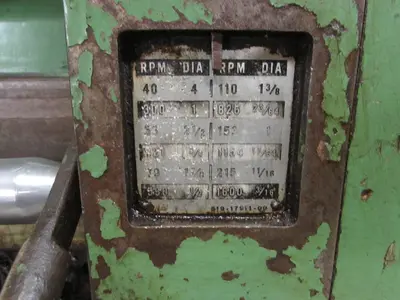

(12) Spindle Speeds, Range .......... 40 to 1600 RPM

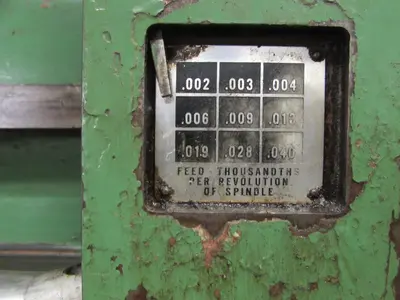

(9) Spindle Feeds, Range .......... .002 to .040 IPR

Motor Horsepower .......... 10 HP/1800 RPM

Electrical System .......... 230-460/3/60

Floor Space Required, W x D .......... 13'3" x 19'2"

Overall Height .......... 9'3"

Weight, Approximately .......... 17600 LBS

F.O.B. OUR WAREHOUSE
Arm Length: 6'
Column Diameter: 15"
Spindle-Radius, Minimum: 25"
Spindle-Radius, Maximum: 83"
Spindle-Nose to Base, Minimum: 18"
Spindle-Nose to Base, Maximum: 67"
Spindle Nose Diameter: 3.94"
Spindle Taper: #5 MT
(12) Spindle Speeds, Range: 40 to 1600 RPM
(9) Spindle Feeds, Range: 002 to .040 IPR
Motor Horsepower: 10 HP/1800 RPM
Electrical System: 230-460/3/60
Overall Height: 9'3"
Weight, Approximately: 17600 LBS
