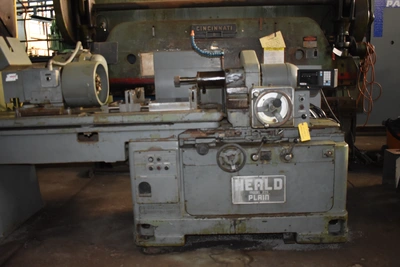

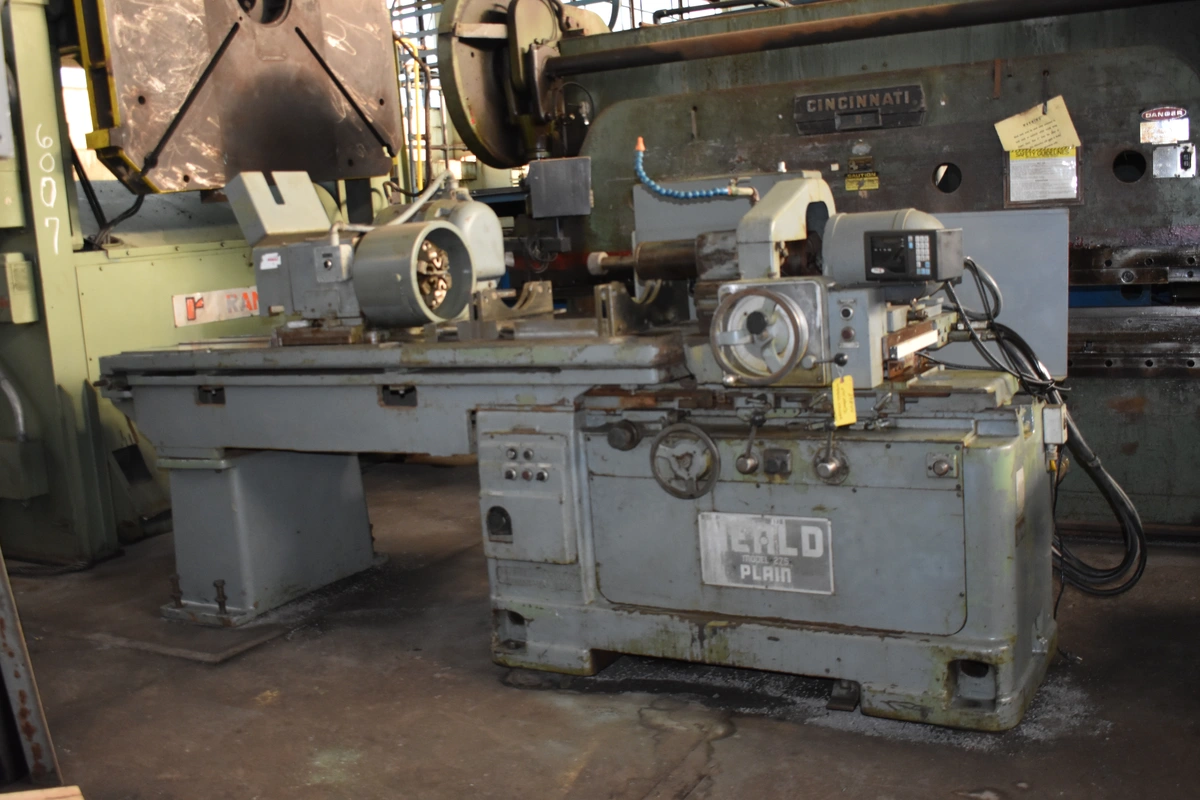

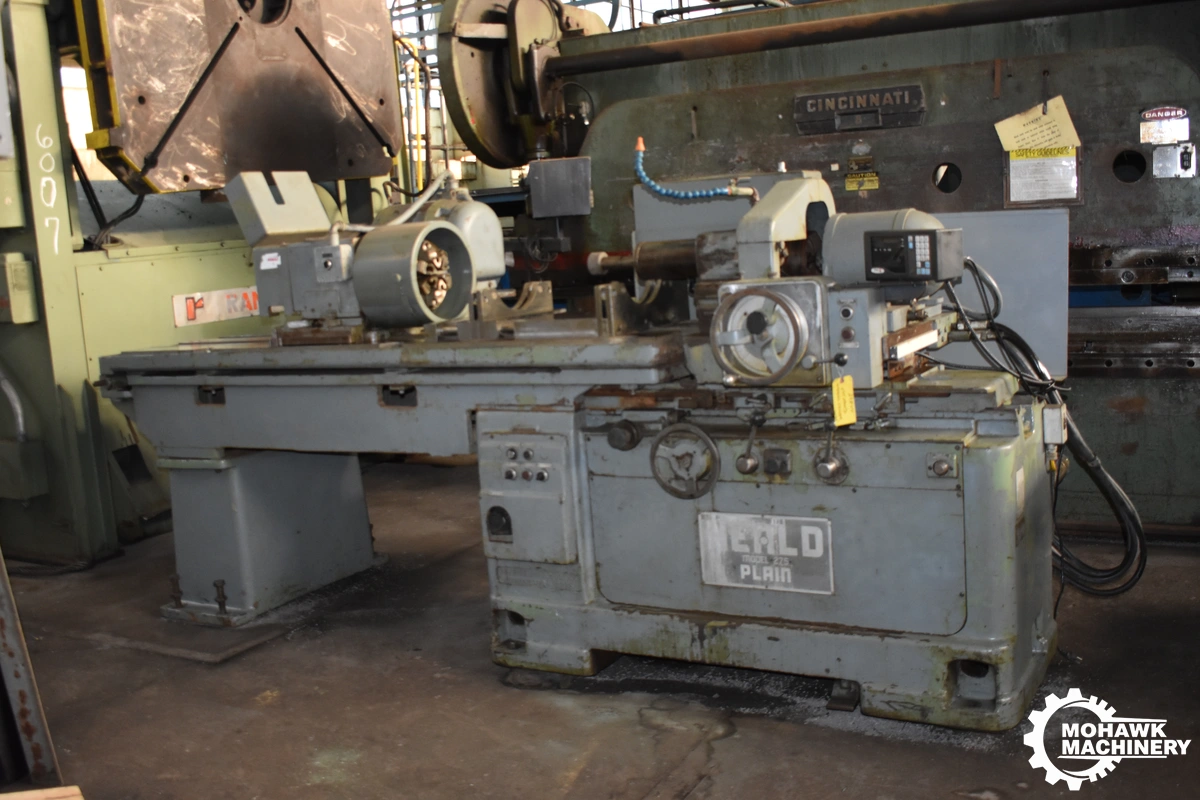

275 HEALD "PLAIN" EXTENDED-BRIDGE INTERNAL GRINDER w/72” EXTENDED BRIDGE & RED-HEAD GRINDING SPINDLE - FAGOR DIGITAL READOUTS
Have one to sell?
$14,500.00 USD
ConditionUsed
1 available
#275 HEALD "PLAIN" INTERNAL GRINDER
Serial No 34041, Model 275, Series "PLAIN"

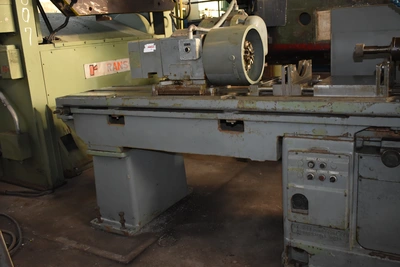

72" Extended Bridge (Swivelling-Type)
Fagor Digital Readouts - 10" 6-Jaw Chuck w/Jaws
Heald "Red-Head" Grinding Spindle
Coolant System (Tank & Pump)
Swing Over Table, Maximum 16"
Swing Inside Coolant Splash Guard 16"
Bore Diameter Ground, Minimum .125"
Bore Diameter Ground, Maximum 8.5"
Bore Length Ground, Maximum 5"
Table Longitudinal Travel 16"
Hole Thru Workhead Spindle, Diameter 1.625"
Bridge Grinding Angle, Maximum Included 17-DEGREES
Workhead Swivel Angle, Maximum 60-DEGREES
(4) Workhead Spindle Speeds, Range 133 to 400 RPM
Grinding Table Speeds, Infinite 0 to 20 FPM
Roughing Cross Feed, Range .0001" to .0005"
Finishing Cross Feed .0001"
Grinding Spindle Motor, Horsepower 5 HP/3600 RPM
Workhead Chuck Motor, Horsepower 1.5 HP
Overall Dimensions, L x W 14'9" x 5'6"
Weight, Approximately 13000 LBS
F.O.B. OUR WAREHOUSE
