19" x 150" LEBLOND MAKINO "19" REGAL" SERVO-SHIFT ENGINE LATHE w/TAPER - INCH/METRIC THREADING - NEWALL DIGITAL READOUTS - (3) STEADY RESTS
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available

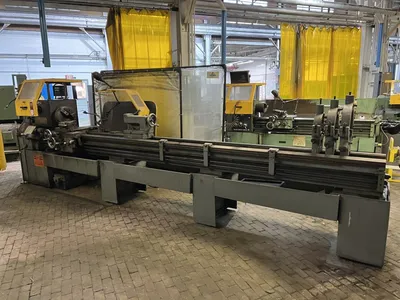

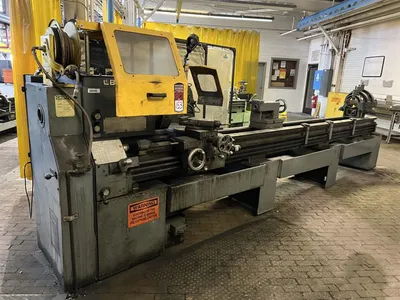

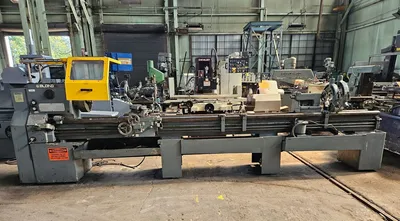

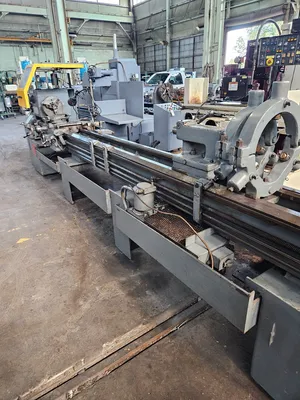

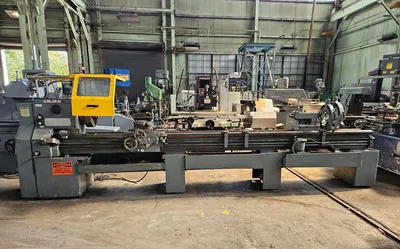

19" x 150" LEBLOND "REGAL" SERVO-SHIFT ENGINE
LATHE W/TAPER DIGITAL READOUTS INCH/METRIC
Serial No. 12E237, Model 19" Servo-Shift
Taper Attachment

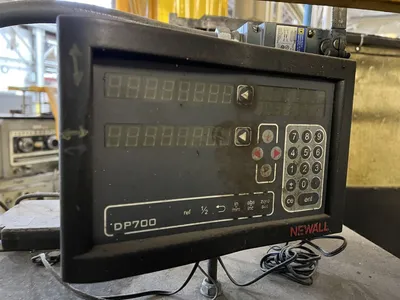

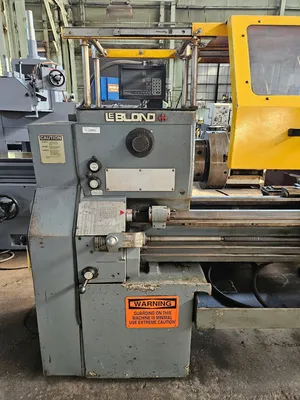

Newall DP700 Digital Readouts

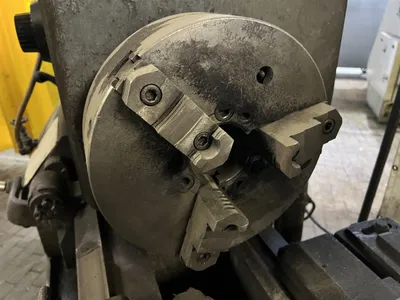

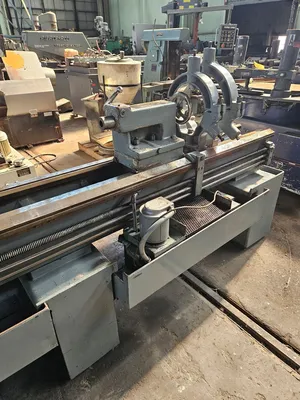

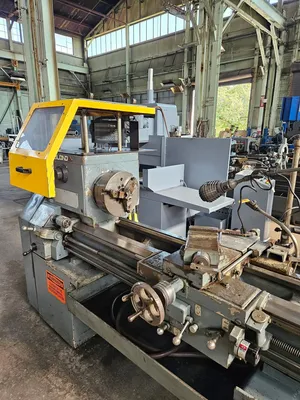

12" 3-Jaw Chuck - (3) Steady Rests

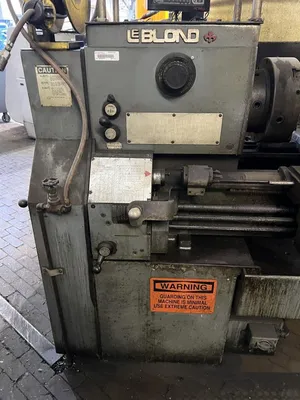

Servo Shift Hydraulic Shifting

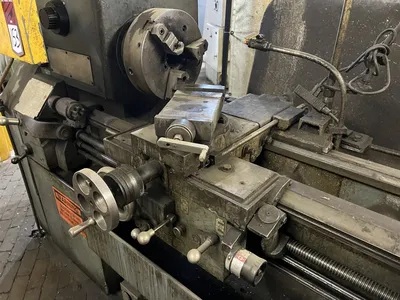

Inch-Metric Threading Dials On Compound & Cross Slide
Hard Ways - Threading Dial

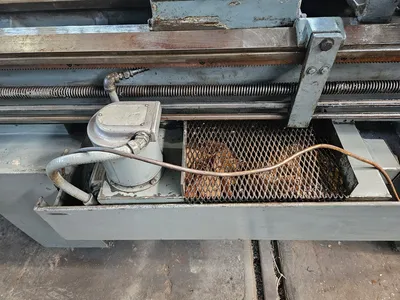

Chip Pan
Swing Over Bed Ways, Rated 19"
Swing Over Bed Ways, Actual 19-1/4"
Swing Over Cross-Slide 12-1/4"
Distance Between Centers 150"
Hole Thru Spindle 3 1/16"
Spindle Nose L-2
(12) Spindle Speeds, Range 40 to 1600 RPM
(48) Longitudinal Carriage Feeds .0018 to .104 IPR
(48) Thread Changes, Range 2 to 112 TPI
(40) Metric Thread Changes, Range .25 to 14 MMPR
Cross-Slide Cross Feed 11-1/4"

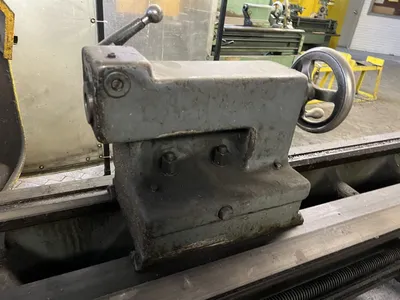

Tailstock, Spindle Taper #4 MT
Tailstock, Spindle Diameter 2-7/16"
Tailstock, Spindle Travel 7"
Motor, Horsepower 10 HP
Overall Dimensions, L x D 217" x 50"
F.O.B. OUR WAREHOUSE
