16.5" X 102" LEBLOND "14 HEAVY-DUTY" ENGINE LATHE w/TAPER - NEWALL DIGITAL READOUTS - POWER RAPID TRAVERSE - CHUCK - STEADY REST - FOLLOW REST

Have one to sell?

sales@mohawkmachinery.com

$8,950.00 USD

ConditionUsed

Quantity

1 available

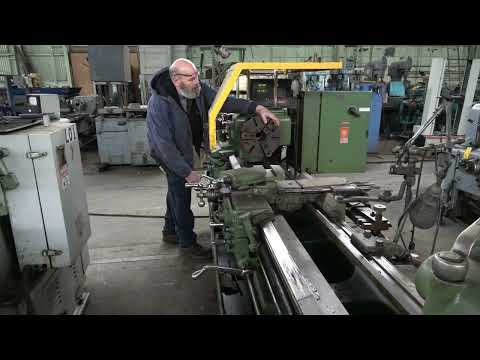

LEBLOND 14 HEAVY-DUTY Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (1)

LEBLOND 14 HEAVY-DUTY Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (2)

LEBLOND 14 HEAVY-DUTY Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (3)

LEBLOND 14 HEAVY-DUTY Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (4)

LEBLOND 14 HEAVY-DUTY Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (5)

LEBLOND 14 HEAVY-DUTY Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (6)

LEBLOND 14 HEAVY-DUTY Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (7)

LEBLOND 14 HEAVY-DUTY Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (8)

LEBLOND 14 HEAVY-DUTY Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery

Have one to sell?

Overview

Type:

Engine Lathes (Gap Bed, Hollow-Spindle, Tracer)

Manufacturer:

Model:

14 HEAVY-DUTY

Stock #:

29847

Status:

For Sale

Description

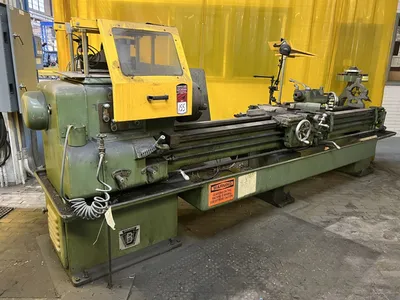

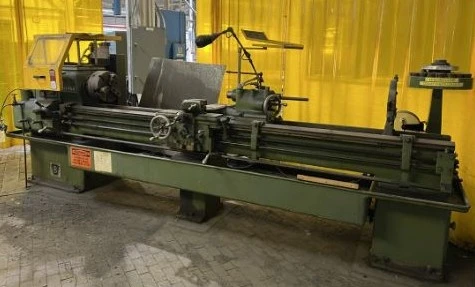

14"/16.5" x 102" LEBLOND "HEAVY-DUTY" ENGINE LATHE

w/TAPER ATTACHMENT & DIGITAL READOUTS

Series "14 HEAVY-DUTY"

Equipped With

Newall DP7 Digital Readouts

Taper Attachment

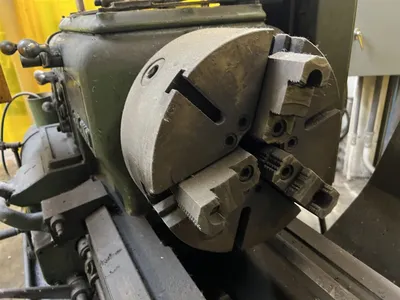

12" 3-Jaw Chuck

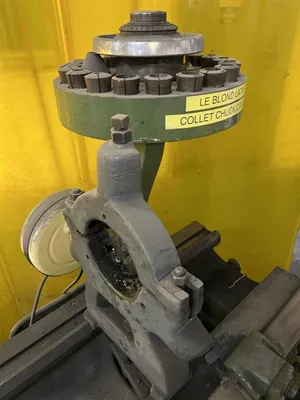

Steady Rest - Follow Rest

Power Rapid Traverse

Hard Ways

Threading Dial

Specifications

ImperialMetric

Swing	16.5"	419.1 mm
Centers	102"	2,590.8 mm
Spindle Bore	1.34"	34.036 mm
RPM	1,250 RPM	1,250 RPM
Swing Over Cross Slide	9.75"	247.65 mm
Weight	6500	6500

Hole Thru Spindle 1.34"

Swing Over Bed Ways, Rated 14"

Swing Over Bed Ways, Actual 16.5"

Swing Over Cross-Slide 9.75"

Distance Between Centers 102"

Compound-Rest Travel 2.875"

Tailstock, Spindle Diameter 2.625"

Tailstock, Spindle Travel 10"

(24) Spindle Speeds, Range 25 to 1250 RPM

Carriage Longitudinal Feeds .0021 to .126 IPR

Thread Changes, Range 2 to 120 TPI

Weight, Approximately 6500 LBS

F.O.B. OUR WAREHOUSE
