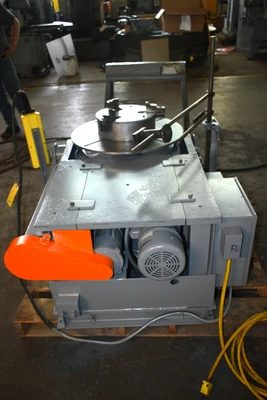

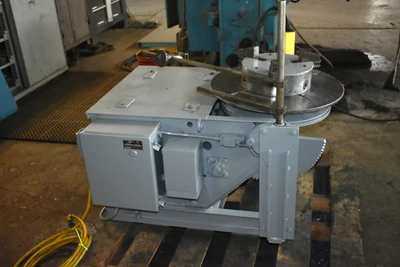

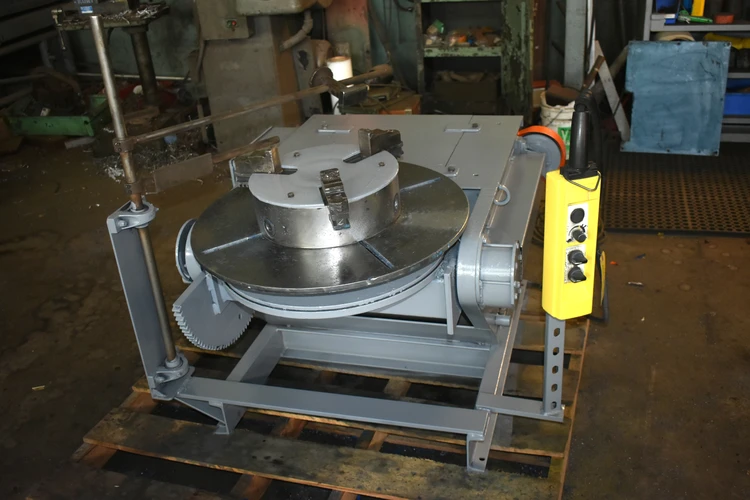

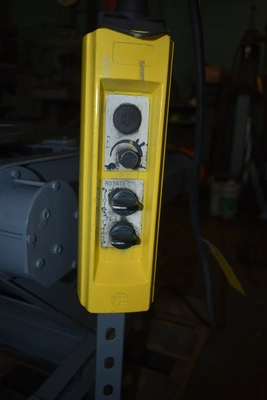

2000 LB KOIKE-ARONSON "HD20A" GEAR-DRIVEN WELDING POSITIONER w/24” DIAMETER TABLE & 12” 3-JAW CHUCK FIXTURE - PENDANT CONTROLS

Table Diameter 24"

Table Weight at 6" Eccentricity 2000 LBS

Table Weight at 12" Eccentricity 1275 LBS

Table Weight at 18" Eccentricity 930 LBS

Table Weight at 24" Eccentricity 730 LBS

Table Weight at 30" Eccentricity 600 LBS

Table Weight at 36" Eccentricity 520 LBS

Table Weight at 42" Eccentricity 450 LBS

Table Weight at 48" Eccentricity 400 LBS

Table Weight at 54" Eccentricity 360 LBS

Table Weight at 60" Eccentricity 325 LBS

Rotational Load Torque 12000 LBS

Tilt Load Torque 21000 LBS

Table Height, Minimum 23.75"

Table Height, Maximum 38.75"

Table Rotation, Degrees 360-DEGREES

Table Rotation Speed, Variable .04 to 2 RPM

Table Rotation Motor, HP 0.5 HP

Table Tilt Motor, HP 0.5 HP

Electrical System 115/1/60

Overall Dimensions, W x D 2'4" x 4'

Weight Approximately 755 LBS

F.O.B. OUR WAREHOUSE
