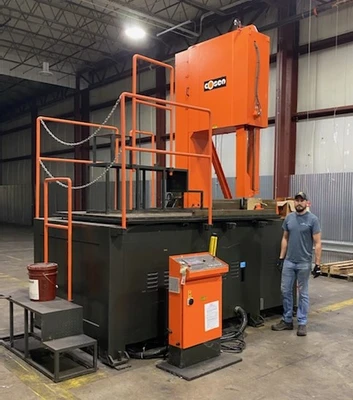

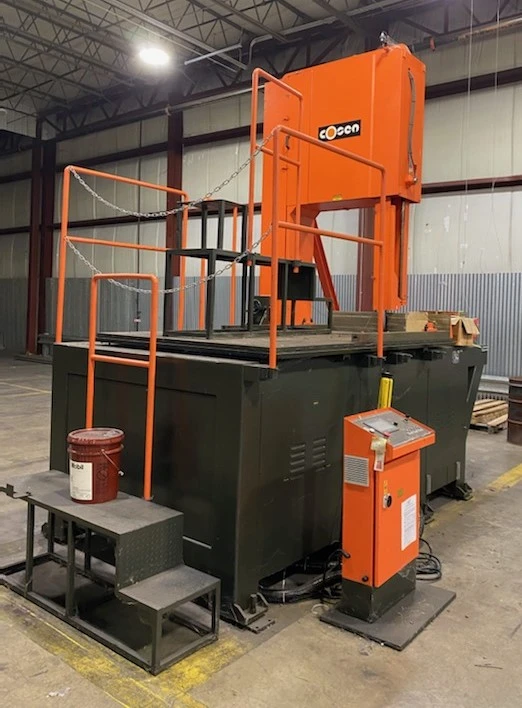

43" x 43" COSEN "SV-1100" SEMI-AUTOMATIC TRAVELING-TABLE VERTICAL BAND SAW (BRAND NEW NEVER USED) w/20 HP BLADE MOTOR

Throat Depth .......... 43" 1100 MM

Height Capacity, Maximum .......... 43" 1100 MM

Table Dimensions, L x W .......... 96.5" x 65"

Table Dimensions, L x W .......... 2450 MM x 1650 MM

Table Feed, Length .......... 25.6" 650 MM

Table Load Capacity .......... 17361 LBS 7875 KG

Workbed Height .......... 58.3" 1482 MM

Blade Length .......... 346" 8800 MM

Blade Width .......... 1.6" 41 MM

Blade Thickness .......... 0.05" 1.3 MM

Blade Speeds, Inf. Variable .......... 1500 to 6000 FPM

Blade Speeds, Inf. Variable .......... 450 to 1800 MPM

Blade Motor, Horsepower .......... 20 HP 15 KW

Hydraulic Motor, Horsepower .......... 1 HP .75 KW

Coolant Motor, Horsepower .......... 1/4 HP .186 KW

Floor Space Required, L x W .......... 146" x 124"

Overall Height .......... 169"

Weight Approximately .......... 8800 LBS 4000 KG

NOTE: This Machine Was Purchased Brand New

And Never Put Into Service. IT IS IN BRAND NEW

CONDITION.

F.O.B. OUR WAREHOUSE
Throat Depth: 43" 1100 MM
Height Capacity, Maximum: 43" 1100 MM
Table Feed, Length: 25.6" 650 MM
Table Load Capacity: 17361 LBS 7875 KG
Workbed Height: 58.3" 1482 MM
Blade Length: 346" 8800 MM
Blade Width: 1.6" 41 MM
Blade Thickness: 0.05" 1.3 MM
Blade Speeds, Inf. Variable: 1500 to 6000 FPM
Blade Motor, Horsepower: 20 HP 15 KW
Hydraulic Motor, Horsepower: 1 HP .75 KW
Coolant Motor, Horsepower: 1/4 HP .186 KW
Overall Height: 169"
Weight Approximately: 8800 LBS 4000 KG
