YCM-2H SUPERMAX HEAVY-DUTY HORIZONTAL MILL w/5 HP SPINDLE MOTOR - PENDANT CONTROL

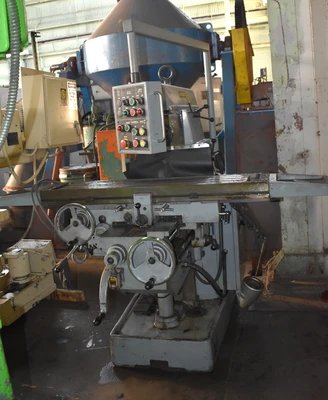

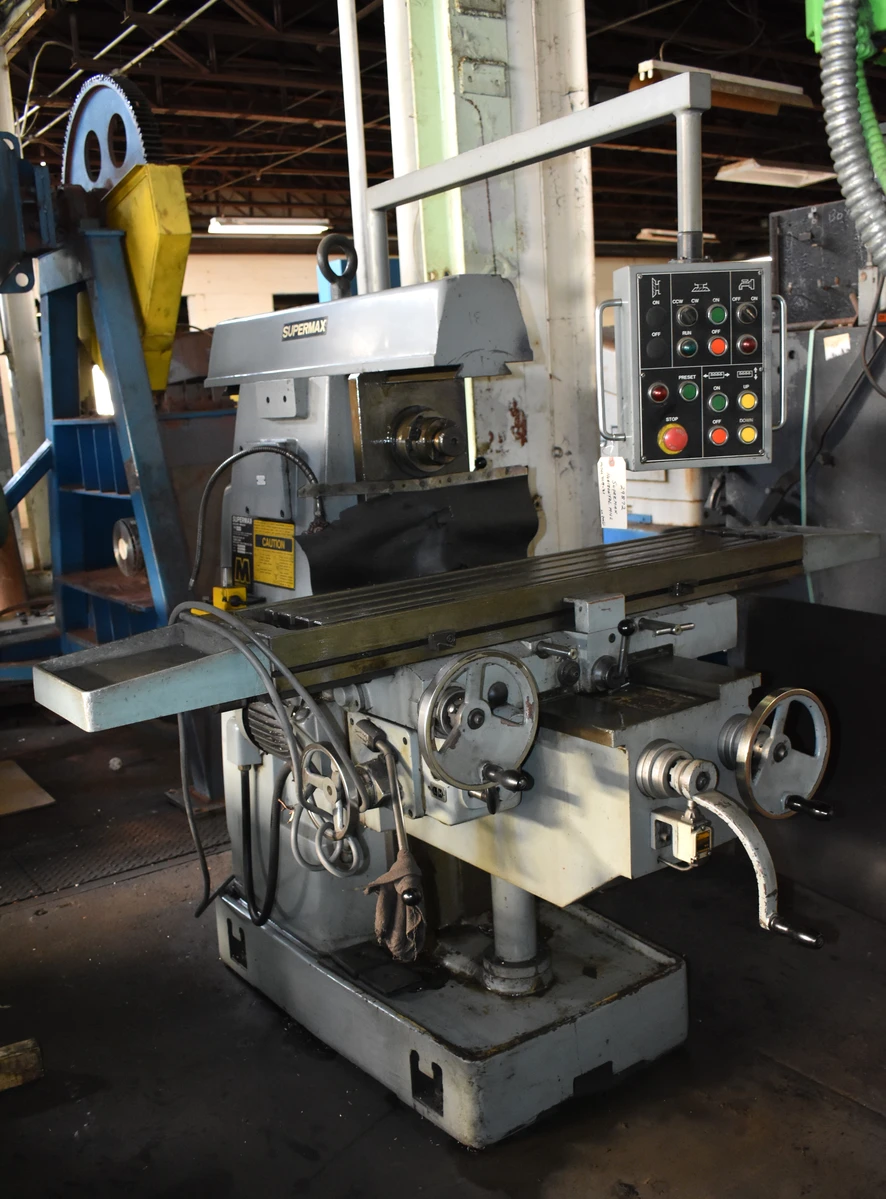

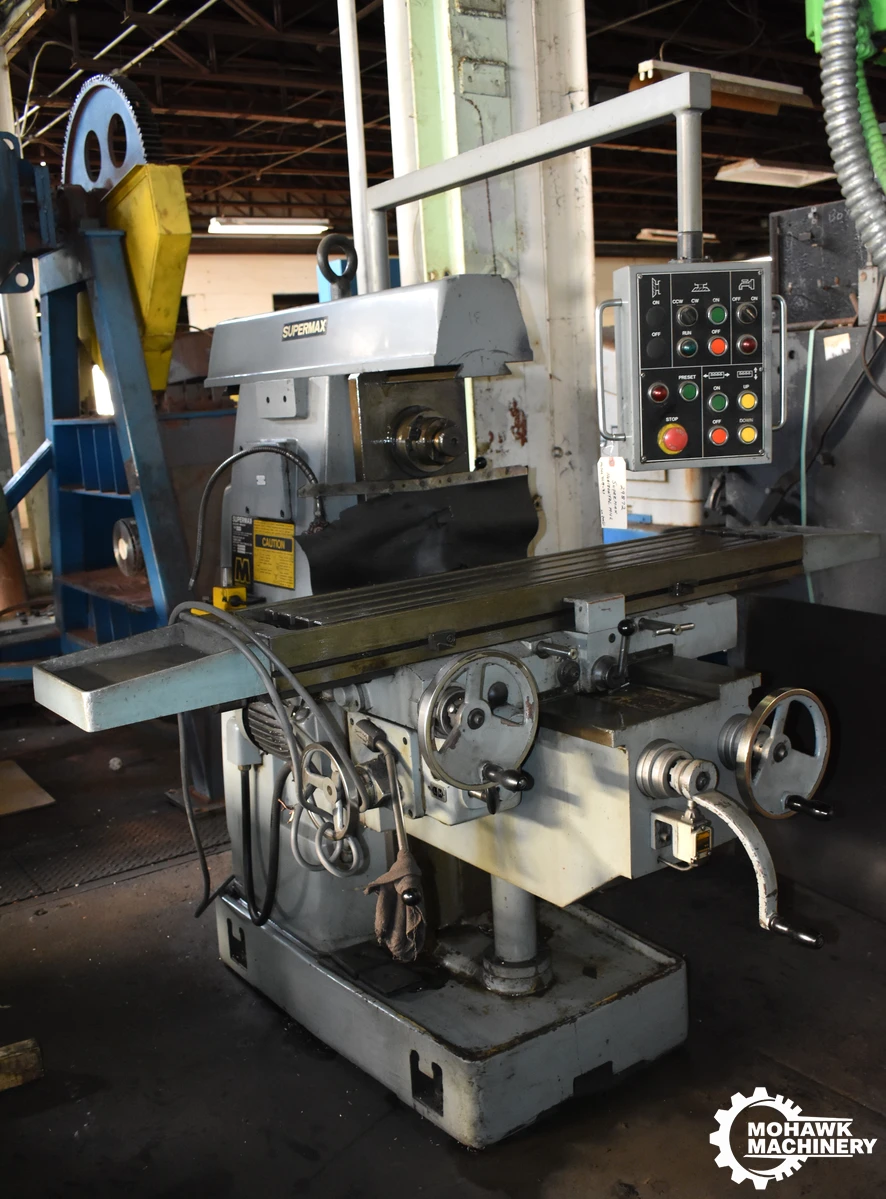

YCM-2H SUPERMAX HEAVY-DUTY HORIZONTAL MILL
Serial No 9031252, Model YCM-2H

EQUIPPED WITH:

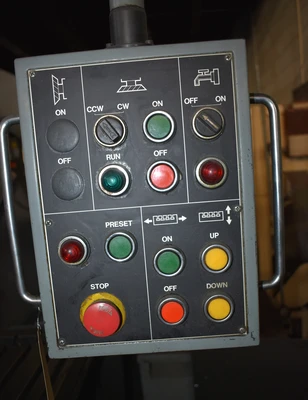

Pendant Control
5 Horsepower
Power Longitudinal & Cross Table Feed
Backlash Compensation
Hardened & Ground Square Ways

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 11" x 52"
Table Longitudinal Travel (X-Axis) 39.375"
Saddle Cross Travel (Y-Axis) 12"
Knee Vertical Travel (Z-Axis) 19"
Table Load Capacity, Power 1650 LBS
Table Load Capacity, Manual 2200 LBS
Distance Spindle Center To Ram 7"
Distance Spindle Center To Table 19.25"
(9) Spindle Speeds, Range 85 To 1300 RPM
(12) Longitudinal & Cross Feeds, Range .5 to 23.75 IPM
Vertical Rapid Feed 31.5 IPM
Spindle Taper #40
Spindle Motor, Horsepower 5 HP
Longitudinal & Cross Feed Motor 2 HP
Table Vertical Rapid Motor 1 HP
Weight, Approximately 5400 LBS
F.O.B. OUR WAREHOUSE
