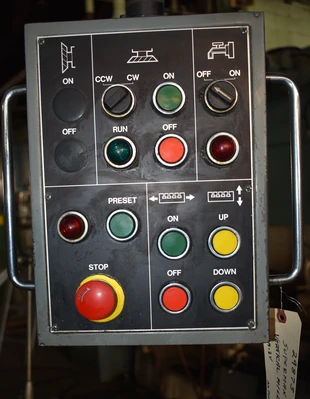

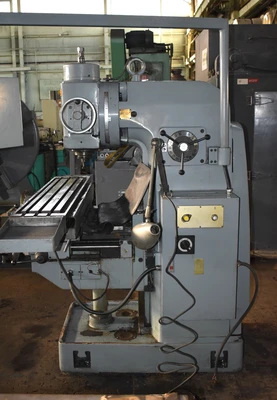

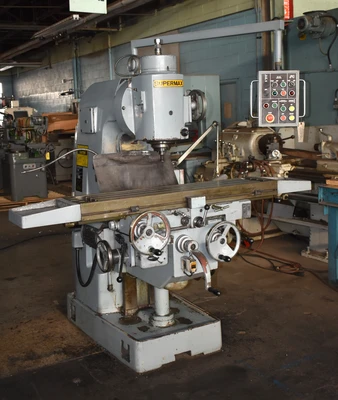

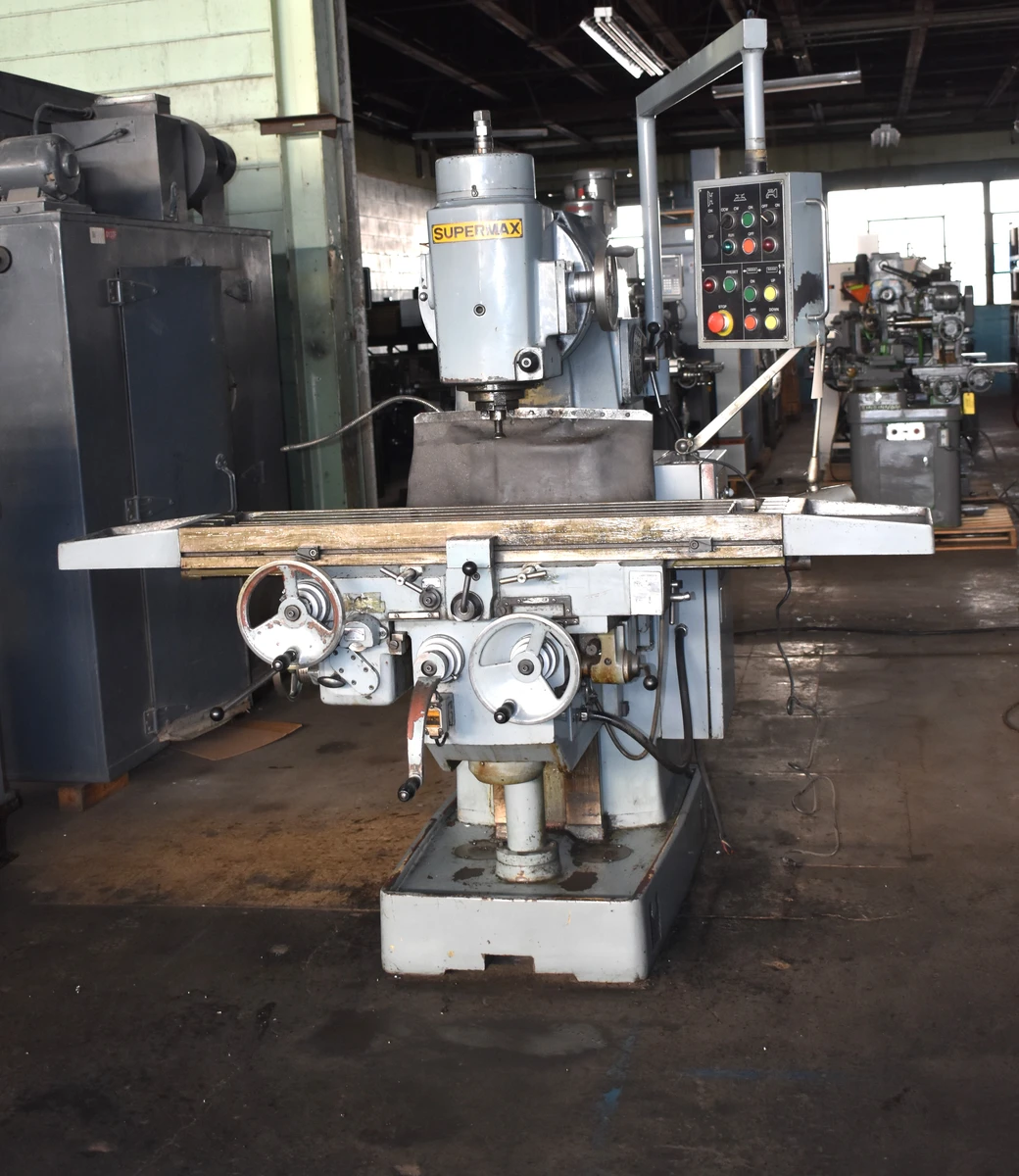

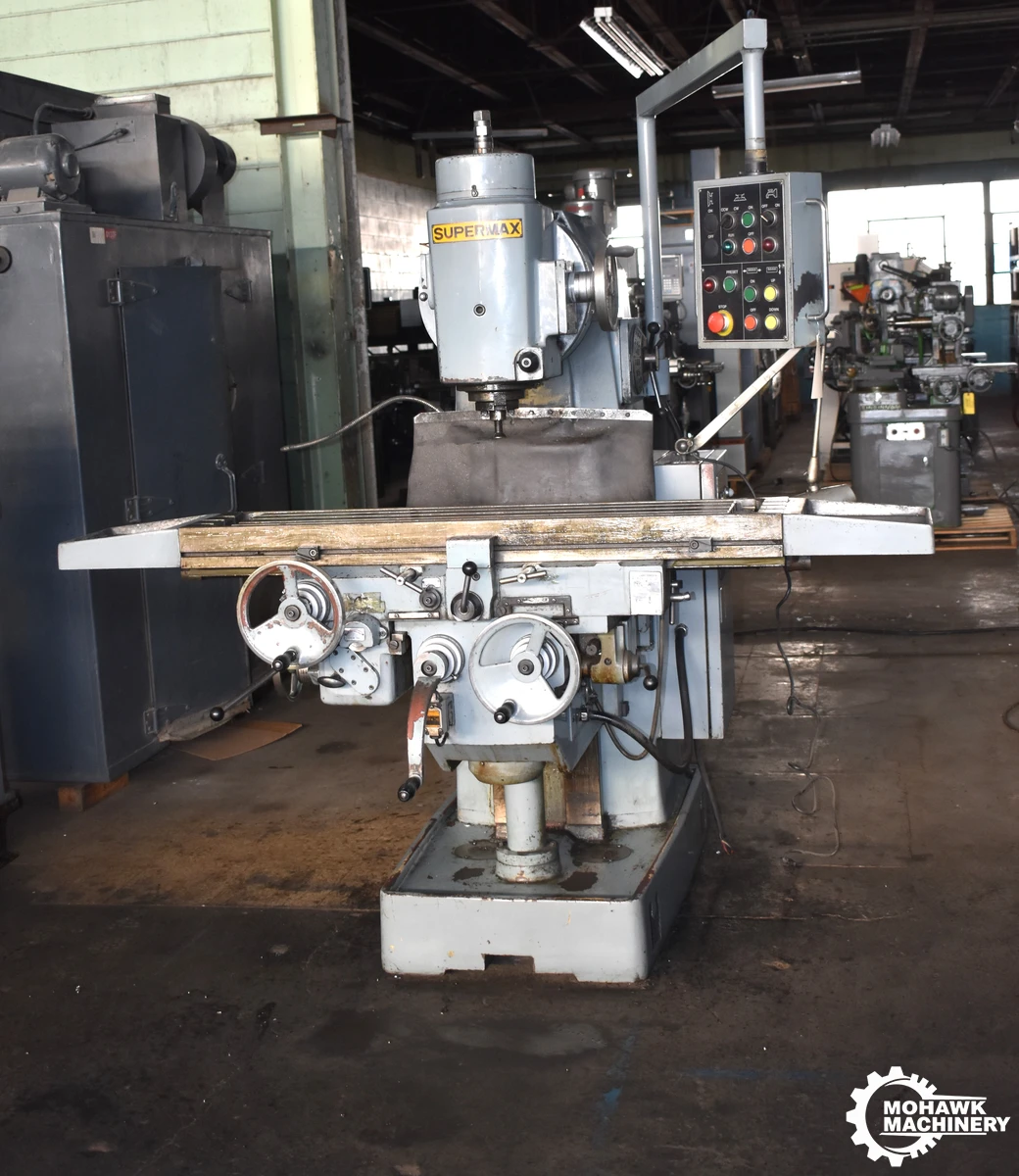

YCM-2V SUPERMAX SWIVELING-HEAD HEAVY-DUTY VERTICAL MILL w/5 HP SPINDLE MOTOR - PENDANT CONTROL

Table Working Surface, W x L 11" x 52"

Table Longitudinal Travel (X-Axis) 39.375"

Saddle Cross Travel (Y-Axis) 12"

Knee Vertical Travel (Z-Axis) 17.75"

Spindle Inclined Angle, R & L 45-DEGREES (EACH)

Quill Travel, Manual 3.5"

Quill Diameter 6.25"

Table Load Capacity, Power 1650 LBS

Table Load Capacity, Manual 2200 LBS

Distance Spindle To Table 17.75"

Spindle Center To Column Surface 12.5"

(9) Spindle Speeds, Range 85 To 1300 RPM

(12) Longitudinal & Cross Feeds, Range .5 to 23.75 IPM

Vertical Rapid Feed 31.5 IPM

Spindle Motor, Horsepower 5 HP

Longitudinal & Cross Feed Motor 2 HP

Table Vertical Rapid Motor 1 HP

Weight, Approximately 4840 LBS

F.O.B. OUR WAREHOUSE
