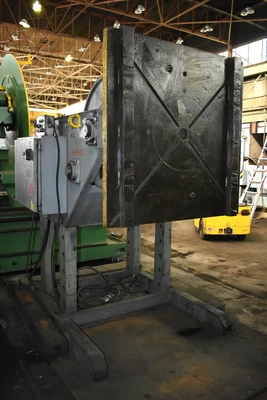

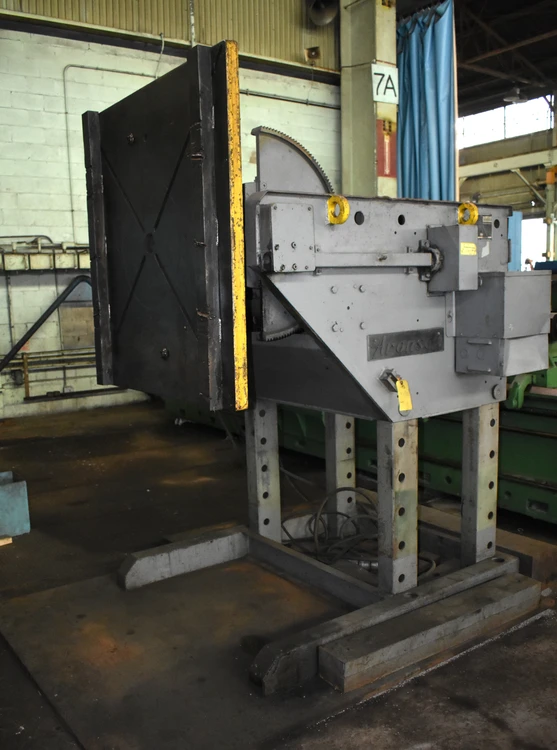

10000 LB ARONSON "SHD100A" VARIABLE-SPEED WELDING POSITIONER w/48” X 48” T-SLOTTED TABLE

Table Dimensions (Overall) W x L 48" x 48"

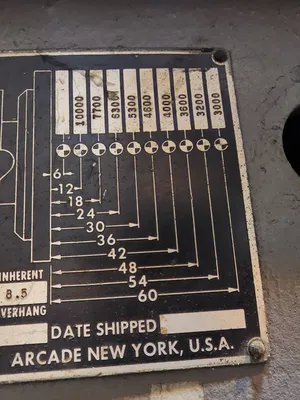

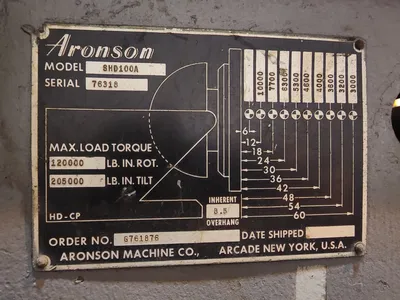

Table Weight at 12" Eccentricity 10000 LBS

Table Weight at 18" Eccentricity 7700 LBS

Table Weight at 24" Eccentricity 6900 LBS

Table Weight at 30" Eccentricity 5300 LBS

Table Weight at 36" Eccentricity 4600 LBS

Table Weight at 42" Eccentricity 4000 LBS

Table Weight at 48" Eccentricity 3600 LBS

Table Weight at 54" Eccentricity 3200 LBS

Table Weight at 60" Eccentricity 3000 LBS

Table Rotation, Degrees 360-DEGREES

Table Tilt, Degrees 135-DEGREES

Rotation Torque, Inch Pounds 120,000 LBS

Tilt Torque, Inch Pounds 205,000 LBS

Rotation Motor, Horsepower 5 HP

Tilt Motor, Horsepower 3 HP

Overall Dimensions, W x D 4'5" x 6'4"

F.O.B. OUR WAREHOUSE
