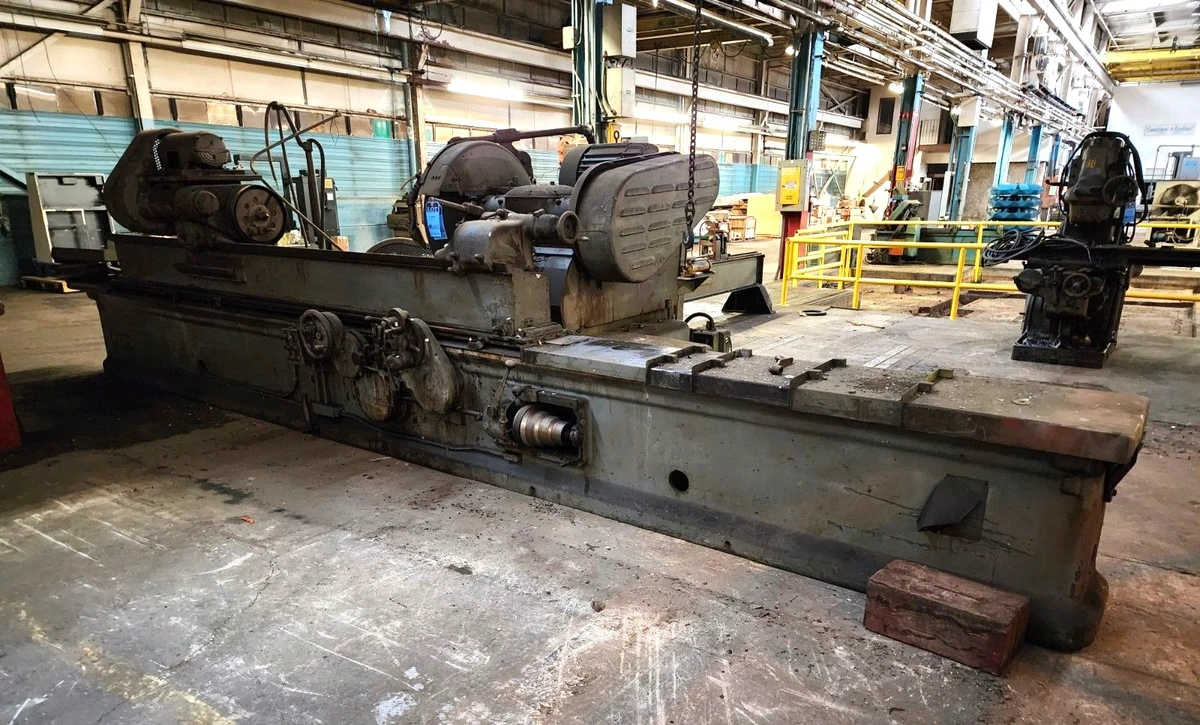

16/24" x 120" NORTON "C" PLAIN GAP-TYPE CYLINDRICAL GRINDER w/REMOVABLE GAP - PICK-FEED - 20 HP SPINDLE MOTOR

Swing Over Table, Maximum .......... 16.5"

Swing Thru Gap, Maximum .......... 24"

Grinding Diameter Over Table, Maximum .......... 16"

Distance Between Centers, Nominal .......... 120"

Gap Length .......... 25"

Grinding Wheel Diameter, Standard .......... 30"

Grinding Wheel Width, Standard .......... 3"

Grinding Wheel Hole Diameter .......... 12"

Headstock Spindle Diameter .......... 4"

Headstock Center Diameter .......... 2"

Tailstock Spindle Diameter .......... 3.125"

Tailstock Center Diameter .......... 2"

Wheelhead Travel, Maximum .......... 13.25"

Table Swivel Taper .......... 1.437" TPF

Table Longitudinal Feeds, Range .......... 6 to 92 IPM

Grinding Wheelhead Spindle Motor .......... 20 HP

Workhead Motor, Horsepower .......... 5 HP DC

Table Feed Motor, Horsepower .......... 3 HP

Electrical System .......... 220-440/3/60

Floor Space Required, L x D .......... 26' x 7'

Weight, Approximately .......... 30000 LBS

F.O.B. OUR WAREHOUSE
Swing Over Table, Maximum: 16.5"
Swing Thru Gap, Maximum: 24"
Distance Between Centers, Nominal: 120"
Gap Length: 25"
Grinding Wheel Diameter, Standard: 30"
Grinding Wheel Width, Standard: 3"
Grinding Wheel Hole Diameter: 12"
Headstock Spindle Diameter: 4"
Headstock Center Diameter: 2"
Tailstock Spindle Diameter: 3.125"
Tailstock Center Diameter: 2"
Wheelhead Travel, Maximum: 13.25"
Table Swivel Taper: 1.437" TPF
Table Longitudinal Feeds, Range: 6 to 92 IPM
Grinding Wheelhead Spindle Motor: 20 HP
Workhead Motor, Horsepower: 5 HP DC
Table Feed Motor, Horsepower: 3 HP
Electrical System: 220-440/3/60
Weight, Approximately: 30000 LBS
