1 HP BRIDGEPORT "J-HEAD" VERTICAL MILL w/POWER LONGITUDINAL & CROSS TABLE FEED - VISE -JACOBS CHUCK
Have one to sell?
$3,950.00 USD
ConditionUsed
1 available

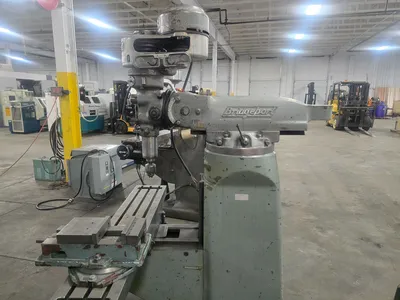

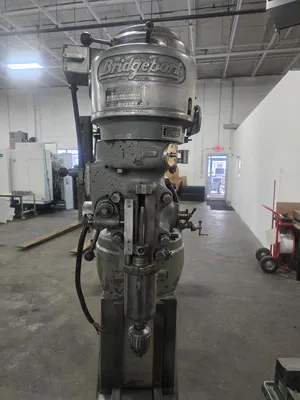

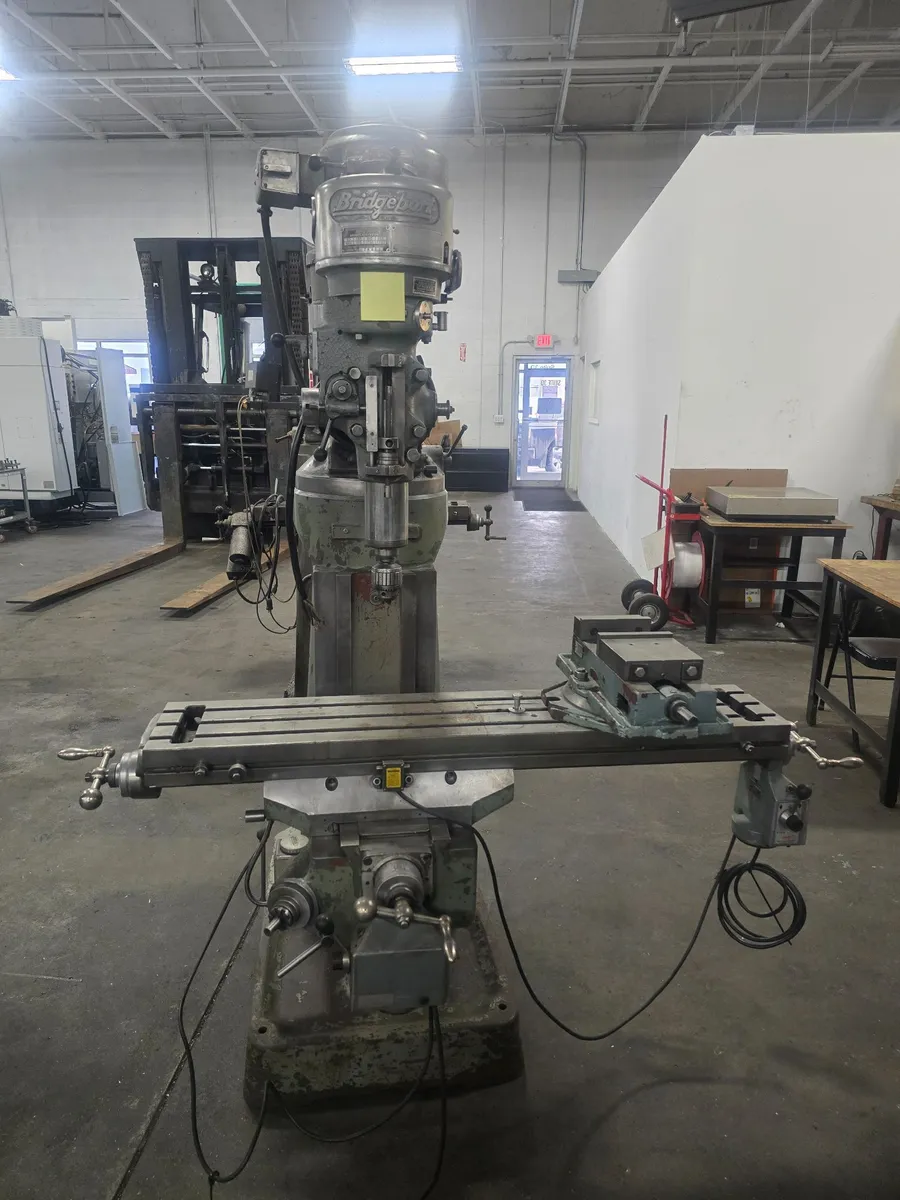

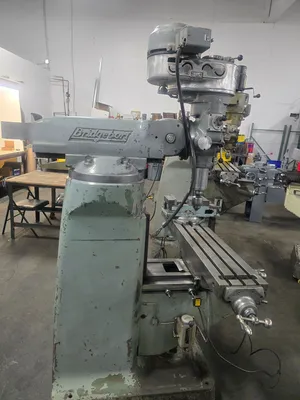

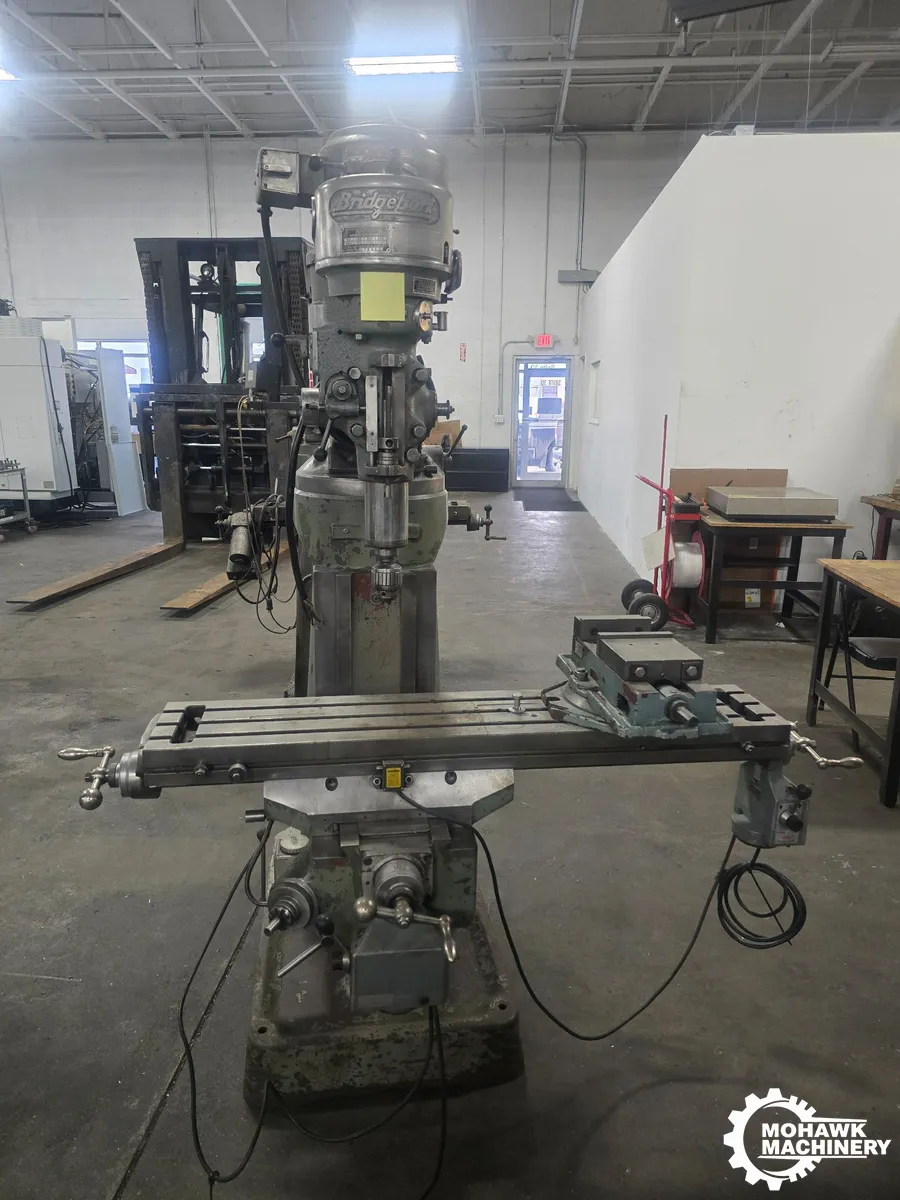

1 HP BRIDGEPORT "J-HEAD" VERTICAL MILL
Serial No 72082854, Series "J-HEAD"
1 HP Bridgeport J-Head (Serial No J-74317)
Power Down-Feed To Quill
Power Longitudinal Table Feed
Power Cross Table Feed
Heavy-Duty Swiveling Vise
Jacobs Chuck

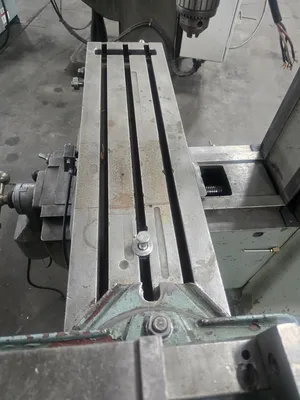

Table Dimensions (Overall), W x L 9" x 48"
Table Longitudinal Travel (X-Axis) 36"
Saddle Cross Travel (Y-Axis) 12"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel 5"
Spindle Taper #R8
(8) Spindle Speeds, Range 80 Ton 2720 RPM
(4) Vertical Feeds, Range .0015 To .006 IPF
Spindle Motor, Horsepower/RPM 1 HP/1750 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 4'0" x 5'8"
Overall Height 7'0"
Weight, Approximately 1900 LBS
F.O.B. LOUISVILLE, KY
