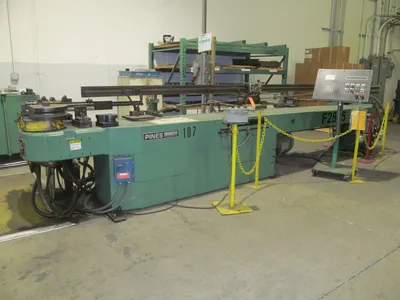

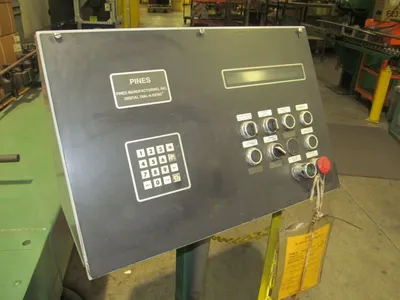

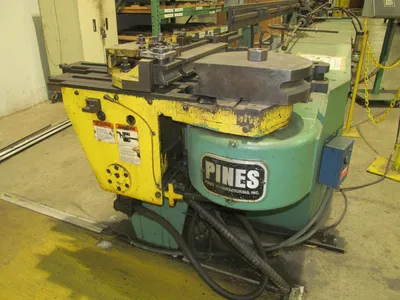

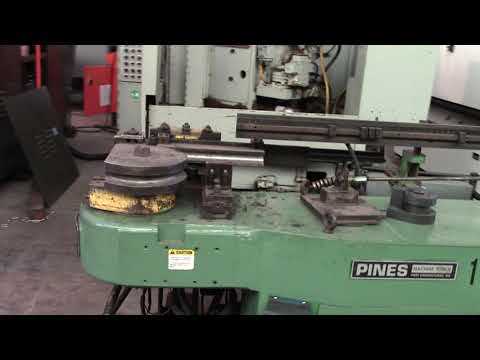

2-1/2" PINES "MODEL 1-1/4" HEAVY-DUTY EXTENDED-BASE HORIZONTAL HYDRAULIC ROTARY TUBE/PIPE BENDER w/6’ EXTENDED BASE - PINES DIGITAL DIAL-A-BEND CONTROL

Pipe/Tube Diameter x Wall Capacities:

Round Tubing Mild Steel Y.P. to 40000 PSI .......... 2-1/2" x .065"

Schedule 80 Steel Pipe .......... 1-1/4"

Non-Ferrous Tube Y.P. to 12000 PSI .......... 3" x 0.12"

Non-Ferrous Tube Y.P. to 25000 PSI .......... 3" x .065"

Stainless Steel Tube Y.P. to 60000 .......... 1.75" x .065"

Steel Bar, Round Y.P. 40000 PSI .......... 1.375"

Steel Bar, Square Y.P. 4000 PSI .......... 1.25"

Angle Iron Y.P. to 40000 PSI .......... 2.5"x2.5"x0.19"

Tube Length Over Mander, Maximum 13'5"

Tube Bending Radius, Maximum .......... 12"

Tube Bending Angle, Maximum .......... 180-DEGREES

Bending Arm Speed, Average Maximum .......... 13.5 RPM

Operating Pressure, Standard .......... 2000 PSI

Main Motor, Horsepower .......... 10 HP

Overall Dimensions, L x D .......... 13'4" x 4'

Overall Height .......... 4'

Weight, Approximately .......... 5000 LBS

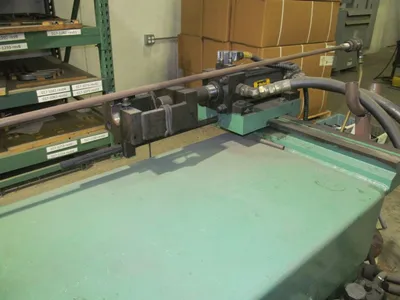

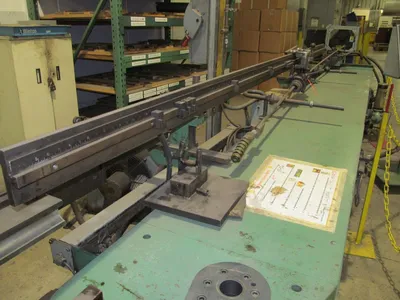

NOTE: This Is A Very Well Equipped Machine. The

M21 Manual Carriage Manually Controls The

Distance Between Bends And The Plane Of

Bend For Various Part Configurations. The

Carriage Position And Rotation Is Controlled

Through Manually Adjusted Gauge Stops. Factory

Advises This Is A $35,000.00 Option.

F.O.B. OUR WAREHOUSE
Schedule 80 Steel Pipe: 1-1/4"
Tube Bending Radius, Maximum: 12"
Tube Bending Angle, Maximum: 180-DEGREES
Operating Pressure, Standard: 2000 PSI
Main Motor, Horsepower: 10 HP
Overall Height: 4'
Weight, Approximately: 5000 LBS
