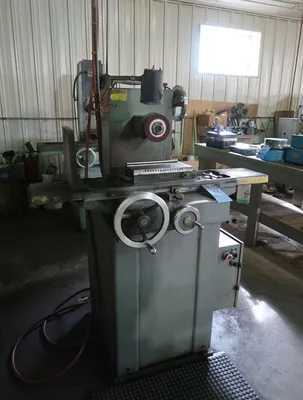

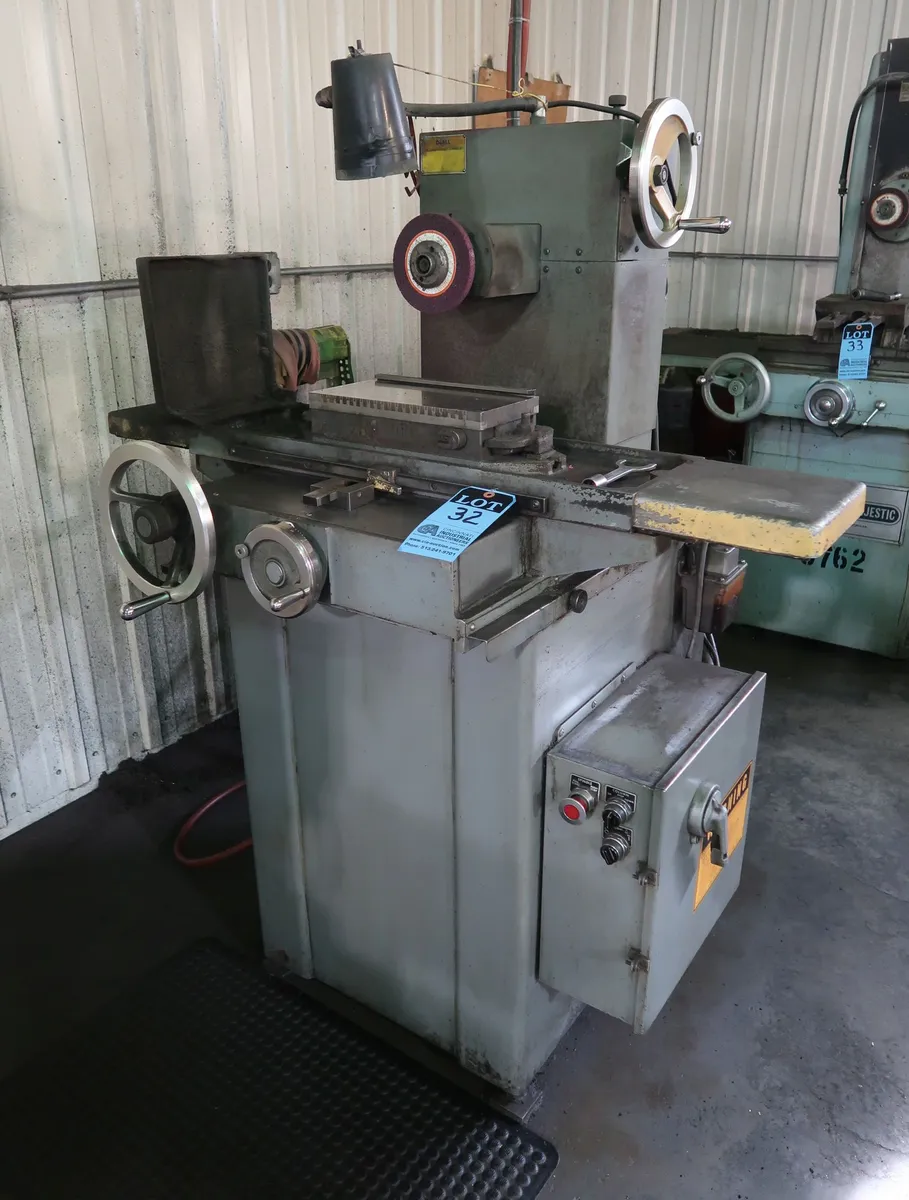

6" X 12' DOALL "VS612" HAND-FEED HORIZONTAL-SPINDLE SURFACE GRINDER w/MAGNETIC CHUCK

6" X 12' DOALL "VS612" HAND-FEED HORIZONTAL-SPINDLE SURFACE GRINDER w/MAGNETIC CHUCK

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$1,450.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Surface & Way Grinders
Manufacturer:
DOALL
Model:
VS612
Stock #:
29890
Status:
For Sale

Description

6" x 12" DOALL HAND-FEED HORIZONTAL-SPINDLE

SURFACE GRINDER

Serial No 355-81757, Model VS612,

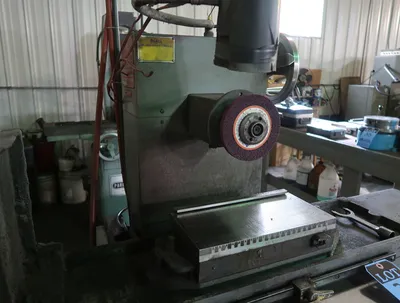

6" x 12" Permanent-Magnetic Chuck

Automatic Lubrication System

Table-W6"152.4 mm
Table-L12"304.8 mm
Horz/Vert'Horz''Horz'
Power1 hp0.7 kW
Grinding Wheel Width0.5"12.7 mm
Grinding Wheel Dia.8"203.2 mm
Dimensions62 x 4462 x 44
Weight15001500

Table Working Surface, W x L 6" x 12"

Grinding Width Capacity, Maximum 6"

Grinding Length Capacity, Maximum 12"

Height Under 8" Grinding Wheel 12"

Table Longitudinal, Manual 14"

Table Cross Travel 7"

Grinding Wheel Diameter, Standard 8"

Grinding Wheel Width, Standard 0.5"

Grinding Wheel Hole Diameter 1.25"

Grinding Spindle Speed 3450 RPM

Grinding Wheel Spindle Motor 1 HP

Electrical System 220-440/3/60

Overall Dimensions, W x D 62" x 44"

Overall Height 66"

Weight, Approximately 1500 LBS

F.O.B. OUR WAREHOUSE
