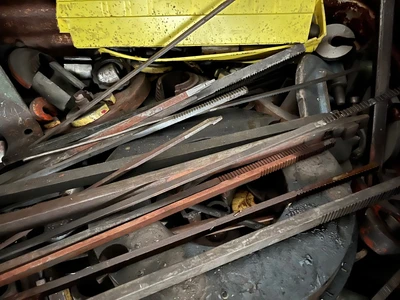

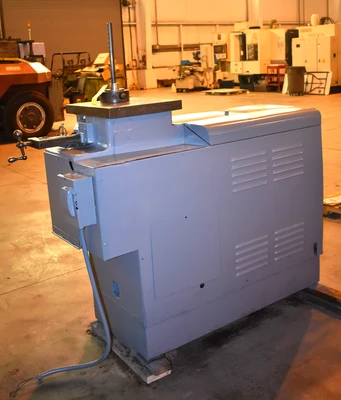

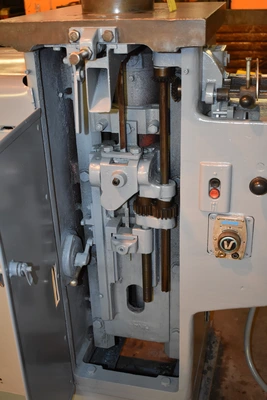

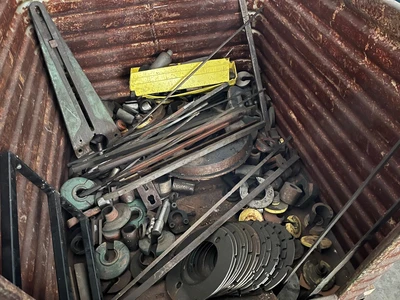

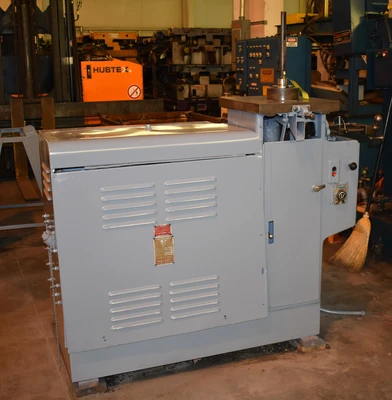

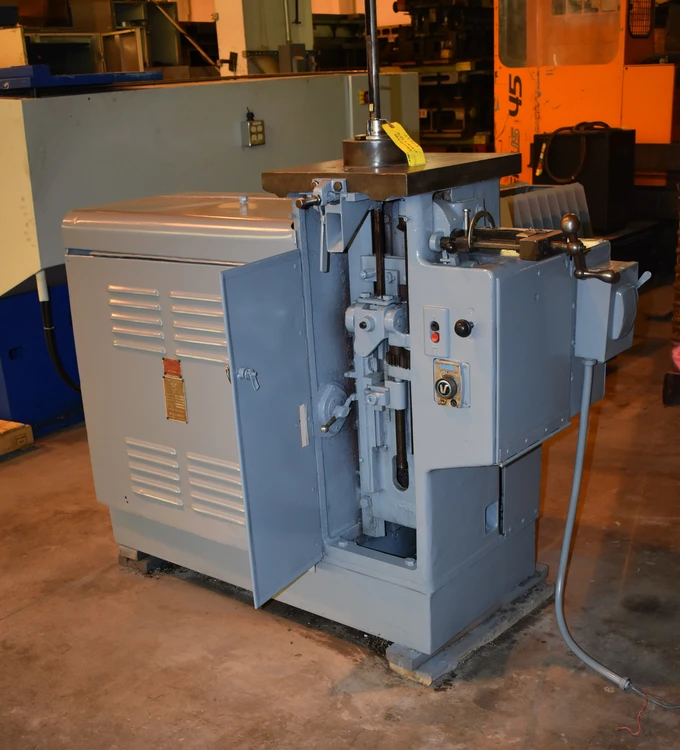

1-1/4” MITTS & MERRILL “2 HYD” HYDRAULIC KEYSEATER w/AUTOMATIC TOOL RELIEF & LARGE QUANTITY OF TOOLING

Maximum Keyway Length .......... 12"

Maximum Keyway Width .......... 1-1/4"

Largest Standard Post Capacity .......... 2-3/8"

Feeds, Range Variable .......... .002 to .008 IPS

Cutting Speed, Range .......... 8.5 to 20.6 FPM

Return Speed, Feet Per Minute .......... 41.2 FPM

Crosshead Pull At 1000 PSI .......... 7000 LBS

Maximum Weight Piece Part .......... 2500 LBS

Distance, Floor to Table .......... 40-5/8"

Floor Space Required, W x D .......... 52" x 23"

F.O.B. OUR WAREHOUSE
Maximum Keyway Length: 12"
Maximum Keyway Width: 1-1/4"
Largest Standard Post Capacity: 2-3/8"
Feeds, Range Variable: 002 to .008 IPS
Cutting Speed, Range: 8.5 to 20.6 FPM
Maximum Weight Piece Part: 2500 LBS
Distance, Floor to Table: 40-5/8"
