13/32” PULLMAX “X8” UNIVERSAL "QUICK" BEVELLER w/TOOLING

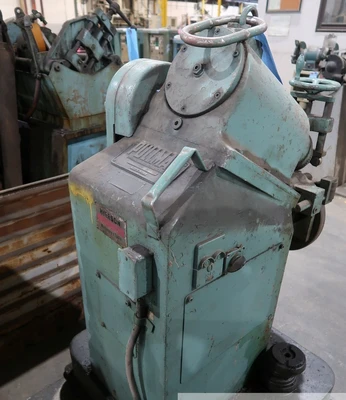

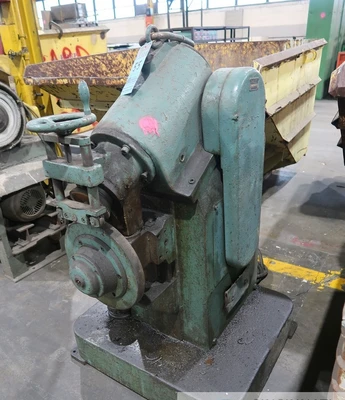

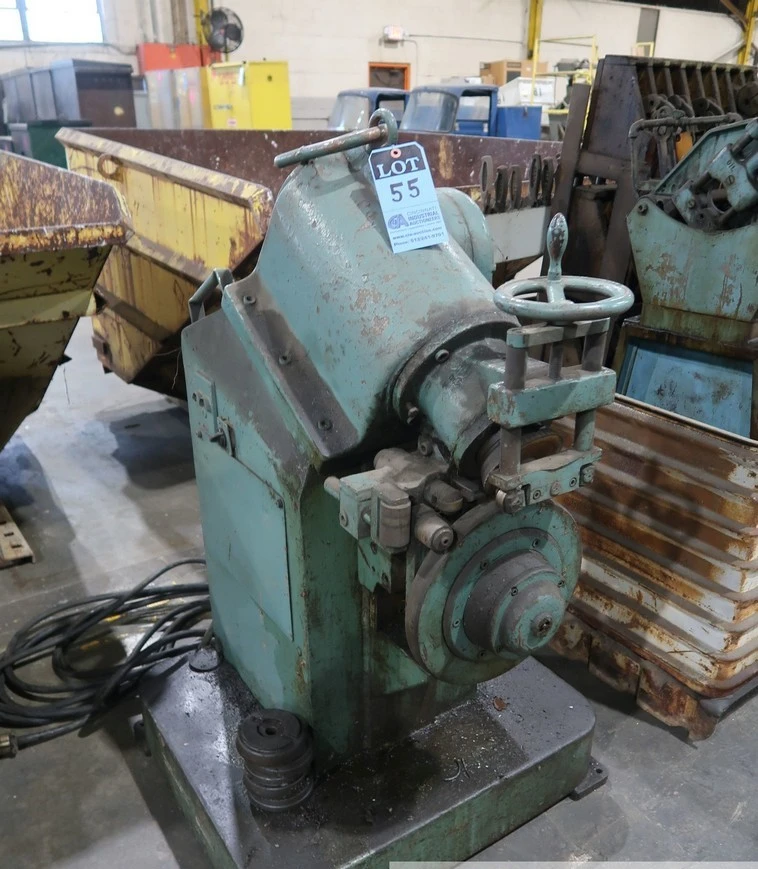

X8 PULLMAX UNIVERSAL "QUICK" BEVELLER

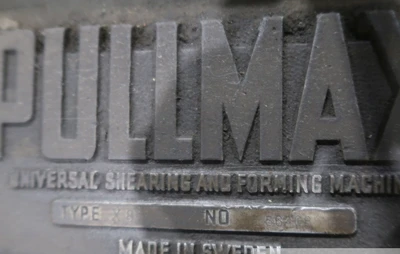

Serial No 56408, Model X8, Series "QUICK"
IDEAL APPLICATIONS: Cylindrical Shapes & Large
Steel Pipe Sections (prior to welding); Non-Slip
Floor Plates, Large Circles for Tank Ends, etc...

EQUIPPED WITH:

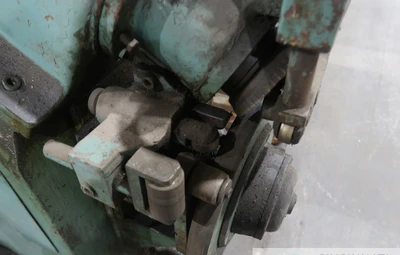

Tooling

CATALOGUE SPECIFICATIONS:
Bevel Width, Nominal 13/32"
Mild Steel & Non Ferrous Metals
@ (25 TON PSI):
30-Degree Groove Depth, Maximum 13/32"
37.5-Degree Groove Depth, Maximum 3/8"
45-Degree Groove Depth, Maximum 5/16"
Cutting Speed for Mild Steel 11 FPM
Stainless and Acid Resisting Steel
@ (38 TON PSI):
30-Degree V-Groove Depth, Maximum 5/16"
37.5-Degree V-Groove Depth, Maximum 9/32"
45-Degree V-Groove Depth, Maximum 1/4"
Cutting Speed for Stainless Steel 6 FPM
Main Motor, Horsepower 2 HP
Height to Cutting Level 31.5"
Overall Dimensions, W x D 31" x 34"
Overall Height 54"
Weight, Approximately 880 LBS
F.O.B. OUR WAREHOUSE
