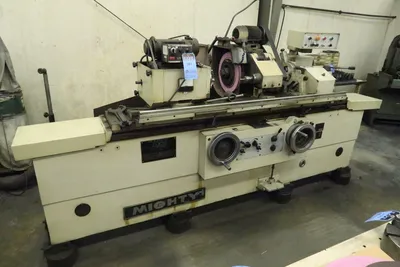

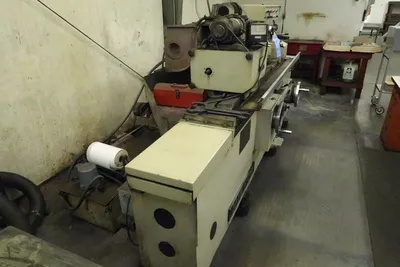

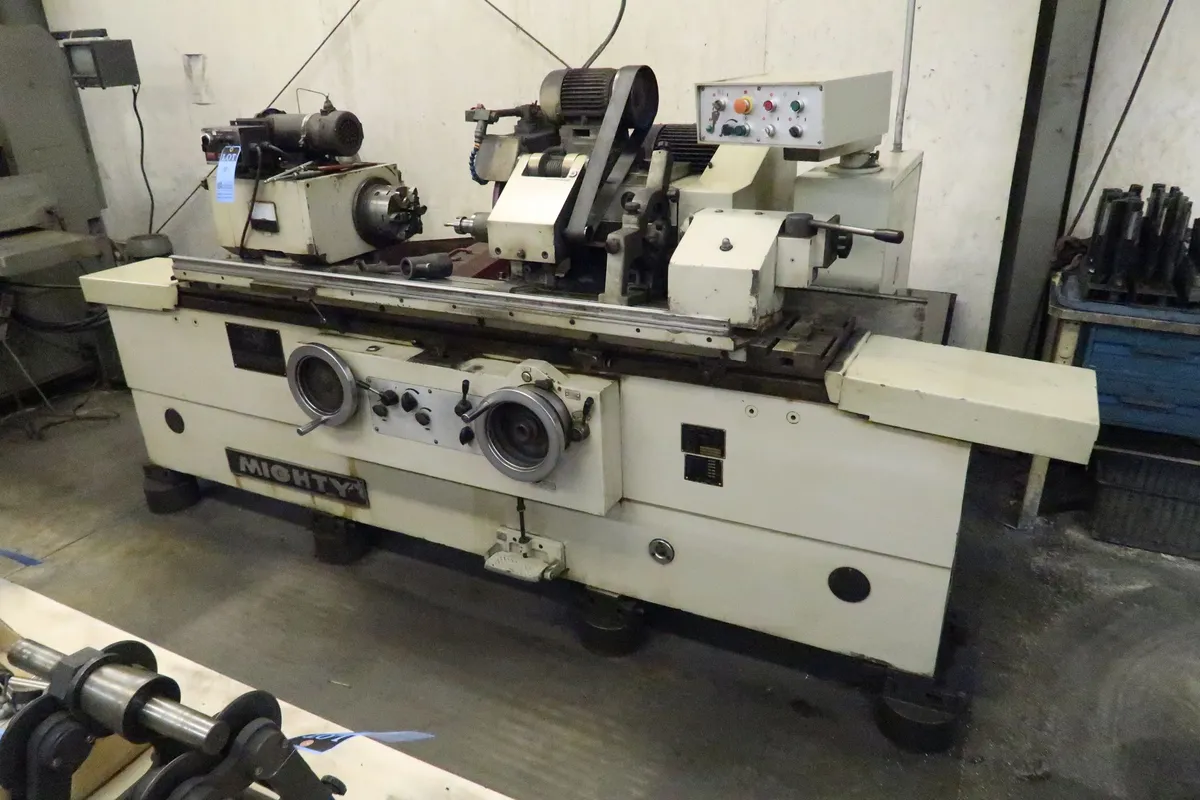

13" x 40" MIGHTY "MCG1340H" UNIVERSAL CYLINDRICAL GRINDER w/INTERNAL GRINDING SPINDLE

13" x 40" MIGHTY UNIVERSAL CYLINDRICAL GRINDER
w/SWING DOWN INTERNAL ATTACHMENT

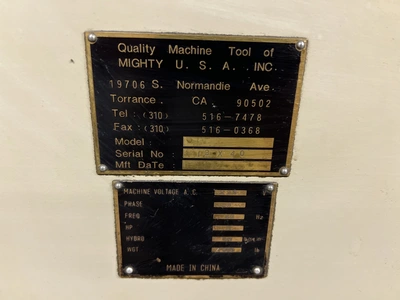

Serial No 13X40, Model MCG-1340H,

EQUIPPED WITH:

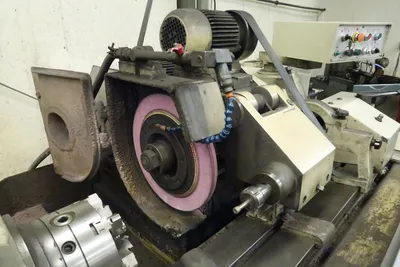

Internal Grinding Attachment (Swing-Down)

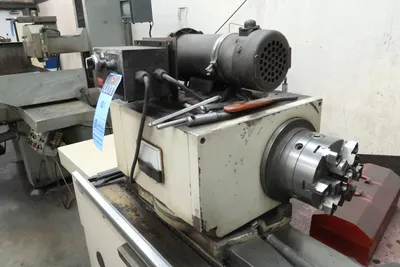

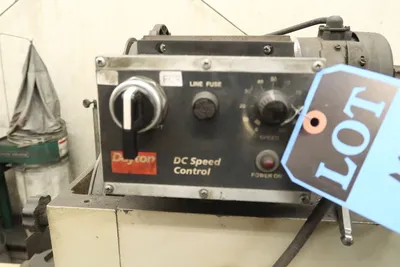

Dayton DC Drive Vari-Speed Workhead

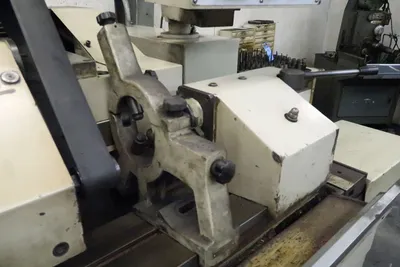

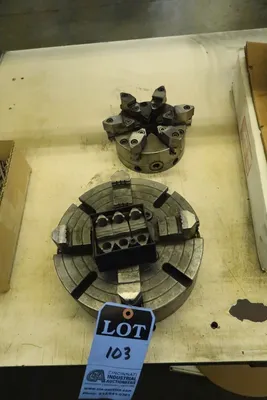

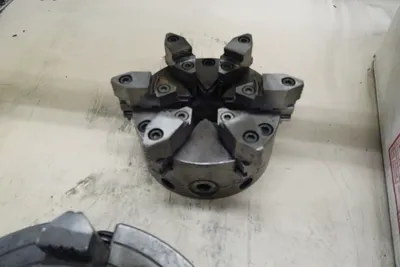

6" 6-Jaw Chuck w/Jaws - Steady Rest

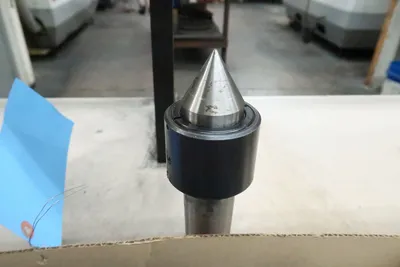

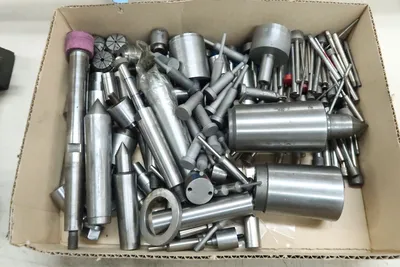

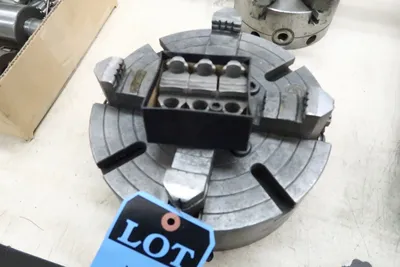

10" 4-Jaw Chuck - Tooling - Centers

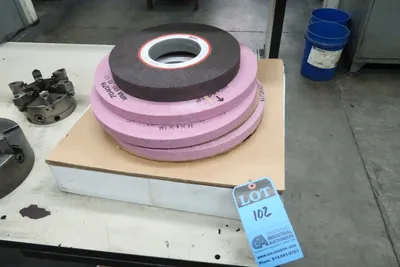

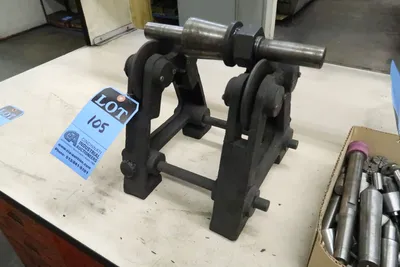

Wheel Balancing Fixture - Extra Grinding Wheels

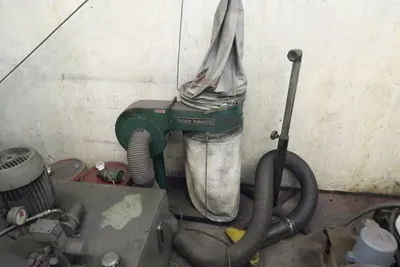

Coolant System & Dust Collector

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum .......... 13.5"
Grinding Diameter, Maximum .......... 13"
Distance Between Centers, Nominal .......... 40"
Grinding Wheel Diameter, Standard .......... 16"
Grinding Wheel Width, Standard .......... 2.5"
Grinding Wheel Hole Diameter .......... 8"
Wheelhead Swivel Angle .......... +/- 30-DEGREES
Table Swivel Angle .......... 3 to 7-DEGREES
Workhead Swivel Range .......... 90-DEGREES
Workhead and Tailstock Center Tapers .......... #5 MT
Grinding Wheel Speed .......... 1670 RPM
Workhead Spindle Speeds, Range .......... 28 to 280 RPM
Table Longitudinal Feeds, Infinite .......... 100 to 4000 MMPM
Overall Dimensions, L x W .......... 133" x 69"
Overall Height .......... 70"
Weight, Approximately .......... 9460 LBS
F.O.B. OUR WAREHOUSE
