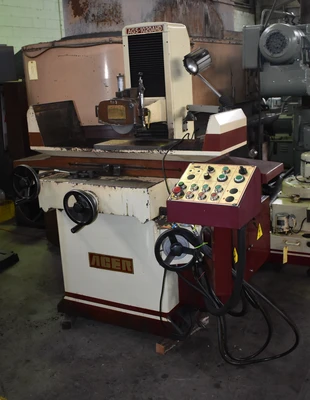

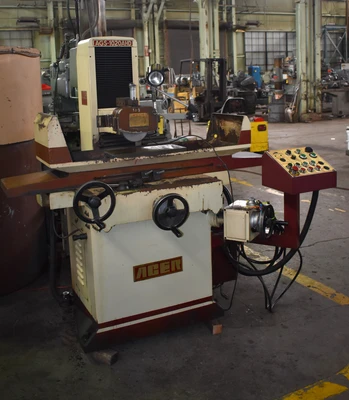

10" x 20" ACER AUTOMATIC HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER

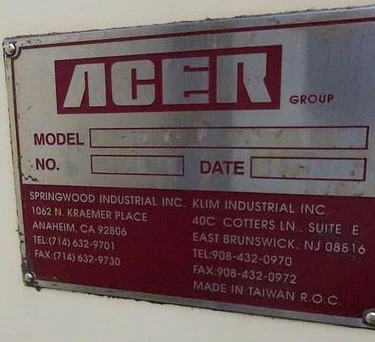

Serial No 971010, Model AGS-1020AHD,

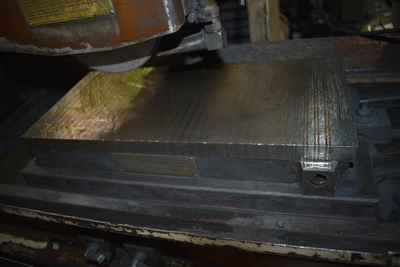

Magnetic Chuck

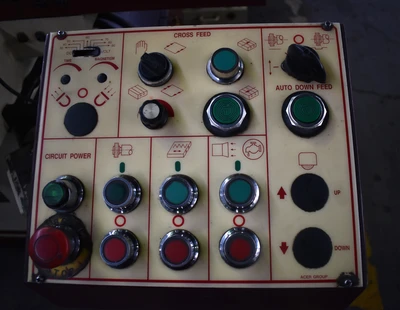

Incremental Power Down Feed
Parallel Grinding Wheel Dresser

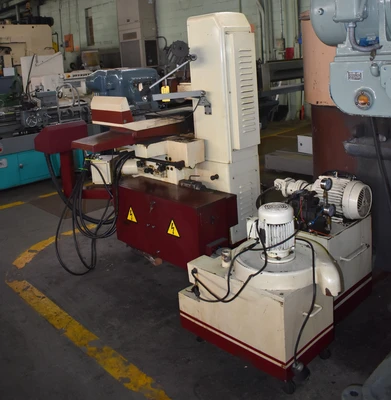

Coolant System (Tank & Pump)
Table Working Surface, W x L .......... 9" x 20"
Grinding Width Capacity, Maximum .......... 10"
Grinding Length Capacity, Maximum .......... 20"
Height Spindle Center to Table, Maximum .......... 19-1/2"
Table Load Capacity .......... 1000 LBS
Table Longitudinal, Power .......... 20-1/2"
Table Cross Travel .......... 11"
Grinding Wheel Diameter, Standard .......... 8"
Grinding Wheel Width, Standard .......... 0.5"
Grinding Wheel Hole Diameter .......... 1.25"
Grinding Spindle Speed .......... 3580 RPM
Table Longitudinal Feeds, Range .......... 16 to 80 FPM
Crossfeed Travel Feeds, Automatic .......... 0 to 1"
Spindle Auto Downfeed , Range .......... .0001 to .001 IPR
Spindle Horsepower .......... 2 HP
Hydraulic Motor Horsepower .......... 2 HP
Floor Space Required, .......... 5'6" x 6'
Weight, Approximately .......... 3580 LBS
F.O.B. OUR WAREHOUSE
Grinding Width Capacity, Maximum: 10"
Grinding Length Capacity, Maximum: 20"
Table Load Capacity: 1000 LBS
Table Longitudinal, Power: 20-1/2"
Table Cross Travel: 11"
Grinding Wheel Diameter, Standard: 8"
Grinding Wheel Width, Standard: 0.5"
Grinding Wheel Hole Diameter: 1.25"
Grinding Spindle Speed: 3580 RPM
Table Longitudinal Feeds, Range: 16 to 80 FPM
Crossfeed Travel Feeds, Automatic: 0 to 1"
Spindle Horsepower: 2 HP
Hydraulic Motor Horsepower: 2 HP
Floor Space Required,: 5'6" x 6'
Weight, Approximately: 3580 LBS
