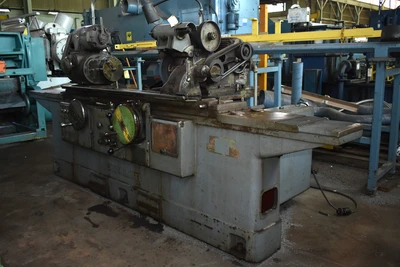

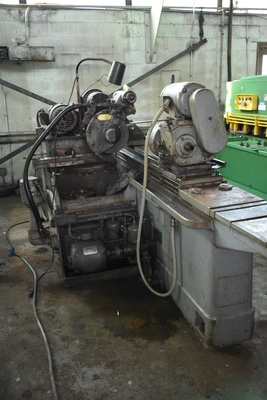

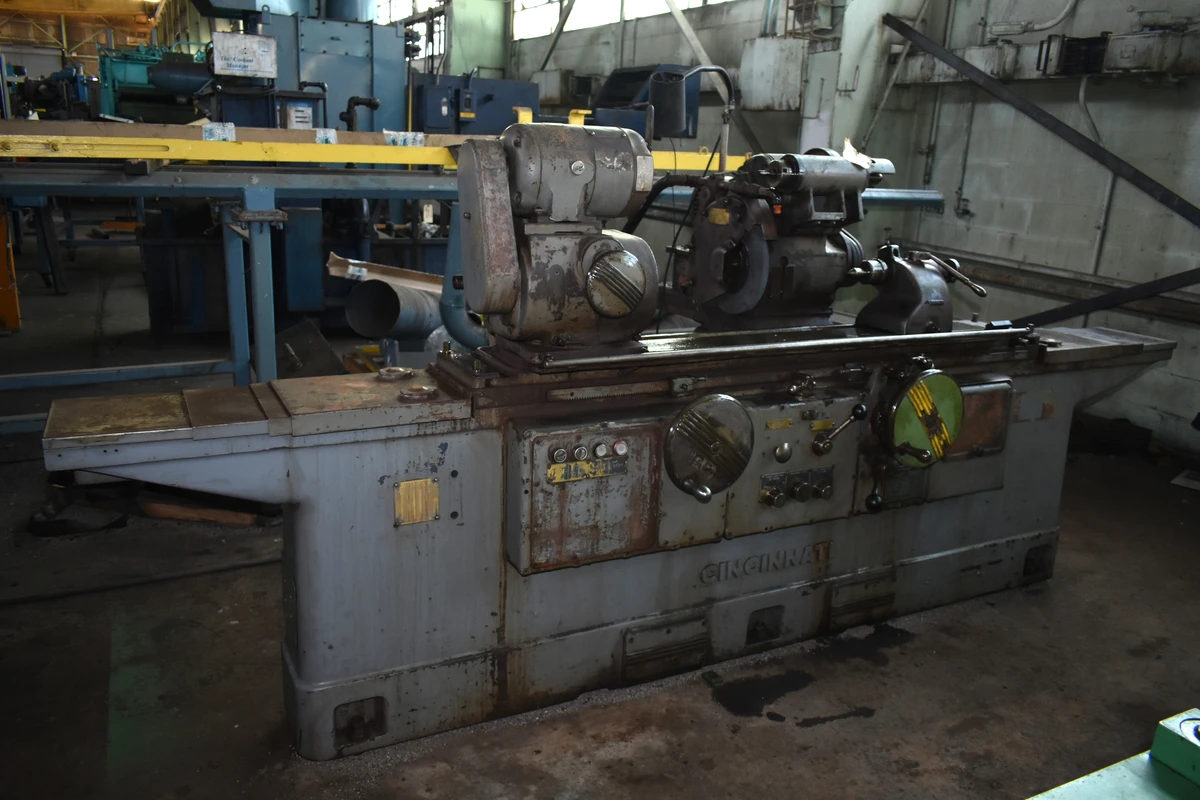

12" X 36" CINCINNATI-MILACRON "LL" UNIVERSAL CYLINDRICAL GRINDER w/SWING DOWN INTERNAL GRINDING SPINDLE ATTACHMENT

Swing Over Table, Maximum 12.9375"

Grinding Diameter, Minimum 0"

Grinding Diameter, Maximum 12"

Distance Between Centers, Nominal 36"

Grinding Wheel Diameter, Standard 14"

Grinding Wheel Width, Standard 1.5"

Grinding Wheel Hole Diameter 5"

Table Swivel Taper Toward Wheelhead 4.5" TPF

Table Swivel Taper Away Wheelhead 1.250" TPF

Headstock Swivel Angle Toward Wheelhead 90-DEGREES

Headstock Swivel Angle Away Wheelhead 30-DEGREES

Lower Grinding Wheelhead Swivel Range 90-DEGREES

Upper Grinding Wheelhead Swivel Range 30-DEGREES

Workhead and Tailstock Center Tapers #9 B&S

Workhead Spindle Speeds, Range 50 TO 500 RPM

Table Longitudinal Feeds, Infinite 3 TO 240 IPM

Grinding Wheelhead Spindle Motor 3 HP

Workhead Motor, Horsepower 1 HP AC

Floor Space Required, L x D 12'9" X 5'6"

F.O.B. OUR WAREHOUSE
