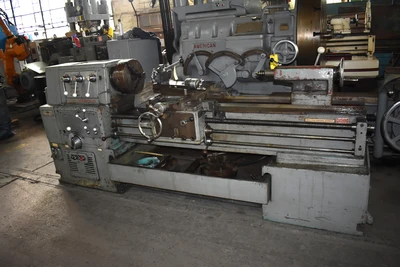

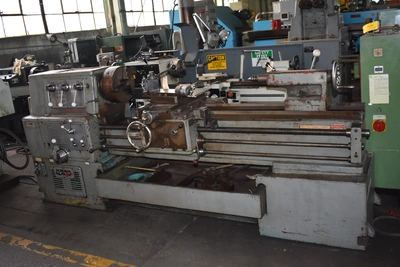

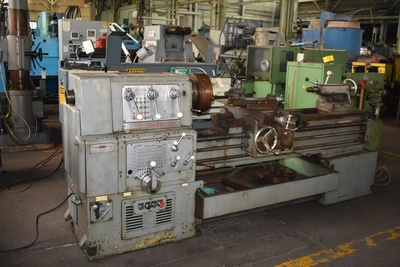

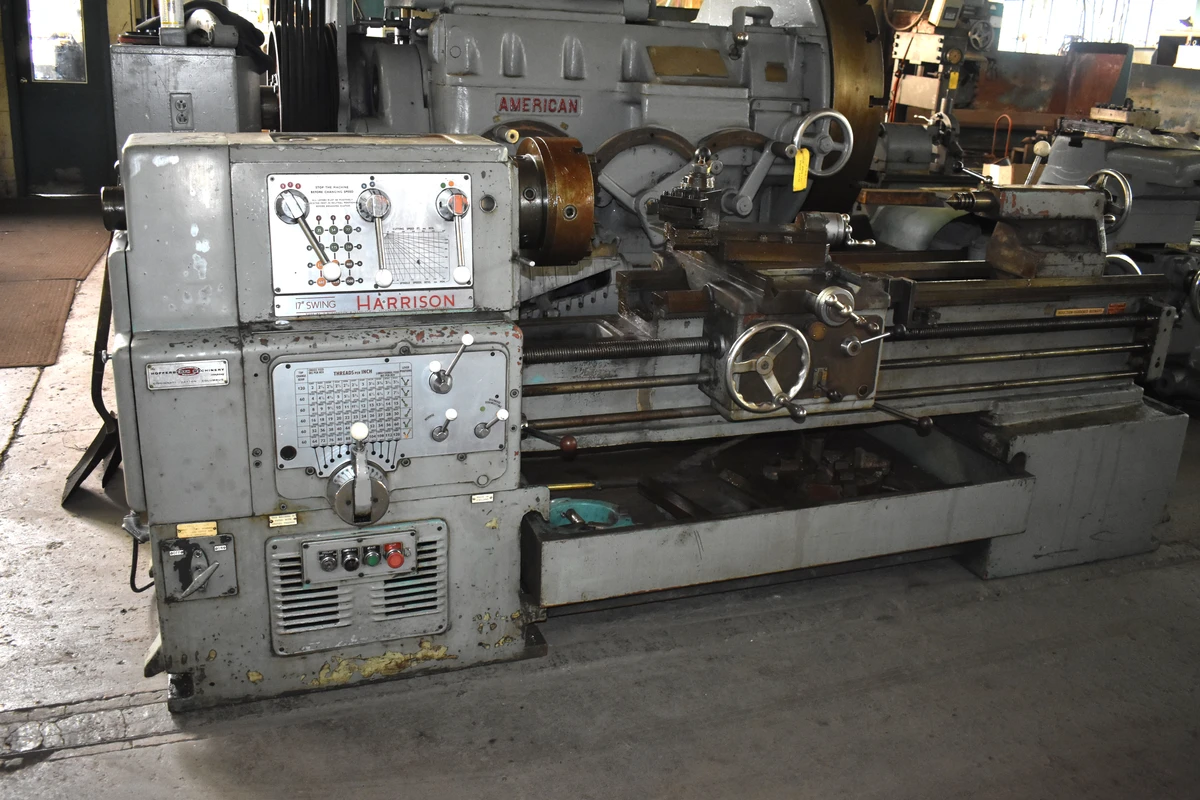

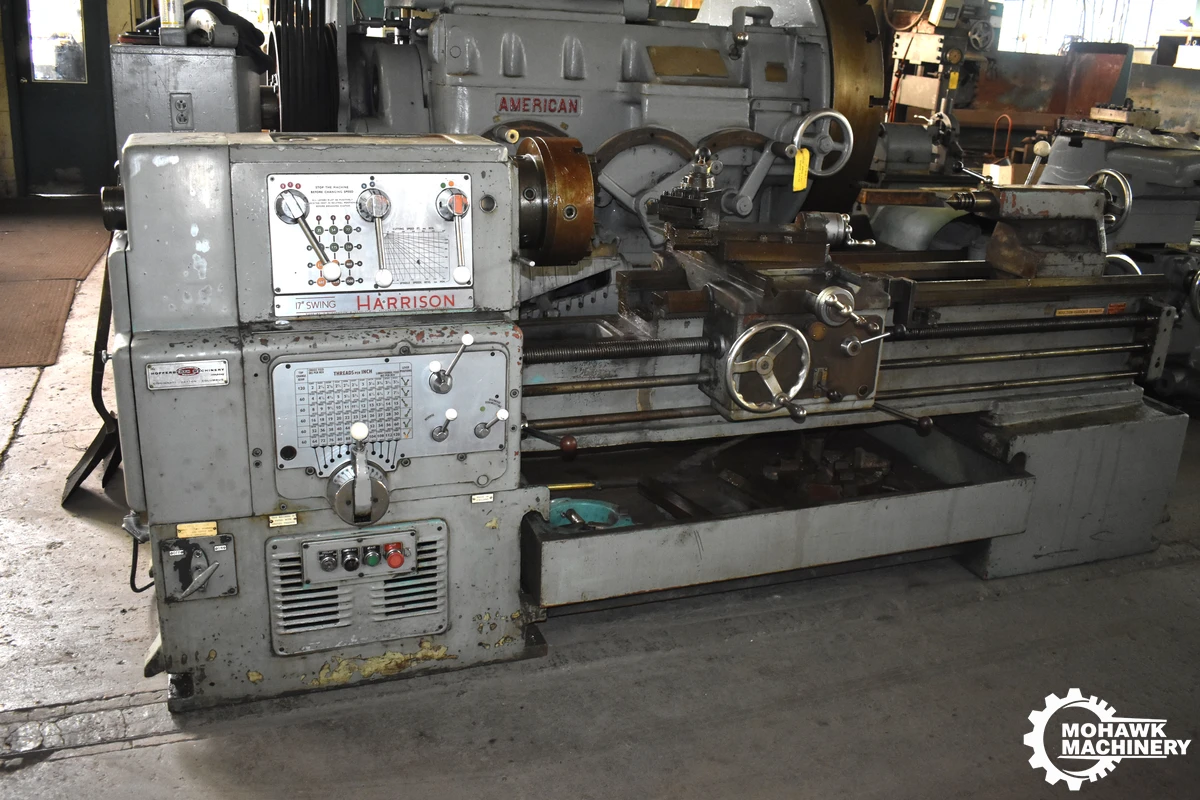

17/26" X 58" HARRISON “17” GEARED HEAD GAP-BED ENGINE LATHE w/(2) CHUCKS - STEADY REST

17/26" x 58" HARRISON GEARED-HEAD
GAP-TYPE ENGINE LATHE
Serial No. 119138, Model 17"

EQUIPPED WITH:
12" 3-Jaw Chuck w/Jaws

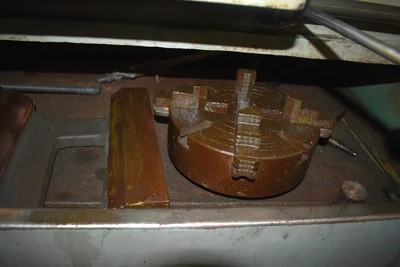

12" 4-Jaw Chuck w/Jaws

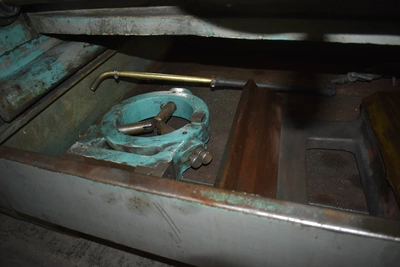

7" Steady Rest - Tool Post
Induction Hardened Ways

CATALOG SPECIFICATIONS:
Swing Over Bed Ways, Rated .......... 17"
Swing Over Bed Ways, Actual .......... 17.375"
Swing Thru Gap .......... 26"
Swing Over Carriage Wings .......... 17.375"
Swing Over Cross-Slide .......... 9.875"
Length Of Gap In Front Of Face Plate .......... 10-1/2"
Distance Between Centers .......... 58"
Hole Thru Spindle .......... 3-1/16"
(12) Spindle Speeds, Range .......... 35 to 1500 RPM
(66) Longitudinal Carriage Feeds .......... .0019 to .057 IPR
(66) Cross Carriage Feeds, Range .......... .0009 to .028 IPR
(66) Thread Changes, Range .......... 2 to 120 TPI
Cross-Slide Cross Feed Travel .......... 12.75"
Compound Rest Travel .......... 8.5"
Tailstock, Spindle Taper .......... #4 MT
Tailstock, Spindle Diameter .......... 2.375"
Tailstock, Spindle Travel .......... 6.5"
Motor, Horsepower .......... 10 HP
F.O.B. OUR WAREHOUSE
Swing Thru Gap: 26"
Swing Over Carriage Wings: 17.375"
Swing Over Cross-Slide: 9.875"
Distance Between Centers: 58"
Hole Thru Spindle: 3-1/16"
(12) Spindle Speeds, Range: 35 to 1500 RPM
(66) Longitudinal Carriage Feeds: 0019 to .057 IPR
(66) Thread Changes, Range: 2 to 120 TPI
Cross-Slide Cross Feed Travel: 12.75"
Compound Rest Travel: 8.5"
Tailstock, Spindle Taper: #4 MT
Tailstock, Spindle Diameter: 2.375"
Tailstock, Spindle Travel: 6.5"
Motor, Horsepower: 10 HP
