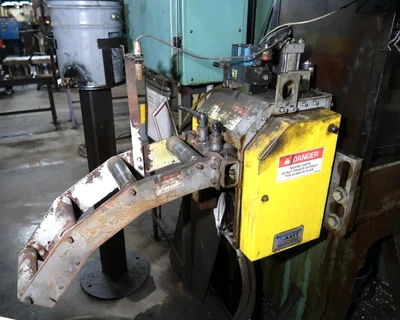

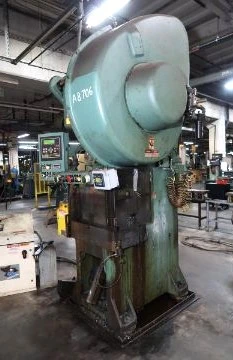

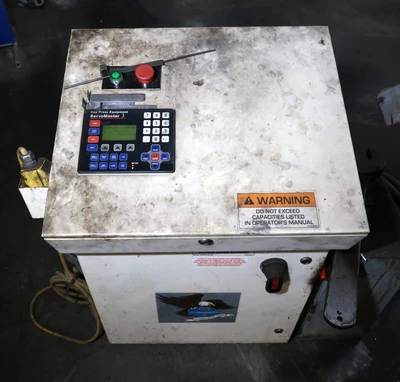

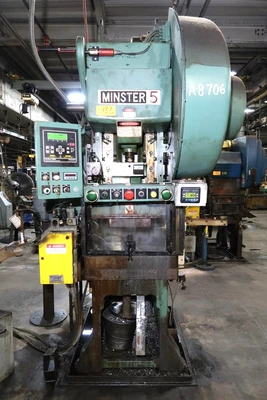

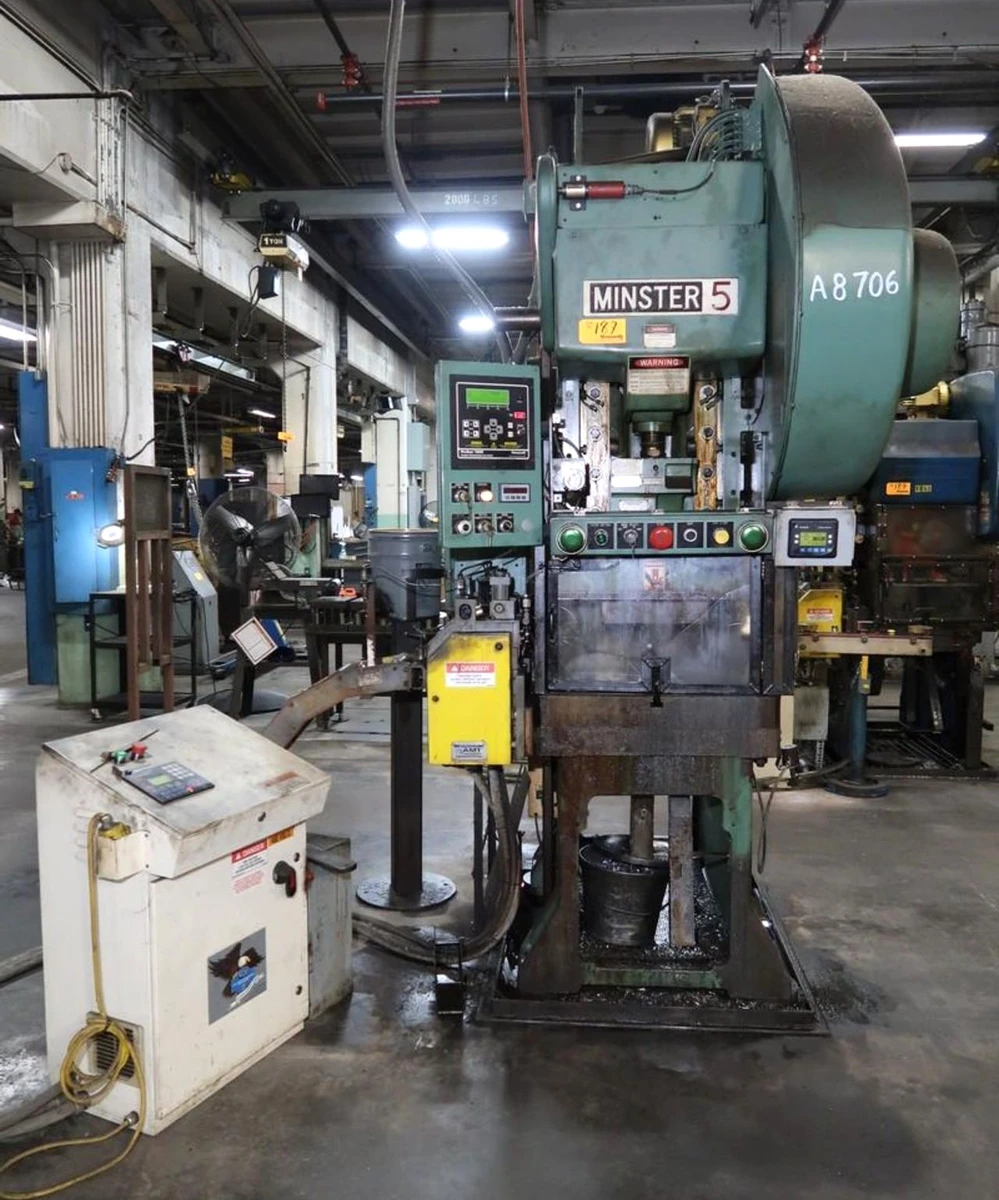

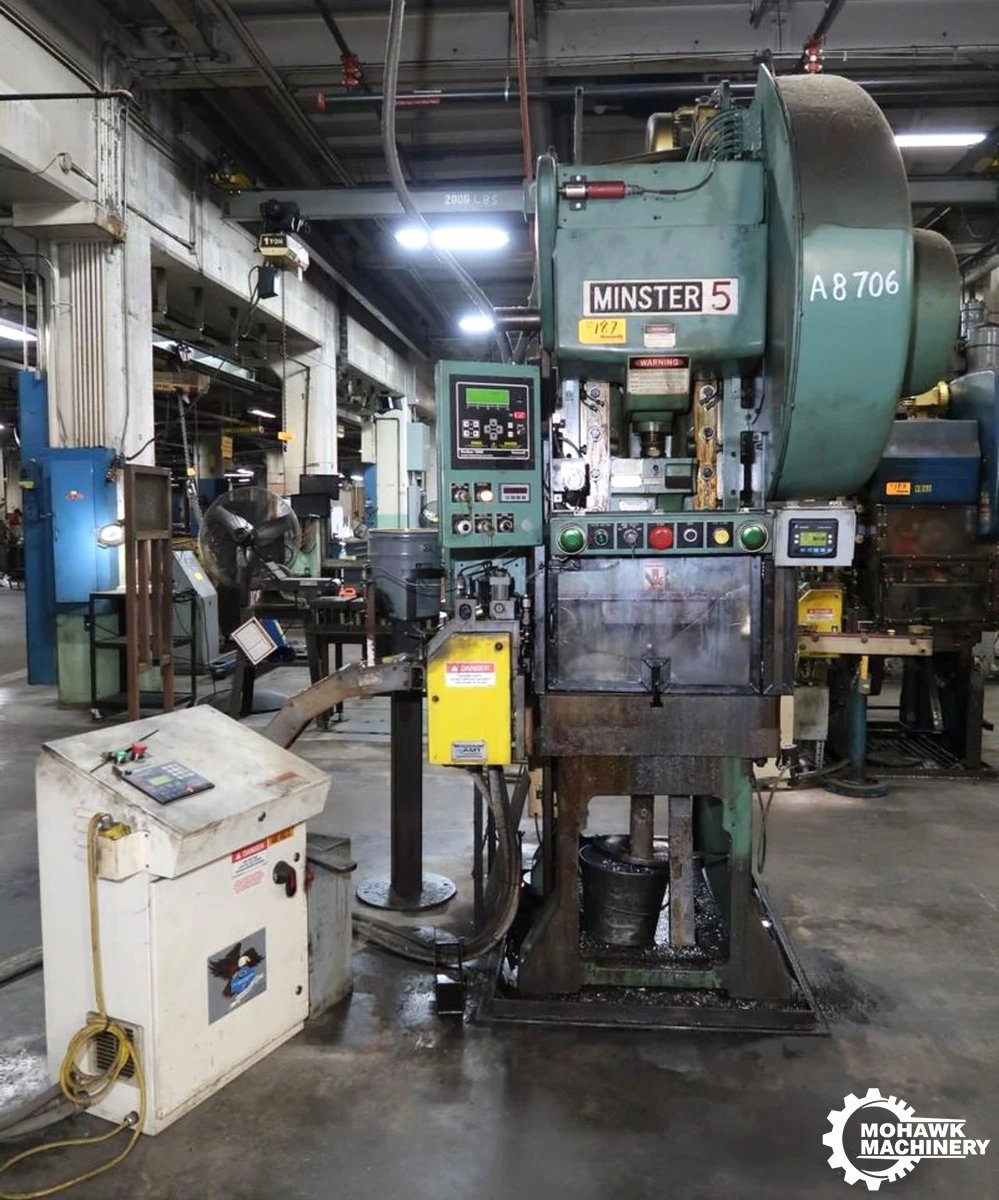

45 TON MINSTER "59S" FIXED-BASE GAP FRAME PRESS w/COE SERVO-FEED - 28" X 18" BOLSTER - 120 SPM

Tonnage Capacity, Heavy-Duty Rating .......... 45 TON

Stroke Length .......... 3"

Shut Height To Bed, (SDAU) .......... 15.75"

Shut Height To Bolster, (SDAU) .......... 12"

Slide Adjustment .......... 2.5"

Slide Area, L-R x F-B .......... 24" x 14"

Bed Area, L-R x F-B .......... 28" x 18"

Bed Opening, L-R x F-B .......... 16" x 12"

Diameter Intersecting Circle in Bed .......... 14"

Bolster Area, L-R x F-B .......... 28" x 18"

Bolster Thickness .......... 3.75"

Width Of Opening In Back .......... 13.5"

Throat Depth, Slide Center to Frame .......... 9.5"

Strokes Per Minute .......... 120 SPM

Motor Horsepower/RPM .......... 5 HP/1200 RPM

Press Weight, Approximately .......... 10000 LBS

F.O.B. OUR WAREHOUSE
Tonnage Capacity, Heavy-Duty Rating: 45 TON
Stroke Length: 3"
Slide Adjustment: 2.5"
Bolster Thickness: 3.75"
Strokes Per Minute: 120 SPM
Motor Horsepower/RPM: 5 HP/1200 RPM
Press Weight, Approximately: 10000 LBS
