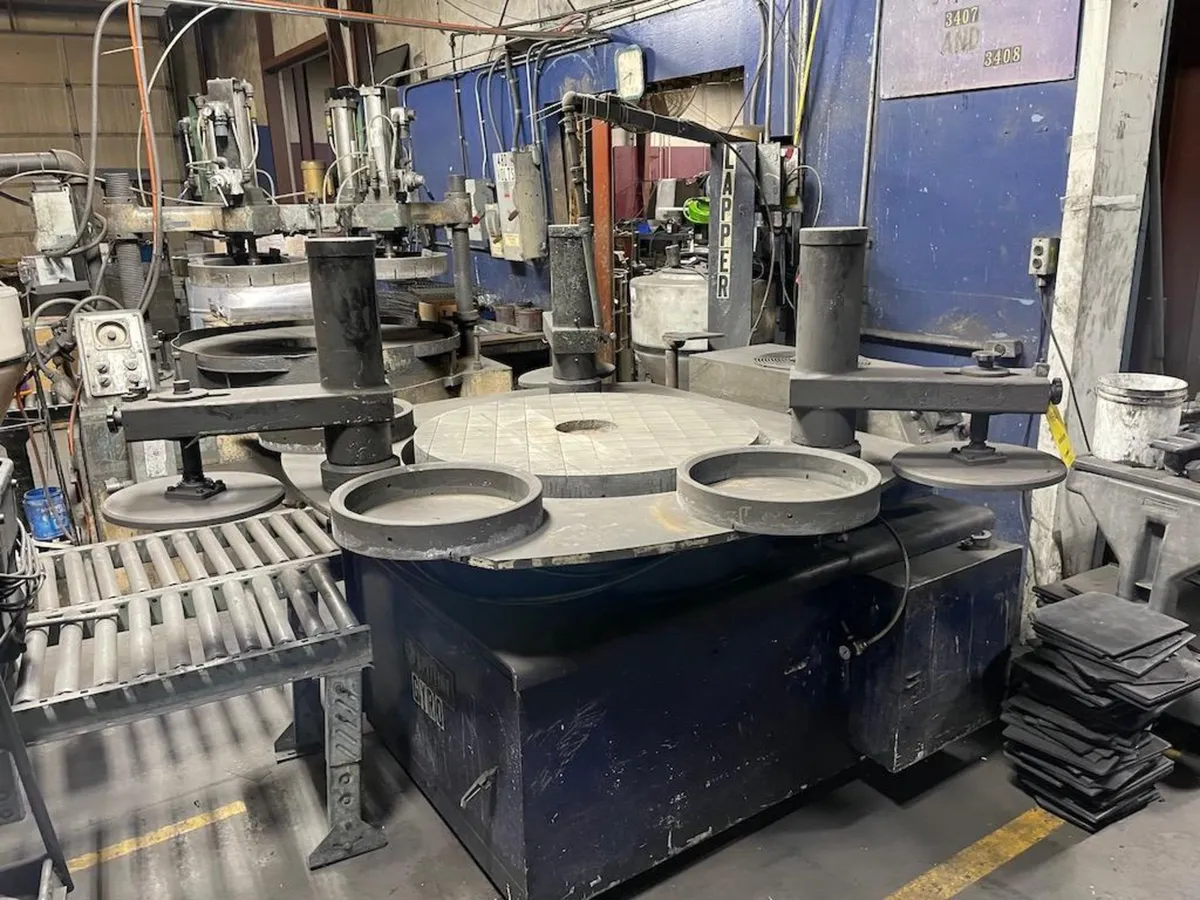

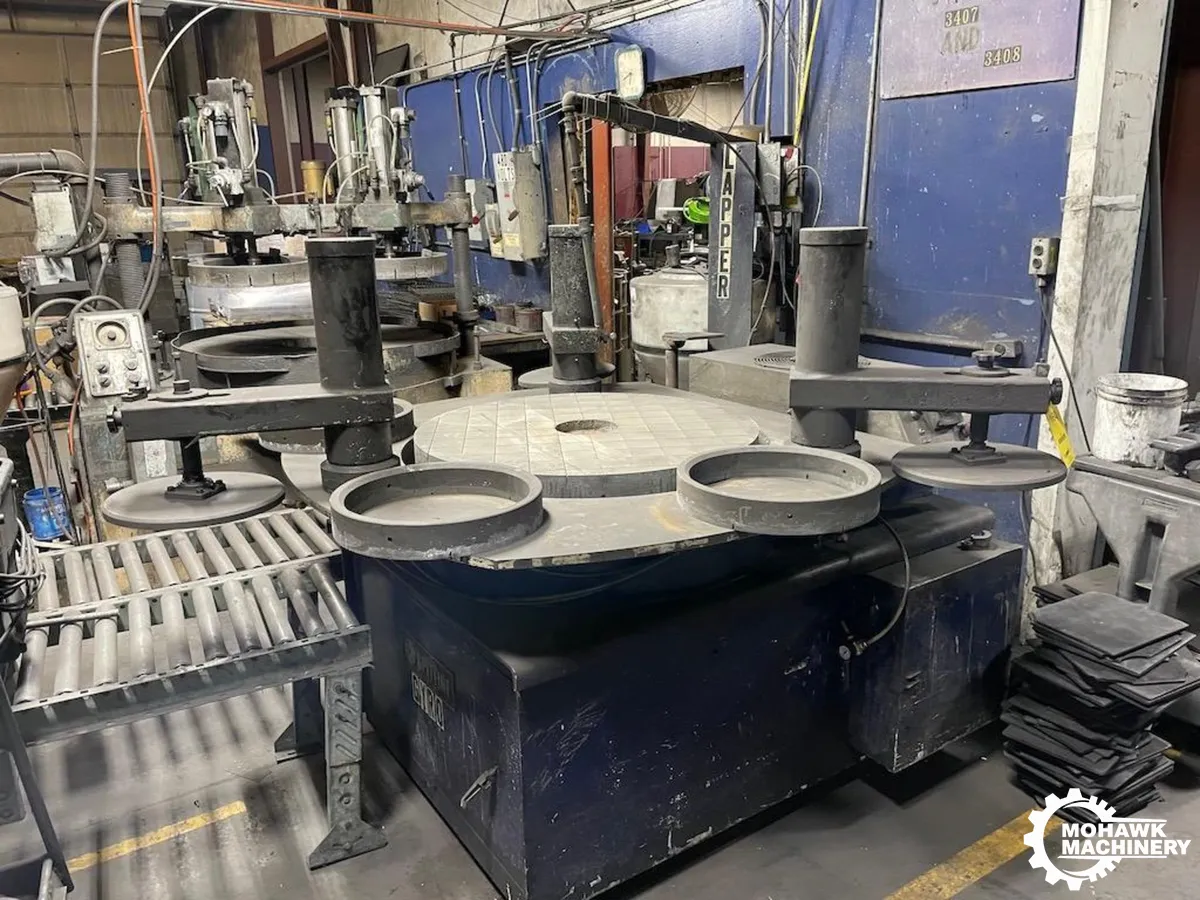

36" SPITFIRE "SP-GYR-36PN GYRO-MATIC" SINGLE-SIDE ABRASIVE LAPPER w/RETAINING RINGS

36" SPITFIRE "GYROMATIC" SINGLE-SIDE
ABRASIVE LAPPER
Model SP-GYR-36PN, Serial No 8605-36PN-2391,

EQUIPPED WITH:
(3) Pneumatic Pressure Control Arms
(3) Retaining Rings
Timer

CATALOG SPECIFICATIONS:
Plate Diameter .......... 36"
Plate Thickness .......... 3"
Number of Retaining Rings .......... 3
Retaining Rings, Outside Diameter .......... 16.5"
Retaining Rings, Inside Diameter .......... 14.5"
Working Height .......... 37.5"
Plate Speed .......... 58 RPM
Motor Horsepower .......... 5 HP
Overall Dimensions, L x W .......... 66" x 56"
Overall Height .......... 49.5"
Weight Approximately .......... 3500 LBS
F.O.B. OUR WAREHOUSE
Plate Diameter: 36"
Plate Thickness: 3"
Number of Retaining Rings: 3
Retaining Rings, Outside Diameter: 16.5"
Retaining Rings, Inside Diameter: 14.5"
Working Height: 37.5"
Plate Speed: 58 RPM
Motor Horsepower: 5 HP
Overall Height: 49.5"
Weight Approximately: 3500 LBS
