12" x 16" DOALL "C80" AUTOMATIC HORIZONTAL BANDSAW w/6' AUTOMATIC STOCK-FEED TABLE

12" x 16" DOALL "C80" AUTOMATIC HORIZONTAL BANDSAW w/6' AUTOMATIC STOCK-FEED TABLE

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$9,950.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Band Saws
Manufacturer:
DOALL
Model:
C80
Stock #:
29975
Status:
For Sale

Description

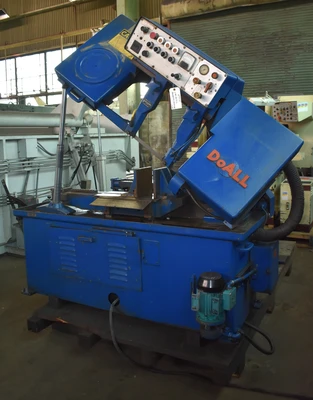

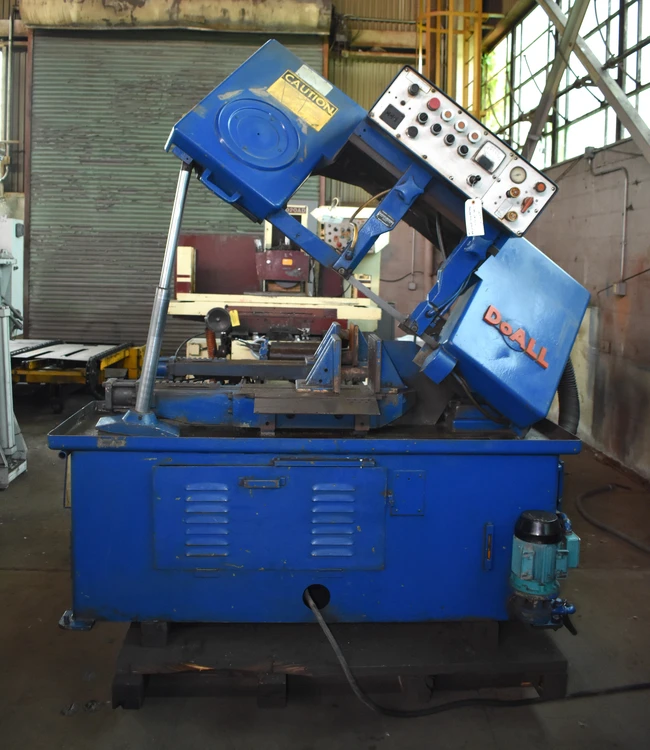

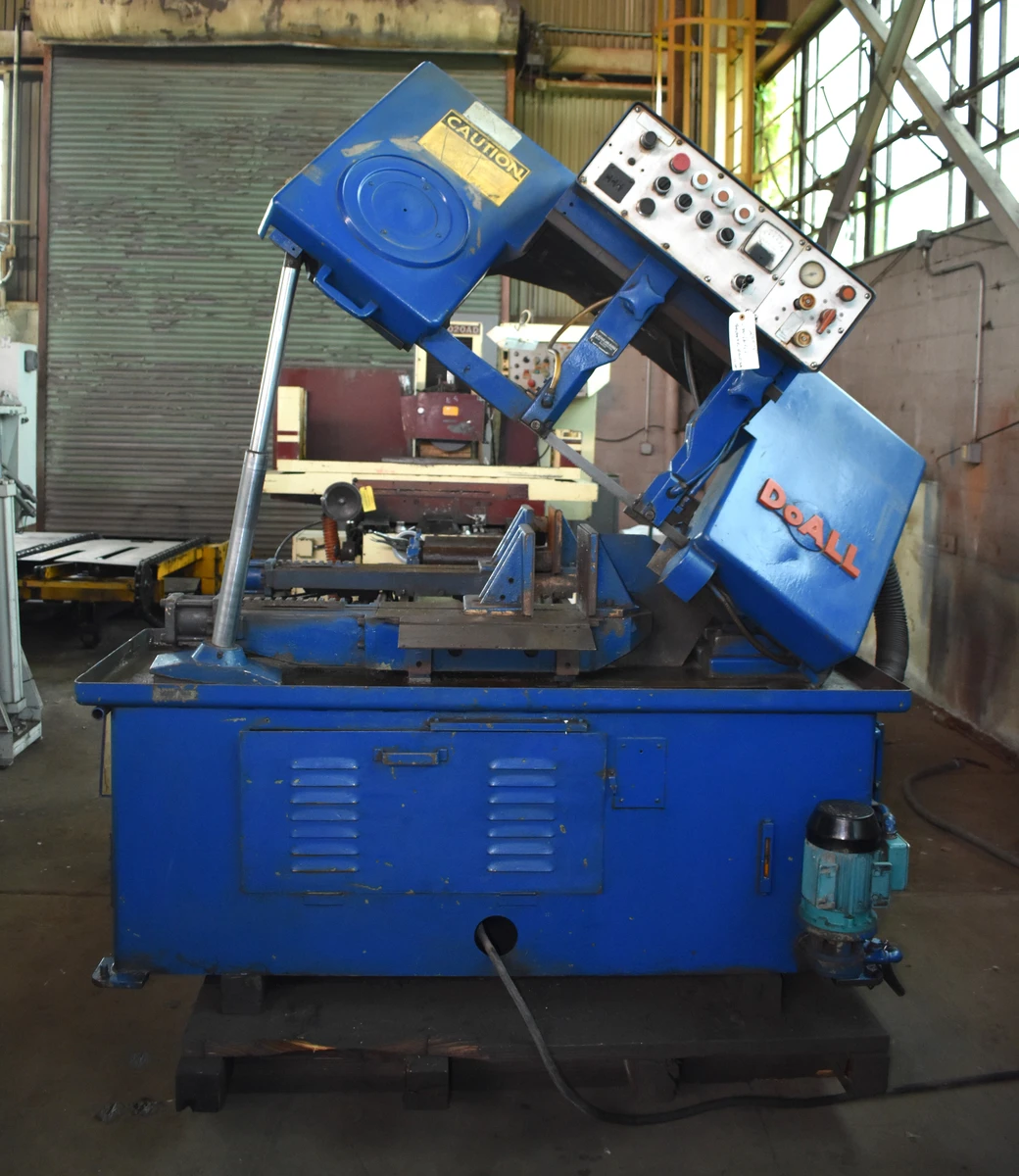

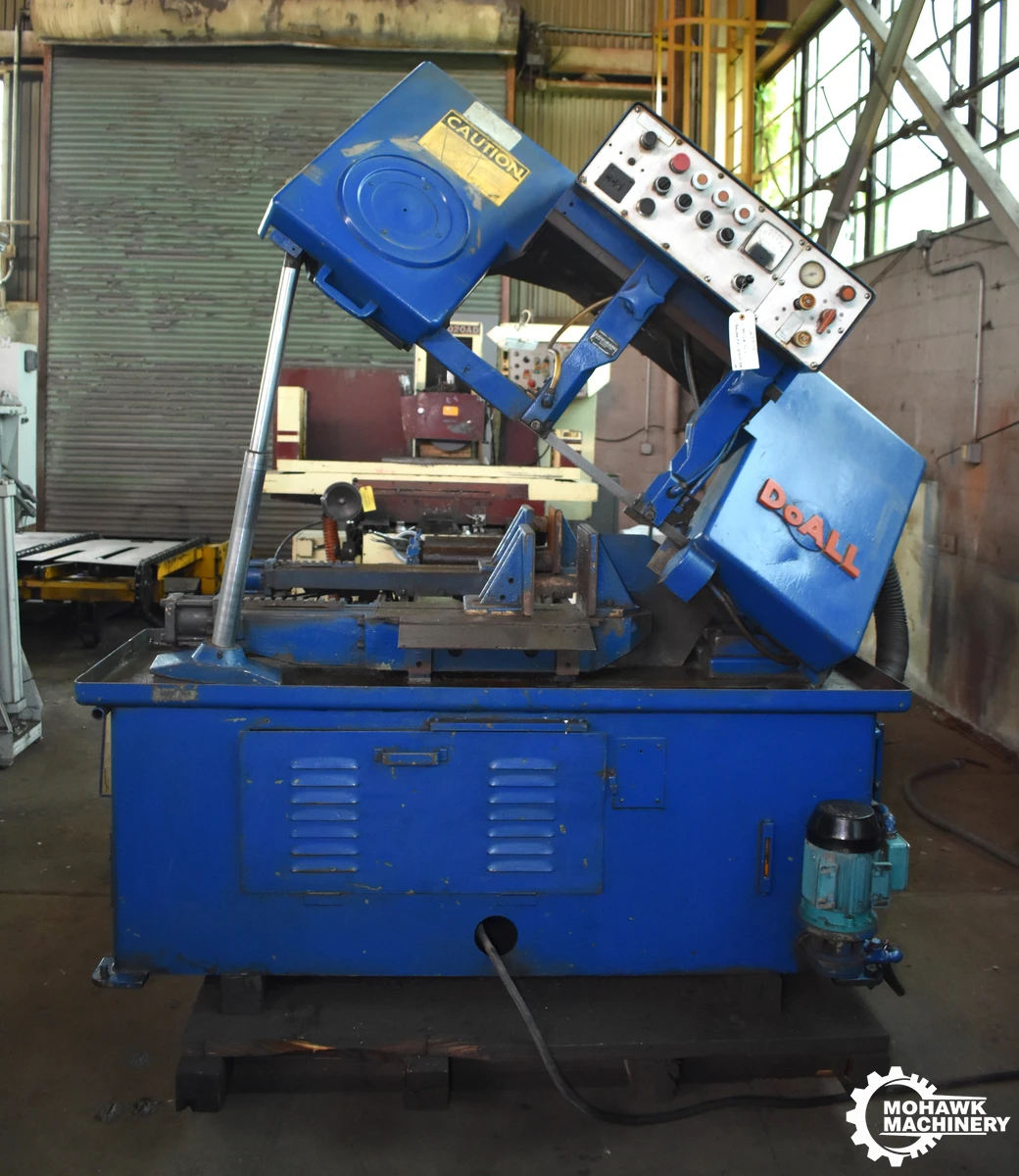

C80 DOALL AUTOMATIC HORIZONTAL BAND SAW

Serial No. 190-75725, Model C80

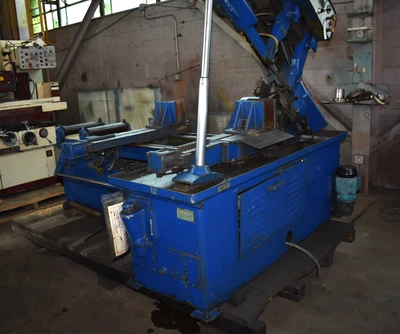

6' Automatic Hydraulic Stock-Feed Table

Hydraulic Stock-Feeding and Clamping Vises

Hydraulic Band Saw Up-Feed & Down-Feed

Automatic Hydraulic Band Tension

Built-in Coolant System

Rect-Cap (H)12"304.8 mm
Rect-Cap (W)16"406.4 mm
Rounds-Cap12.75"323.85 mm
Power5 hp3.7 kW
Type (Auto, Manual, Semi)AutoAuto
Blade Width1"25.4 mm
Blade Thickness0.035"0.889 mm
Blade Length144"3,657.6 mm
Dimensions21' x 6'1'' x 7'4''21' x 6'1'' x 7'4''
Weight4500 LBS4500 LBS

Maximum Capacity, Round Stock 12-3/4"

Maximum Capacity, Flat Stock 12" x 16"

Band Length 144"

Band Width 1"

Band Thickness .035"

Band Speeds, Variable 85 to 450 FPM

Band Carrier Wheels, Diameter 16"

Motor, Horsepower 5 HP

Floor Space w/Stock-Feed Table, L x W 21' x 6'1"

Overall Height 7'4"

Weight, Approximately 4500 LBS

F.O.B. OUR WAREHOUSE
