32 TON MINSTER "B1-32" FLYWHEEL-TYPE HIGH-SPEED FIXED BASE GAP-FRAME PRESS w/24A U.S. SLIDE FEEDER - 24” X 15” BOLSTER - 225 TO 450 SPM
Have one to sell?
$14,500.00 USD
ConditionUsed
1 available

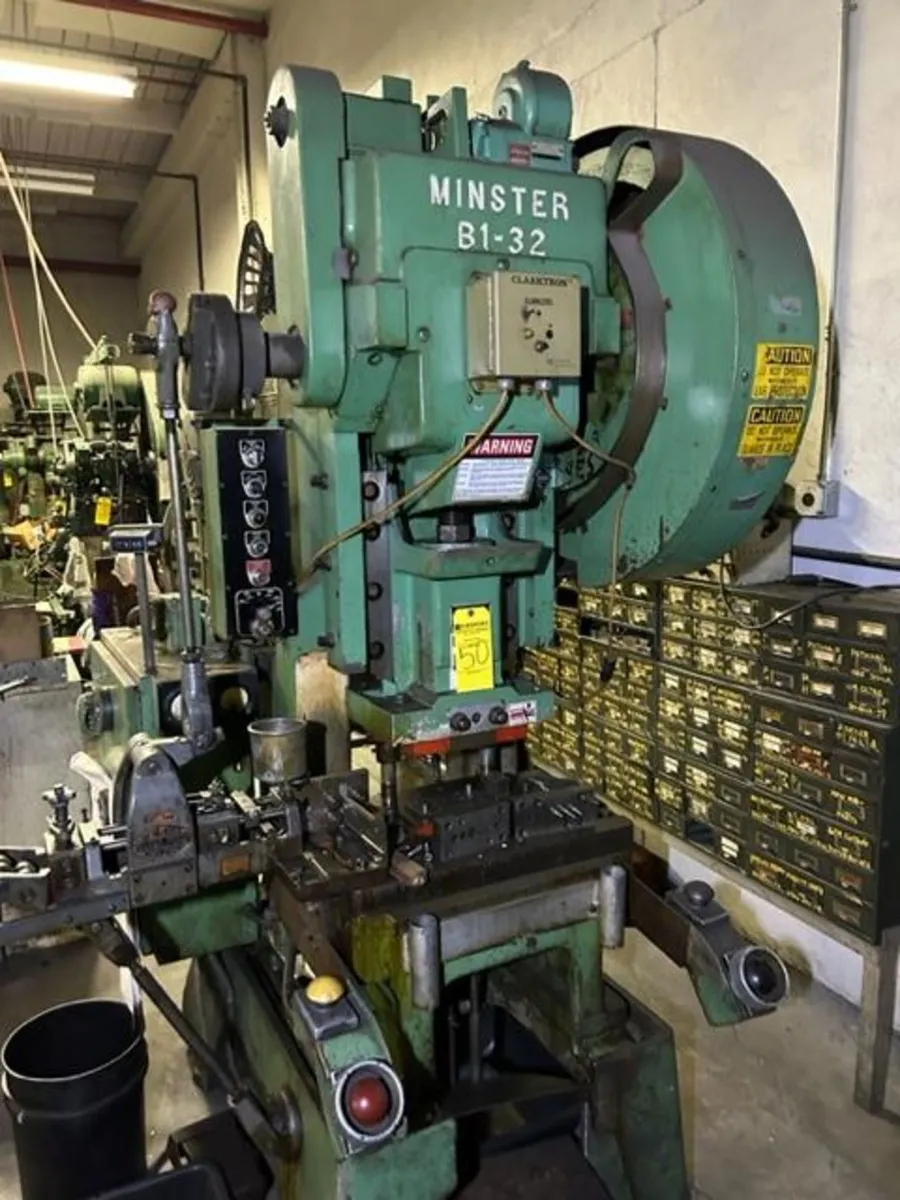

32 TON MINSTER HIGH-SPEED FIXED BASE
GAP-FRAME PRESS

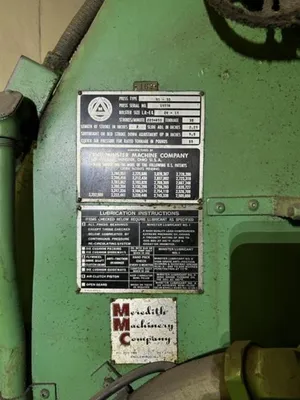

Serial No B1-32-18559, Model B1-32,
Air Clutch & Brake
Flywheel Type Drive w/7.5 HP Motor

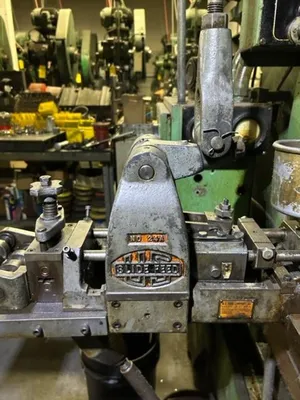

24A U.S. Slide Feeder
Dual Palm Button Controls
Tonnage Capacity 32 TON
Stroke Length 2"
Shut Height To Bed, (SDAU) 9.5"
Ram Adjustment 2.25"
Slide Area, L-R x F-B 14" x 9.5"
Bed Area, L-R x F-B 24" x 15"
Bolster Thickness 2.5"
Bed Opening, L-R x F-B 12" x 9"
Throat Depth 8"
Width Of Opening In Back 11"
Strokes Per Minute, Variable 225 to 450 SPM
Motor Horsepower 7.5 HP
Floor Space Base, F-B x R-L 49" x 32"
Overall Height 100"
Weight, Approximately 5700 LBS
F.O.B. OUR WAREHOUSE
